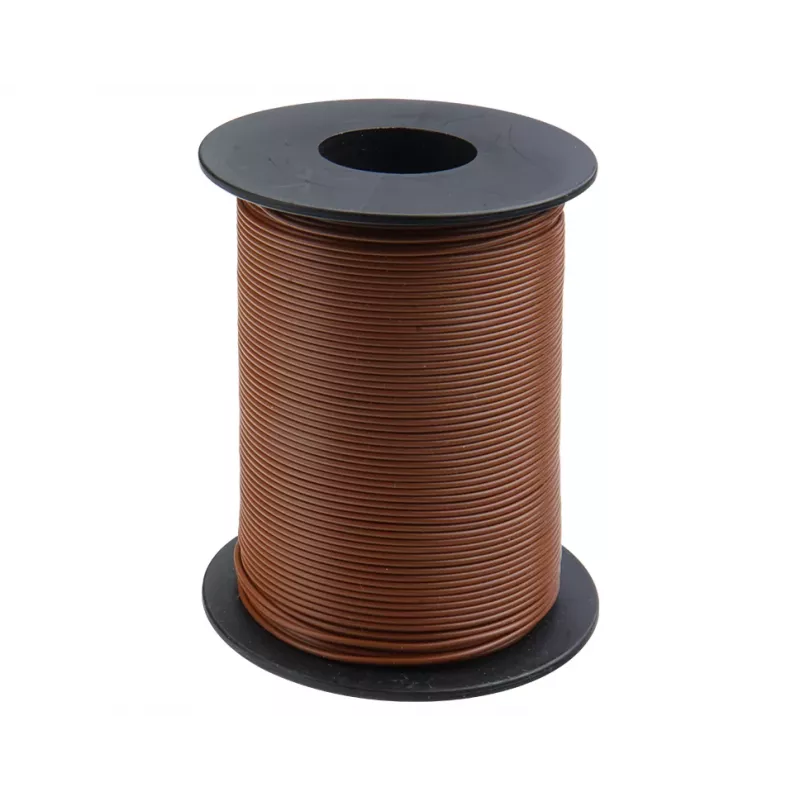

Donau Elektronik 119-18 Cable flexible hilo de conexión 1x0,14mm² marrón 100m

With a conductor resistance of just 138 Ohm/km, this 100-metre reel of fine-stranded copper wire ensures minimal signal loss across your most demanding low-voltage projects. The Donau Elektronik 119-18 is a single-core hook-up wire with a 0.14 mm² cross-section, ideal for internal wiring, electronics prototyping, model building, and control systems.

Overview

This stranded hook-up wire features a bare copper conductor with PVC insulation, rated for 300 V and operating temperatures from -30°C to +70°C. The brown jacket provides clear colour coding for easy identification in complex circuits. Supplied on a convenient 100 m reel, it offers excellent flexibility and ease of routing in tight spaces.

What stands out

• Fine-stranded copper conductor for superior flexibility and fatigue resistance
• Compact 1.2 mm outer diameter fits densely packed enclosures
• RoHS compliant PVC insulation for safety and durability
• Approximate current rating of 1.5 A supports a wide range of low-power applications
• Equivalent to 26 AWG, perfect for breadboards and PCB connections

Technical details

• Product Type: Stranded Hook-Up Wire
• Number of Cores: 1
• Conductor Material: Copper
• Conductor Cross-Section: 0.14 mm²
• Wire Gauge (AWG Equivalent): Approx. 26 AWG
• Insulation Material: PVC (Polyvinyl Chloride)
• Wire Colour: Brown
• Length: 100 m
• Rated Voltage: 300 V
• Temperature Range: -30°C to +70°C
• Outer Diameter (Approx.): 1.2 mm
• Conductor Stranding: Fine-stranded
• Max. Current Rating (Approx.): 1.5 A
• Conductor Resistance (Approx.): 138 Ohm/km
• Application: Internal wiring, electronics, model building, control systems
• Packaging: Reel
• Compliance: RoHS Compliant

Our verdict

A dependable, flexible wire for hobbyists and professionals alike. The generous 100 m length and low resistance make it a cost-effective choice for repetitive wiring tasks.
