Draka UC900 HS23 Cat.7 SFTP PiMF cable de red 250m naranja LSZH

Network installers and data center technicians working on high-density backbone cabling in office risers need a cable that combines 10 Gigabit performance with fire safety. The Draka UC900 HS23 bulk cable delivers exactly that: a 250-meter reel of Cat.7 SFTP/PiMF cable with an orange LSZH jacket, ready to be pulled through conduits and terminated on-site. Its four individually foil-shielded pairs and overall braid provide superior alien crosstalk resistance, making it ideal for demanding 10GBASE-T environments.

Key specifications

• Category: Cat.7 (ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2)

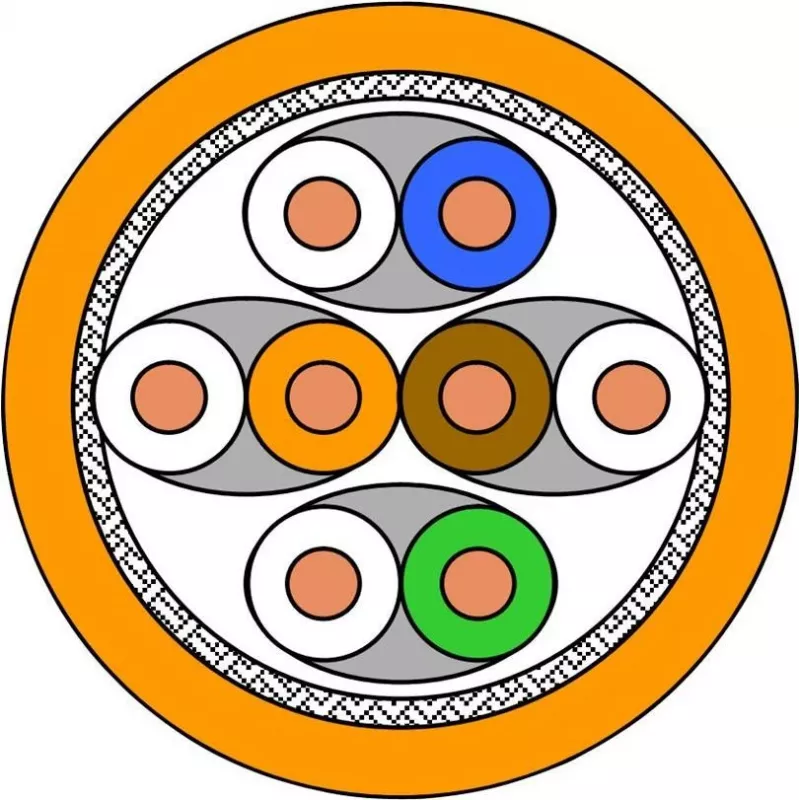

• Shielding: SFTP (Screened Foiled Twisted Pair) with PiMF (Pairs in Metal Foil)
• Length: 250 m on a spool
• Conductor: Bare copper, solid, 23 AWG (4 pairs)
• Jacket: LSZH (Low Smoke Zero Halogen), orange
• Bandwidth: Up to 600 MHz
• Impedance: 100 Ohm
• Outer diameter: Approx. 7.3 mm
• Fire performance: CPR Class Cca-s1a,d1,a1
• Operating temperature: -20°C to +60°C
• Installation temperature: 0°C to +50°C

Why choose it

This cable is built for reliability and safety. The LSZH jacket emits low smoke and zero halogens in a fire, protecting people and equipment in confined riser spaces. The PiMF construction ensures each pair is individually shielded, drastically reducing interference and enabling stable 10 Gigabit Ethernet over longer distances. The solid bare copper conductors guarantee excellent signal integrity and support Power over Ethernet applications up to the highest standards.

Ideal use cases

• Enterprise backbone cabling between floors in office buildings
• Data center structured cabling for 10GBASE-T server connections
• High-interference environments where alien crosstalk is a concern
• Installations requiring CPR Class Cca fire safety compliance

Good to know

The cable is supplied on a convenient 250-meter spool, minimizing waste and simplifying handling. Its orange jacket provides high visibility for easy identification in cable trays. Because it is a bulk cable, it requires field termination with Cat.7-compatible connectors or modules. The solid conductors are best suited for permanent links rather than frequent patching.
