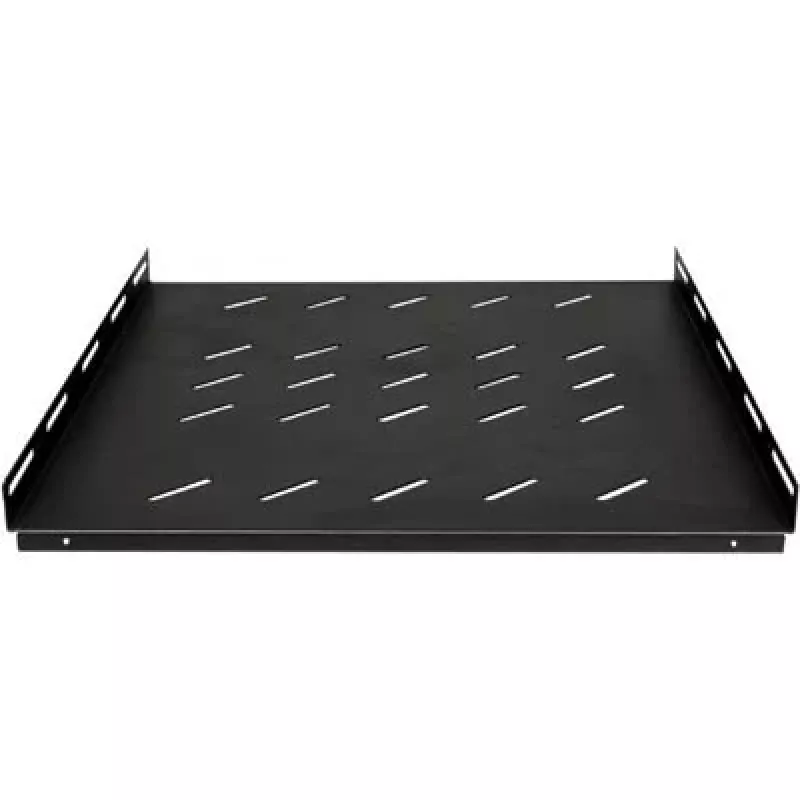

DSIT bandeja fija de carga pesada para armarios de servidores de 1200 mm de profundidad - 1U - 100 kg (DS-SFH120)

Server rooms often lack a stable, high-capacity surface for heavy equipment that cannot be rack-mounted directly. The DSIT DS-SFH120 heavy-duty shelf solves this by providing a solid, 1U fixed platform rated for 100 kg, designed specifically for 1200 mm deep server racks.

Who is it for

IT administrators and data center technicians who need to support servers, UPS units, network devices, or storage equipment in a 19-inch rack with 1200 mm depth. Ideal for equipment that is not rack-mountable or requires additional support.

Main features

• Fixed shelf, 1U height, for 19-inch racks
• Maximum weight capacity: 100 kg (evenly distributed)
• Compatible with 1200 mm deep server racks
• Shelf depth: 1000 mm, width: 482.6 mm
• Adjustable mounting depth: 700 - 1050 mm
• Solid steel construction, powder coated in black (RAL 9005)
• Mounting hardware set included

Specifications

• Product type: Fixed rack shelf
• Rack unit height: 1U
• Weight capacity: 100 kg
• Compatible cabinet depth: 1200 mm
• Shelf depth: 1000 mm
• Shelf width: 482.6 mm (19-inch)
• Mounting type: 4-post rack mount
• Adjustable mounting depth: 700 - 1050 mm
• Material: Steel
• Color: Black (RAL 9005)
• Ventilation: Solid
• Finish: Powder coated
• Application: Servers, UPS, network devices, storage
• Load distribution: Evenly distributed

Tips

Ensure the rack posts are set to a depth within the adjustable range of 700–1050 mm for proper installation. Distribute the load evenly across the shelf surface to achieve the full 100 kg capacity.
