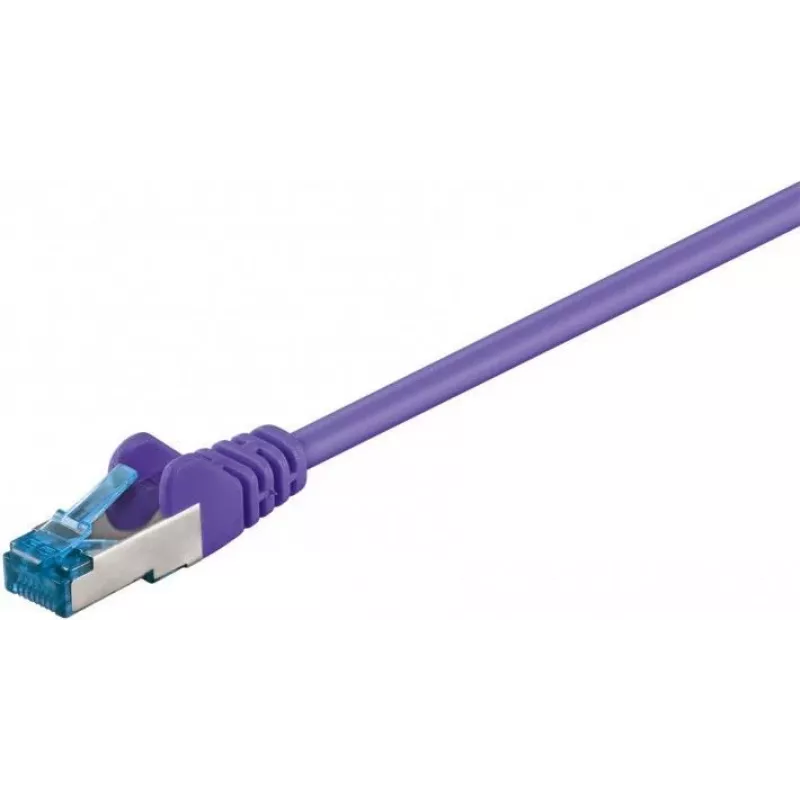

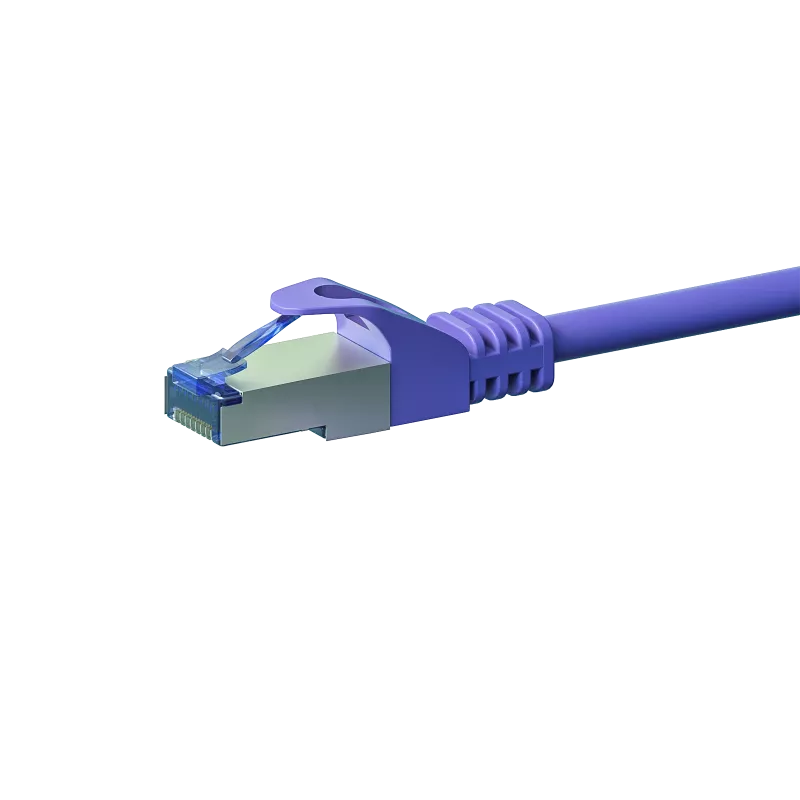

DSIT cable de parcheo de red CAT 6a S/FTP LSOH, 5 m, violeta

High-speed data transmission demands a cable that can keep up without interference or signal loss. The DSIT CAT 6a S/FTP LSOH Network Patch Cable delivers reliable 10 Gigabit Ethernet performance over 5 meters, with double shielding and a low-smoke, zero-halogen jacket for safety in any environment.

Who is it for

Network administrators, IT professionals, and home users who need a robust, future-proof connection for servers, switches, routers, and high-bandwidth workstations. Ideal for data centers, offices, and structured cabling systems where fire safety and performance are critical.

Main features

• Category 6a performance supports 10GBASE-T up to 500 MHz bandwidth
• S/FTP shielding: overall braided screen plus foil on each twisted pair (PIMF) for maximum EMI/RFI rejection
• LSOH (Low Smoke Zero Halogen) jacket reduces toxic fumes and smoke in case of fire
• Gold-plated RJ45 connectors ensure corrosion resistance and reliable contacts
• Stranded copper conductors provide flexibility for frequent patching
• Backward compatible with Cat 6, Cat 5e, and Cat 5 networks

Specifications

• Length: 5 meters
• Colour: Violet
• Connector type: RJ45 male to RJ45 male
• Shielding: S/FTP (PIMF + braid)
• Conductor material: Copper, stranded
• Jacket material: LSOH
• Data transfer rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Operating temperature: -20°C to +60°C

Tips

For optimal performance, avoid sharp bends and keep the cable away from power lines. Use with compatible Cat 6a hardware to achieve full 10G speeds. The LSOH jacket makes this cable suitable for public buildings and areas with strict fire regulations.
