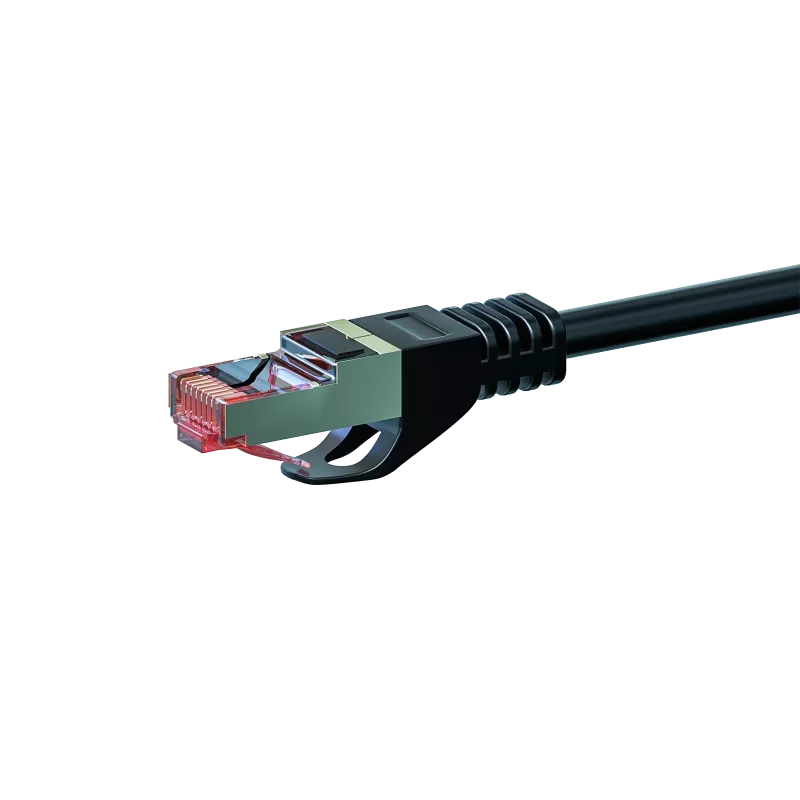

DSIT cable de red CAT 6 S/FTP LSOH, 0,5 m, negro

In server rooms and patch panels, a cable that can't handle high-density environments or safety standards is a liability. The DSIT CAT 6 S/FTP LSOH Network Cable in black addresses both concerns with a screened, foiled twisted-pair construction and a low-smoke zero-halogen jacket. At 0.5 meters, it's the right length for tidy rack connections without excess slack.

Highlights

• Category 6 performance with up to 250 MHz bandwidth for Gigabit Ethernet
• S/FTP shielding: individual foil pairs plus overall braid for superior EMI rejection
• LSOH (Low Smoke Zero Halogen) jacket for improved fire safety in enclosed spaces
• Stranded copper conductors for flexibility and durability in frequent patching
• RJ45 male-to-male connectors, wired to TIA/EIA-568B standard
• Compact 0.5 m length ideal for neat patch panel and switch connections

In daily use

This patch cable is built for environments where signal integrity and safety matter. The S/FTP shielding reduces alien crosstalk and electromagnetic interference, ensuring stable 1000BASE-T links even near power lines or other cables. The LSOH jacket emits very low smoke and no corrosive halogens if exposed to fire, making it suitable for offices, data centers, and public buildings. The stranded 26 AWG conductors allow the cable to bend easily without breaking, and the black color blends into most racks and cable management systems.

Full specifications

• Cable standard: Category 6 (CAT 6)
• Shielding type: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Length: 0.5 m
• Colour: Black
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor gauge: 26 AWG
• Conductor construction: Stranded
• Wiring standard: TIA/EIA-568B
• Bandwidth: Up to 250 MHz
• Data transfer rate: Up to 1 Gbps (1000BASE-T)
• Impedance: 100 Ohm
• Number of pairs: 4
• Outer diameter (approx.): 6.0 mm
• Operating temperature: -20°C to 60°C
• Fire safety: IEC 60332-1 (LSOH compliant)
• Certifications: RoHS, CE

Final note

For a short, reliable, and safety-conscious network connection, the DSIT CAT 6 S/FTP LSOH cable delivers performance without compromise. Its shielding and LSOH jacket make it a smart choice for professional installations where both data integrity and fire safety are priorities.
