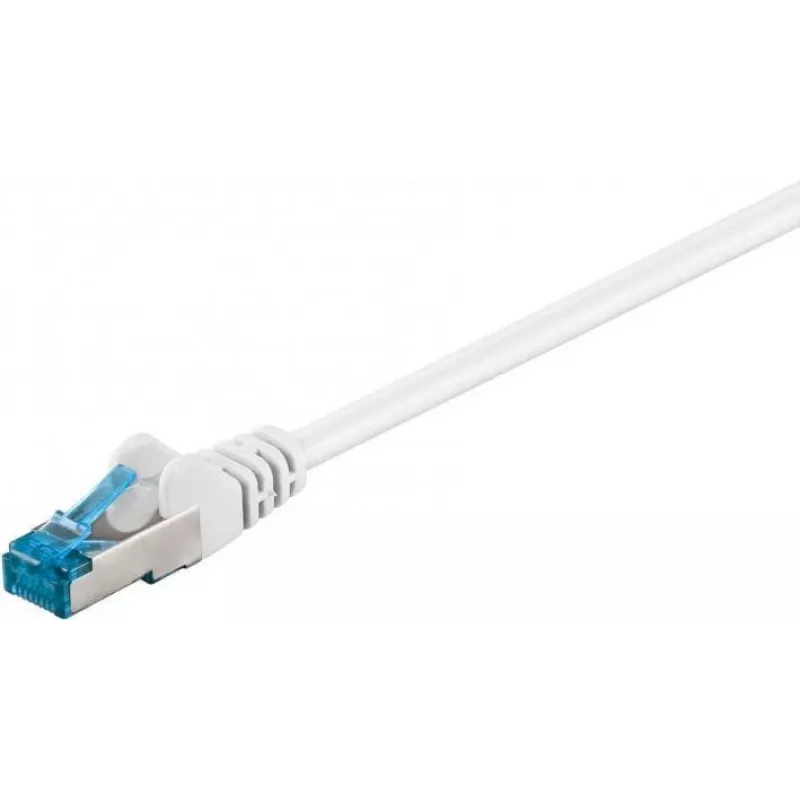

DSIT cable de red CAT 6a LSOH - S/FTP - 3 metros - blanco (DC-6A2-030)

For installations where safety and signal integrity cannot be compromised, the DSIT CAT 6a LSOH S/FTP patch cable delivers 10 Gigabit performance in a halogen-free jacket. Unlike standard PVC cables, its LSOH (Low Smoke Zero Halogen) sheath emits minimal smoke and no toxic halogens in the event of fire, making it the responsible choice for public buildings, offices, and data centers. The S/FTP construction—individually foil-shielded pairs wrapped in an overall braided screen—virtually eliminates alien crosstalk, ensuring stable 500 MHz bandwidth even in dense cable bundles.

Highlights

• CAT 6a performance: supports 10GBASE-T up to 500 MHz
• S/FTP shielding: foil around each pair plus overall braid for superior EMI/RFI rejection
• LSOH jacket: low smoke, zero halogen for enhanced fire safety

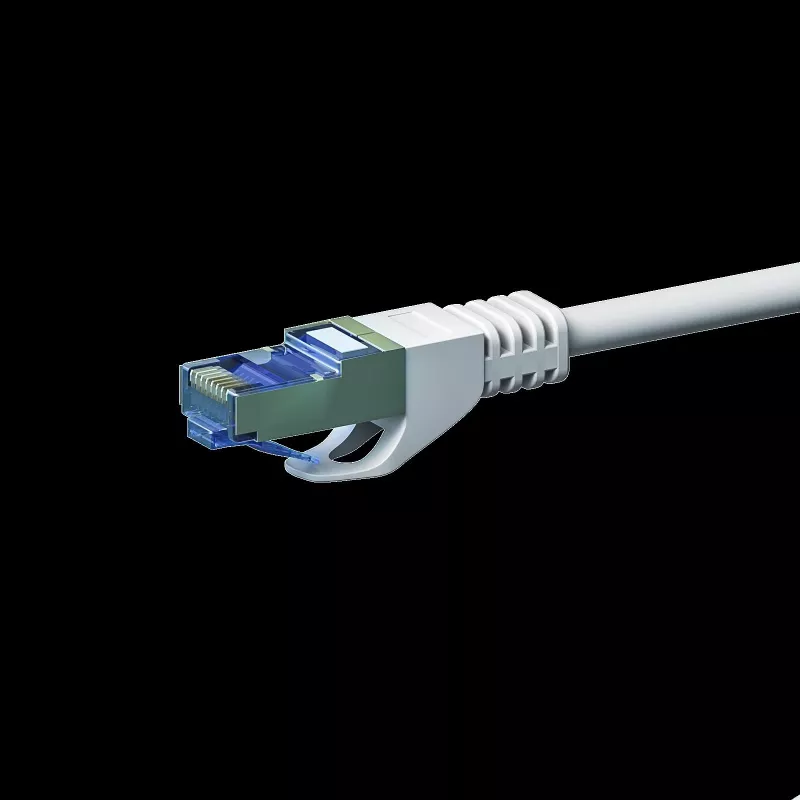

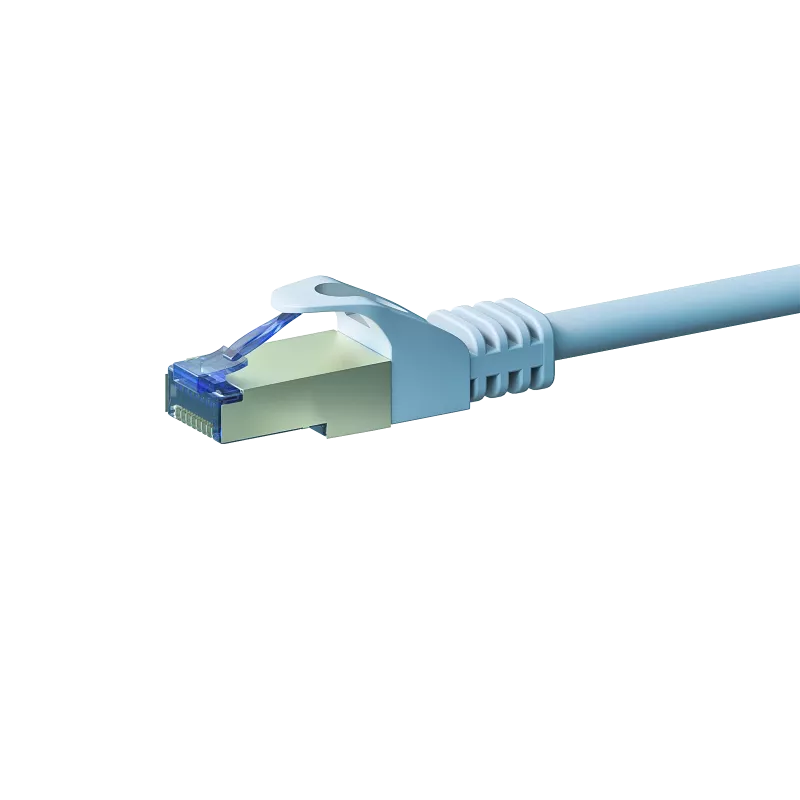

• Gold-plated RJ45 connectors for reliable, corrosion-resistant contacts
• Stranded 26 AWG copper conductors for flexibility and durability
• 3-meter length ideal for patching between panels and equipment

In daily use

This patch cable connects servers, switches, and workstations with confidence. The white LSOH jacket stays flexible and easy to route, while the robust strain relief protects the connectors during frequent re-patching. The TIA/EIA-568B wiring ensures compatibility with all standard Ethernet equipment. Whether you're upgrading a high-density rack or simply need a reliable link for a PoE device, this cable delivers consistent, error-free transmission.

Full specifications

• Category: CAT 6a
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 3 meters
• Colour: White
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: up to 500 MHz
• Conductor material: bare copper, stranded
• Conductor gauge: 26 AWG
• Wiring standard: TIA/EIA-568B
• Number of pairs: 4
• Application: patch cable
• Compliance: RoHS, CE
• Flammability rating: IEC 60332-1 (LSOH)
• Outer jacket diameter: approx. 6.5 mm
• Connector plating: gold-plated contacts

Final note

A professional-grade CAT 6a patch cable that combines high-speed performance with enhanced fire safety—ideal for modern, safety-conscious network environments.
