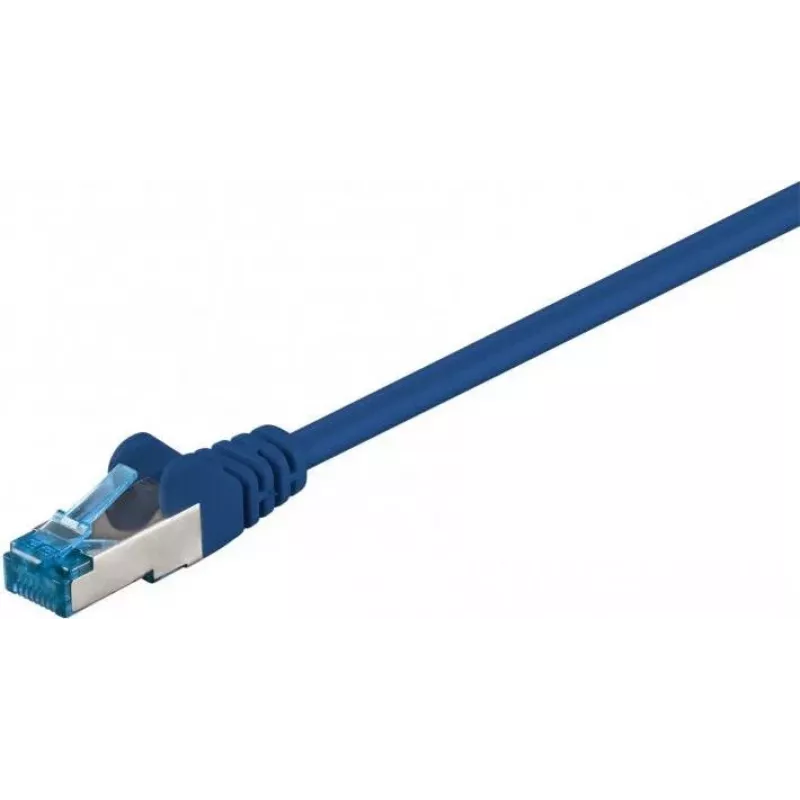

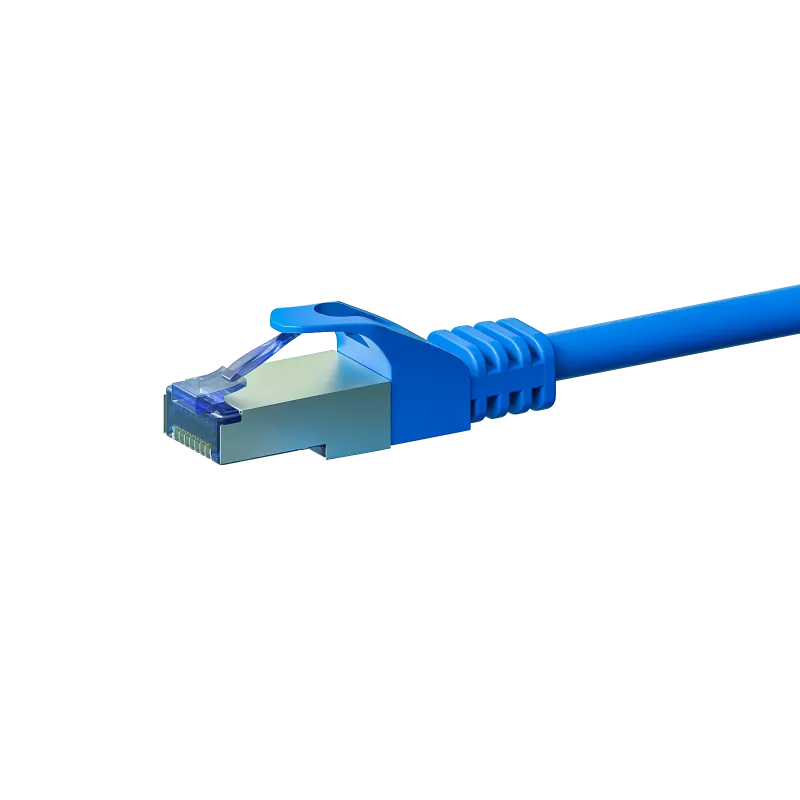

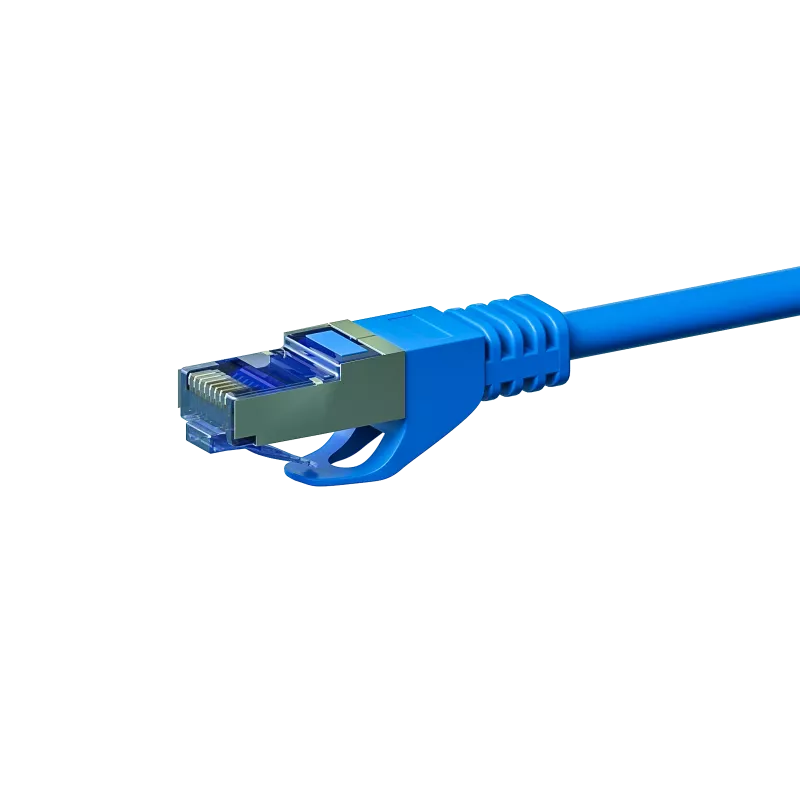

DSIT Cable de red CAT 6a S/FTP LSOH, 1,5 m, azul

High-speed data transmission demands a cable that can keep up with modern network demands. This DSIT CAT 6a patch cable delivers reliable 10 Gigabit Ethernet performance in a compact 1.5-meter length, making it ideal for connecting devices in tight spaces without sacrificing signal integrity. The S/FTP shielding and LSOH jacket ensure both performance and safety in professional environments.

Who is it for

This cable is perfect for IT professionals, data center technicians, and home users who need a short, high-performance connection between servers, switches, patch panels, or workstations. Its low-smoke zero-halogen jacket makes it especially suitable for offices, schools, and public buildings where fire safety regulations require halogen-free cabling.

Main features

• CAT 6a performance up to 500 MHz bandwidth
• S/FTP shielding: individual foil pairs plus overall braid for maximum EMI/RFI protection
• LSOH (Low Smoke Zero Halogen) jacket for enhanced fire safety
• Gold-plated RJ45 connectors (50µm) for corrosion resistance and reliable contacts
• Stranded copper conductors (AWG 26/7) for flexibility and durability
• Supports 10GBASE-T, PoE, PoE+, and UPoE
• Length: 1.5 meters, ideal for patch panels and short device connections

Specifications

• Category: CAT 6a (Class EA)
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 26/7 (stranded)
• Bandwidth: Up to 500 MHz
• Data transfer rate: Up to 10 Gbps
• Wiring standard: TIA/EIA 568B
• Outer diameter: Approx. 6.0 mm
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, CE

Tips

For best performance, avoid sharp bends and keep the cable away from power lines to minimize interference. When patching in high-density environments, use cable management accessories to maintain proper bend radius and airflow.
