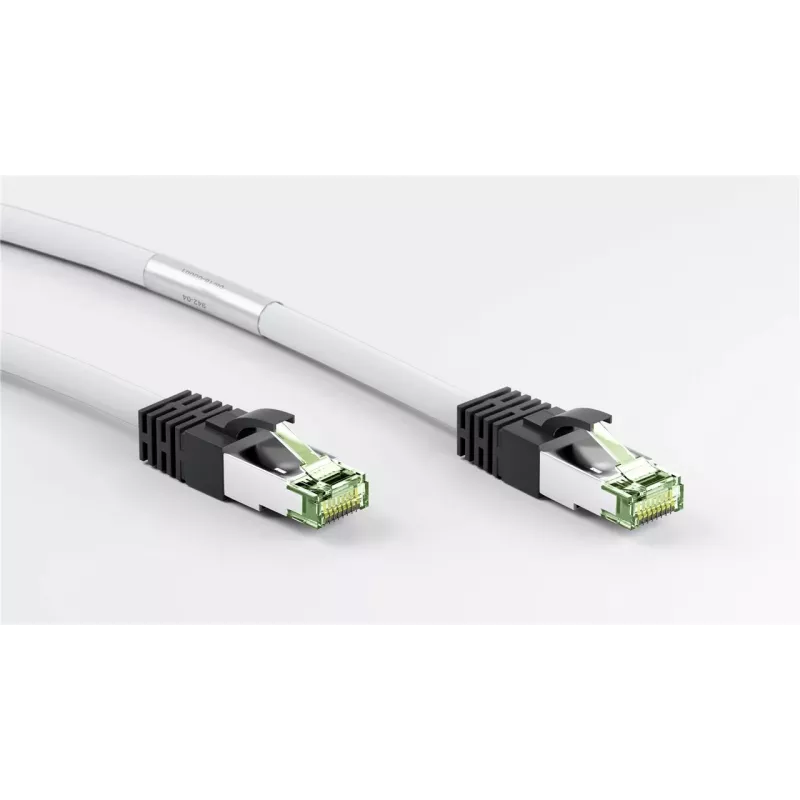

DSIT Cable de red CAT 8 S/FTP PiMF RJ45, 2 m, blanco

For installations where every decibel of signal integrity counts, this DSIT patch cable steps beyond ordinary Cat 6a or Cat 7 wiring with full Cat 8 performance in a compact 2-metre length. The S/FTP construction with PiMF (pairs in metal foil) gives each twisted pair its own foil shield, while an overall braid screen rejects alien crosstalk in dense racks or 25G/40G Ethernet environments. The result is a 2000 MHz bandwidth headroom that keeps your link stable even when neighbouring cables run hot.

Highlights

• Category 8 performance: up to 40 Gbit/s and 2000 MHz for 25GBASE-T and 40GBASE-T.
• S/FTP with PiMF: individual foil per pair plus overall braid for maximum EMI immunity.
• 100% oxygen-free copper conductors, 26 AWG stranded, for low attenuation and flexibility.
• Gold-plated RJ45 connectors (50µ) with snagless boots for reliable, repeated mating.
• Backward compatible with Cat 7a, Cat 7, Cat 6a, Cat 6, and Cat 5e equipment.

In daily use

The white PVC jacket stays clean and visible in cable trays or behind desks, and the 2-metre length is ideal for patching between switches, servers, and patch panels without excess slack. The stranded copper core allows tight bends near connectors without breaking, while the TIA/EIA 568B wiring ensures consistent pinouts across your infrastructure. PoE support up to 4PPoE means you can also use this cable to power access points, cameras, or other high-wattage devices without a separate power run.

Full specifications

• Cable type: Ethernet patch cable, Cat 8
• Shielding: S/FTP (Screened Foiled Twisted Pair), PiMF
• Length: 2 m
• Colour: White
• Bandwidth: 2000 MHz
• Data rate: up to 40 Gbit/s
• Conductor: 100% oxygen-free copper, 26 AWG stranded
• Jacket: PVC
• Connectors: RJ45 male to RJ45 male, gold-plated (50µ)
• Wiring: TIA/EIA 568B
• PoE: PoE, PoE+, 4PPoE (PoE++)
• Compatibility: Cat 7a, Cat 7, Cat 6a, Cat 6, Cat 5e

Final note

When a standard Cat 6a cable becomes the bottleneck in your high-speed backbone, this DSIT Cat 8 patch lead delivers the shielding and bandwidth to keep 25G and 40G links error-free.
