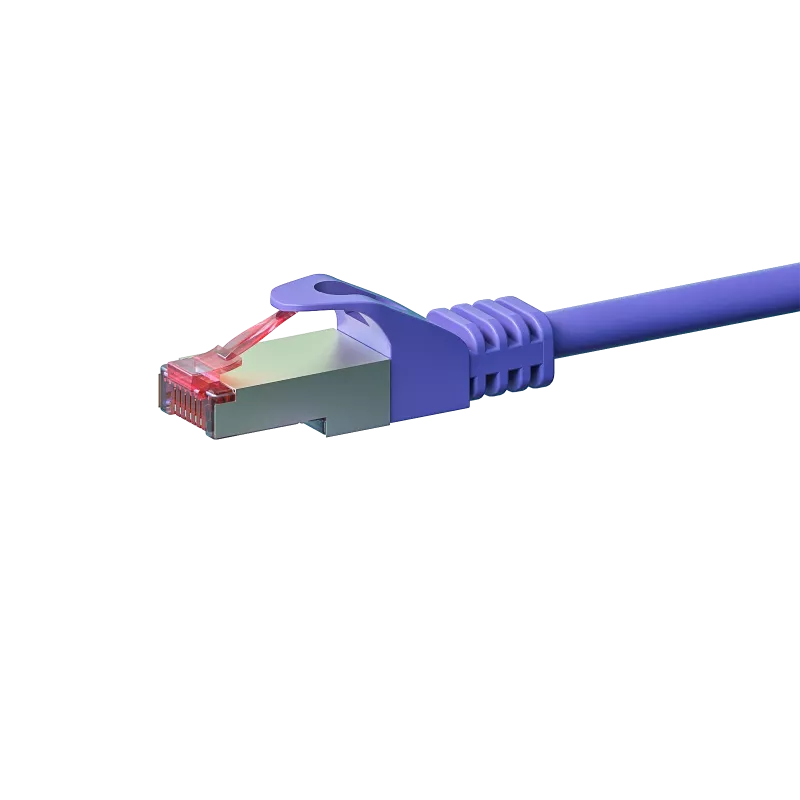

DSIT CAT 6 Cable de red LSOH - S/FTP - 0,50 metros - Violeta (DC-S68-005)

For installations where safety and signal integrity cannot be compromised, this DSIT CAT 6 patch cable pairs S/FTP shielding with a low-smoke zero-halogen jacket. The violet LSOH sheath reduces toxic emissions in fire conditions, while each twisted pair is individually foiled and the overall cable is braided to reject EMI and crosstalk. At 0.5 meters, it is the ideal length for tidy rack connections, patch panels, and direct device links that demand full 10 Gigabit performance without excess slack.

Highlights

• CAT 6 performance with 250 MHz bandwidth and 10GBASE-T support
• S/FTP shielding: individual pair foil plus overall braid for maximum noise immunity
• LSOH (Low Smoke Zero Halogen) jacket for enhanced fire safety in enclosed spaces
• Stranded copper conductors (AWG 26/7) for flexibility and reliable termination
• Violet colour aids quick identification in dense cable management
• Backward compatible with CAT 5e and CAT 5 networks

In daily use

This cable is built for high-density environments where every millimeter counts. The short 0.5-meter length eliminates cable clutter behind switches and servers, improving airflow and simplifying troubleshooting. The S/FTP construction ensures stable 10 Gigabit links even near power lines or other interference sources. The LSOH jacket is not only safer in fire but also resistant to abrasion, making it suitable for repeated re-patching in dynamic IT settings.

Full specifications

• Category: CAT 6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Length: 0.50 m
• Colour: Violet
• Connectors: RJ45 male to RJ45 male
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: 250 MHz
• Conductor: stranded copper, AWG 26/7
• Wiring standard: TIA/EIA-568B
• Outer diameter: approx. 6.2 mm
• Flammability rating: IEC 60332-1
• Certifications: RoHS, CE

Final note

When short runs must deliver maximum throughput with minimal risk, the DSIT DC-S68-005 offers a professional-grade solution that combines performance, safety, and easy identification in one compact cable.
