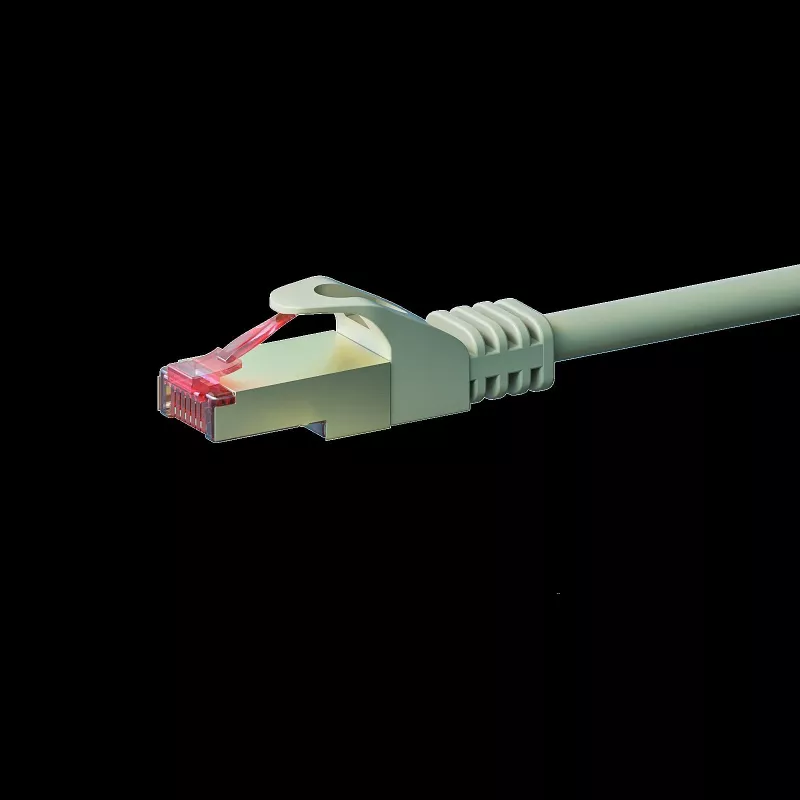

DSIT CAT 6 Cable de red LSOH - S/FTP - 5 metros - Gris (DC-S61-050)

For installations where safety and signal integrity cannot be compromised, this DSIT CAT 6 patch cable stands apart with its LSOH jacket and S/FTP shielding. Unlike standard PVC cables that emit toxic fumes in a fire, the low-smoke zero-halogen sheath reduces hazardous gas release, making it suitable for enclosed spaces, public buildings, and industrial environments. The screened/foiled twisted pair construction adds an extra layer of protection against electromagnetic interference, ensuring clean data transmission even in cable-dense areas.

Highlights

• Category 6 performance with 250 MHz bandwidth and support for up to 10 Gbps over short distances
• S/FTP shielding: each pair individually foiled plus an overall braided screen for superior EMI/RFI rejection
• LSOH (Low Smoke Zero Halogen) jacket for enhanced fire safety and reduced toxic emissions
• Gold-plated RJ45 connectors resist corrosion and maintain reliable contact over repeated insertions
• Stranded copper conductors (AWG 26/7) provide flexibility for easy routing in tight spaces
• 5-meter length ideal for patching between wall outlets and devices or between network equipment

In daily use

This cable delivers dependable Gigabit Ethernet connectivity for workstations, access points, IP cameras, and other PoE-capable devices. Its stranded conductors allow the cable to bend without breaking, making it easy to install in cable trays, behind desks, or through conduits. The grey LSOH jacket is durable yet flexible, and the snagless boot design protects the locking tab from accidental damage during moves. Whether you are setting up a new office, upgrading a home network, or wiring a server rack, this cable provides a professional-grade link that meets strict fire safety regulations.

Full specifications

• Brand: DSIT
• Model: DC-S61-050
• MPN: DC-S61-050
• EAN: 8719956628016
• Cable type: CAT 6 S/FTP patch cable
• Length: 5 meters
• Colour: Grey
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Wiring standard: TIA/EIA 568B
• Bandwidth: 250 MHz
• Data transfer rate: up to 10 Gbps (short distances)
• Impedance: 100 Ohm
• Outer diameter: approx. 6.0 mm
• Number of conductors: 8 (4 twisted pairs)
• Connector plating: Gold-plated contacts
• Fire safety standard: IEC 60332-1 (related to LSOH)
• Compliance: RoHS, CE

Final note

When safety and performance are equally critical, the DSIT CAT 6 LSOH S/FTP cable offers a reliable, future-ready solution for modern networks.
