DSIT CAT 6 S/FTP LSOH cable de red, 7,5 m, blanco, RJ45 (DC-S62-075)

Engineered for high-density installations where safety and signal integrity are paramount, this DSIT CAT 6 patch cable pairs S/FTP shielding with a low-smoke zero-halogen jacket. Unlike standard PVC cables, it will not emit toxic fumes or dense smoke in the event of a fire, making it the responsible choice for public buildings, offices, and data centers. The 7.5-meter length bridges the gap between patch panels, switches, and workstations without excess slack.

Highlights

• Category 6 performance with 250 MHz bandwidth and 1 Gigabit Ethernet support
• S/FTP construction: individual foil-shielded pairs plus an overall braided shield for superior EMI/RFI rejection
• LSOH (Low Smoke Zero Halogen) jacket for enhanced fire safety

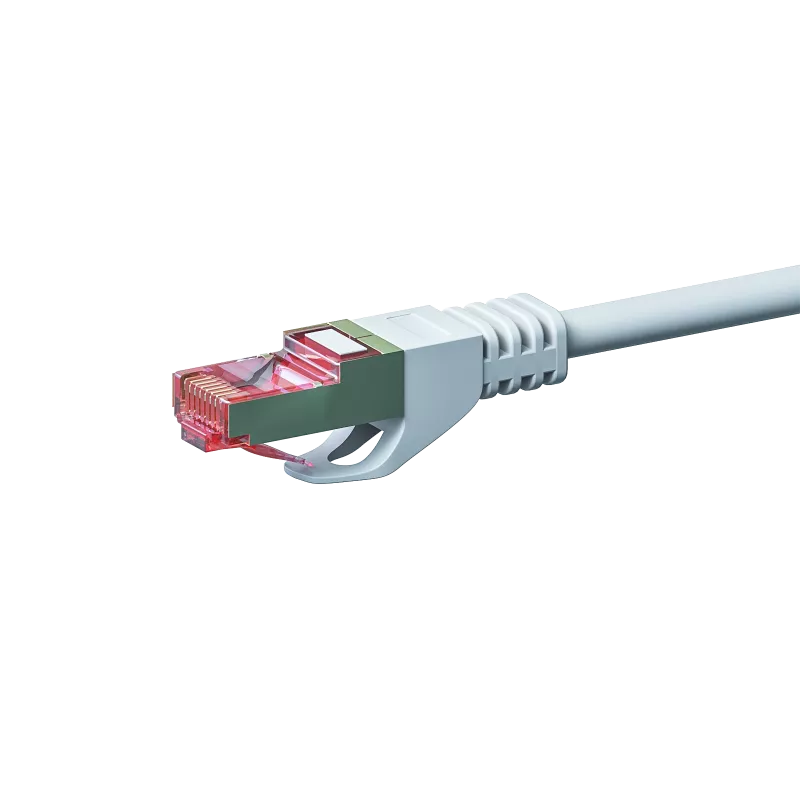

• Snagless RJ45 boots protect the locking tabs during installation and re-routing
• Stranded copper conductors (AWG 26/7) offer flexibility for tight bends and frequent moves
• Backward compatible with Cat 5e and Cat 5 networks

In daily use

Deploy this cable in structured cabling systems where reliability cannot be compromised. The S/FTP shielding virtually eliminates alien crosstalk, ensuring stable Gigabit connections even in cable-dense pathways. Its white LSOH jacket remains pliable and easy to route, while the molded snagless boots prevent accidental disconnections. Whether connecting a workstation, IP phone, or access point, the cable maintains full performance over its entire 7.5-meter length.

Full specifications

• Brand: DSIT
• Model: DC-S62-075
• MPN: DC-S62-075
• EAN: 8719956628108
• Cable type: Network patch cable
• Category: Cat 6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Length: 7.5 m
• Colour: White
• Connector 1: RJ45 male
• Connector 2: RJ45 male
• Conductor material: Copper
• Conductor type: Stranded
• Conductor gauge: AWG 26/7
• Data transfer rate: Up to 1 Gigabit Ethernet (10/100/1000Base-T)
• Bandwidth: Up to 250 MHz
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Number of pairs: 4 twisted pairs
• Application: Ethernet network connection
• Fire safety standard: LSOH compliant
• Compatibility: Backward compatible with Cat 5e, Cat 5
• Features: Snagless boot for connector protection

Final note

For installations where fire safety and signal integrity are non-negotiable, this DSIT cable delivers both without compromise. Its LSOH jacket and S/FTP shielding make it a dependable backbone for modern networks.
