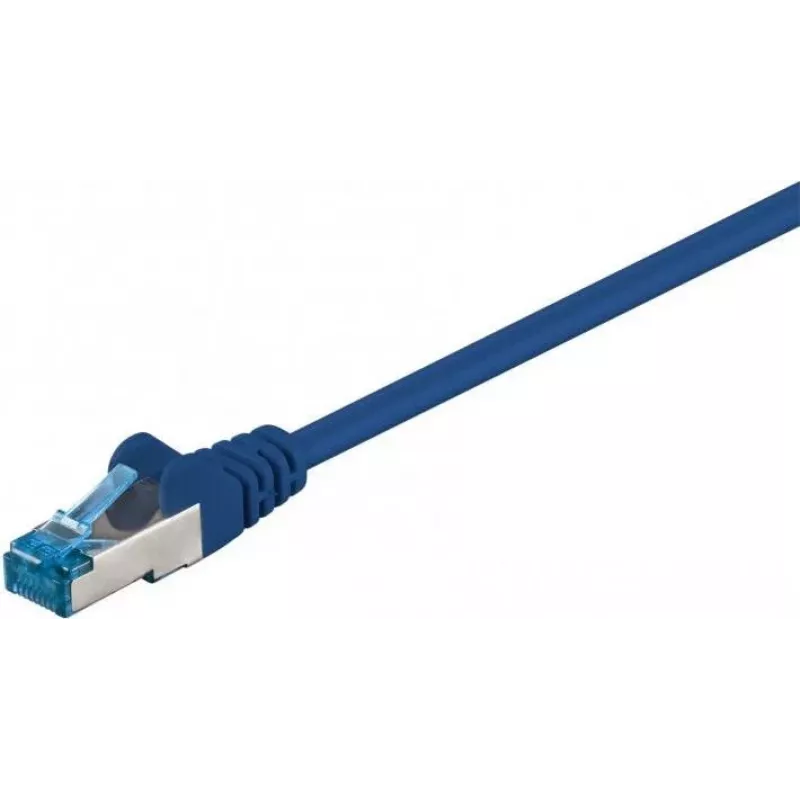

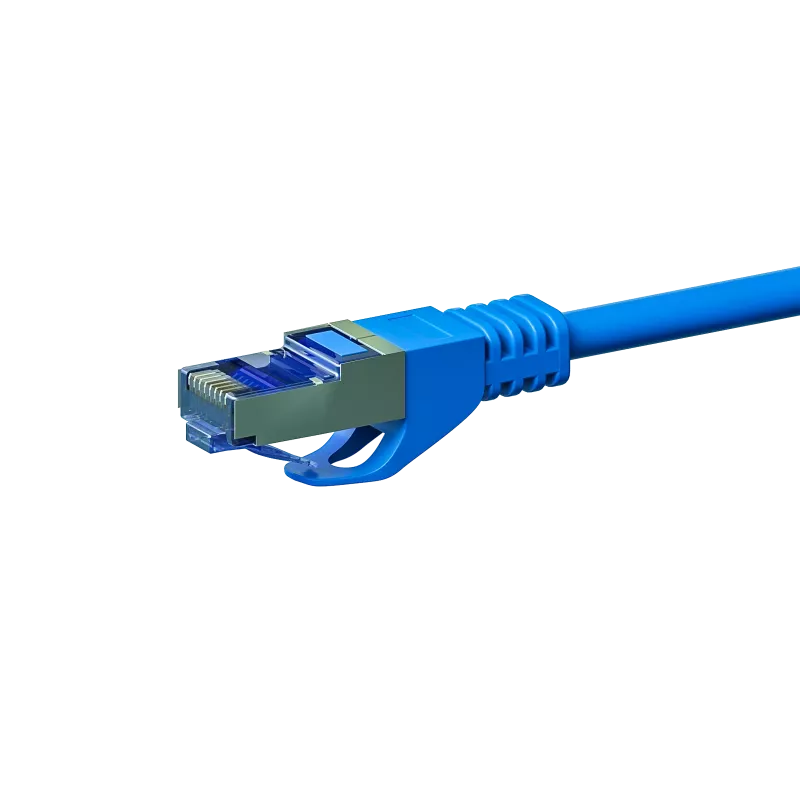

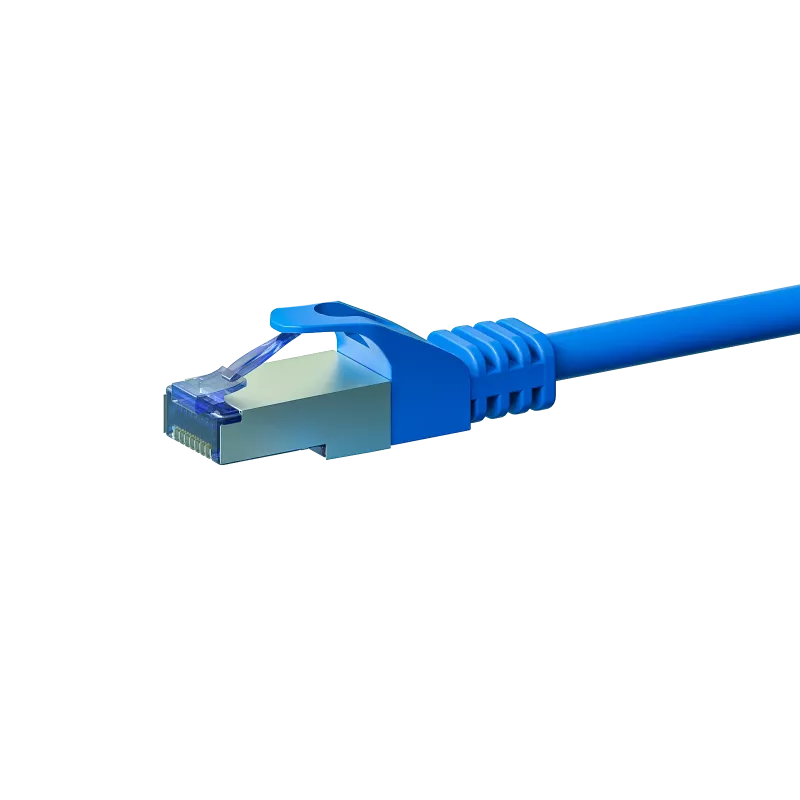

DSIT CAT 6a cable de red LSOH - S/FTP - 15 metros - azul (DC-6A4-150)

For installations where fire safety and signal integrity are non-negotiable, the DSIT CAT 6a S/FTP LSOH cable stands apart from standard PVC patch leads. Its low-smoke zero-halogen jacket reduces toxic emissions in the event of fire, while the screened/foiled twisted-pair construction provides superior resistance to electromagnetic interference. At 15 meters, it bridges longer distances in server rooms, offices, and industrial environments without sacrificing 10 Gigabit performance.

Highlights

• Cat 6a performance: supports 10GBASE-T up to 500 MHz bandwidth
• S/FTP shielding: braided screen plus foil per pair for maximum EMI rejection
• LSOH jacket: low smoke, zero halogen for safer indoor use
• Gold-plated RJ45 connectors with stranded copper conductors (AWG 26/7)
• TIA/EIA 568B wiring for broad compatibility
• Backward compatible with Cat6, Cat5e, and Cat5 networks

In daily use

This cable is built for high-density environments where airflow and fire codes matter. The LSOH material meets IEC 60332-1, IEC 61034, and IEC 60754, making it suitable for public buildings, data centers, and office LANs. The 15-meter length gives you flexibility for structured cabling runs, while the blue jacket aids quick identification. Whether connecting switches, servers, or workstations, the DSIT DC-6A4-150 maintains a stable 100 Ohm impedance and handles operating temperatures from -20°C to 60°C.

Full specifications

• Cable type: Ethernet patch cable
• Category: Cat 6a
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 15 m
• Colour: Blue
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Conductor: Copper, AWG 26/7 stranded
• Wiring standard: TIA/EIA 568B
• Outer diameter: approx. 6.5 mm
• Impedance: 100 Ohm
• Fire safety: IEC 60332-1, IEC 61034, IEC 60754
• Operating temperature: -20°C to 60°C

Final note

When reliability and safety are paramount, the DSIT CAT 6a LSOH cable delivers both without compromise.
