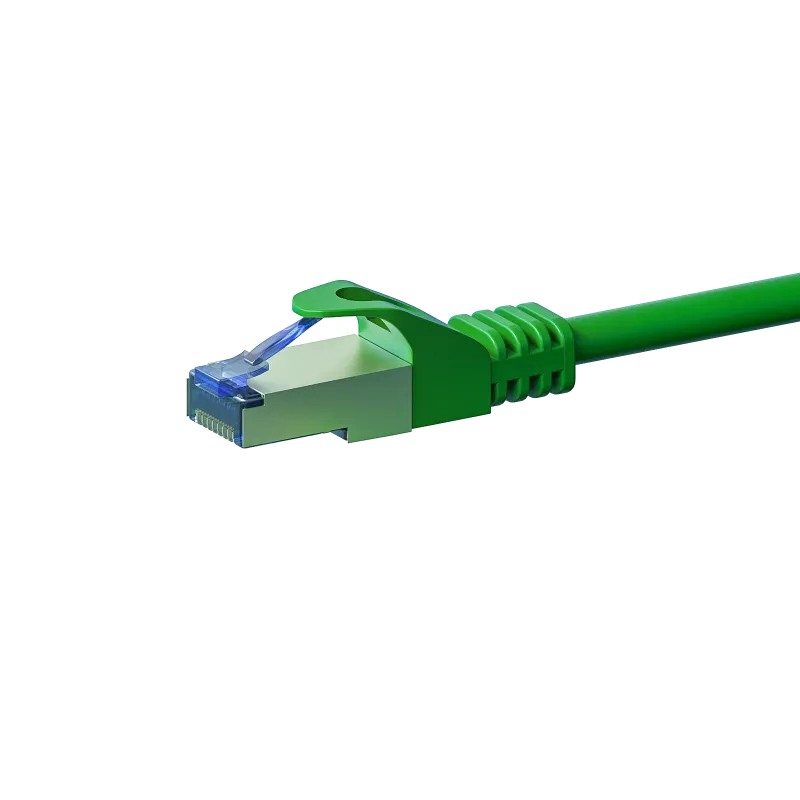

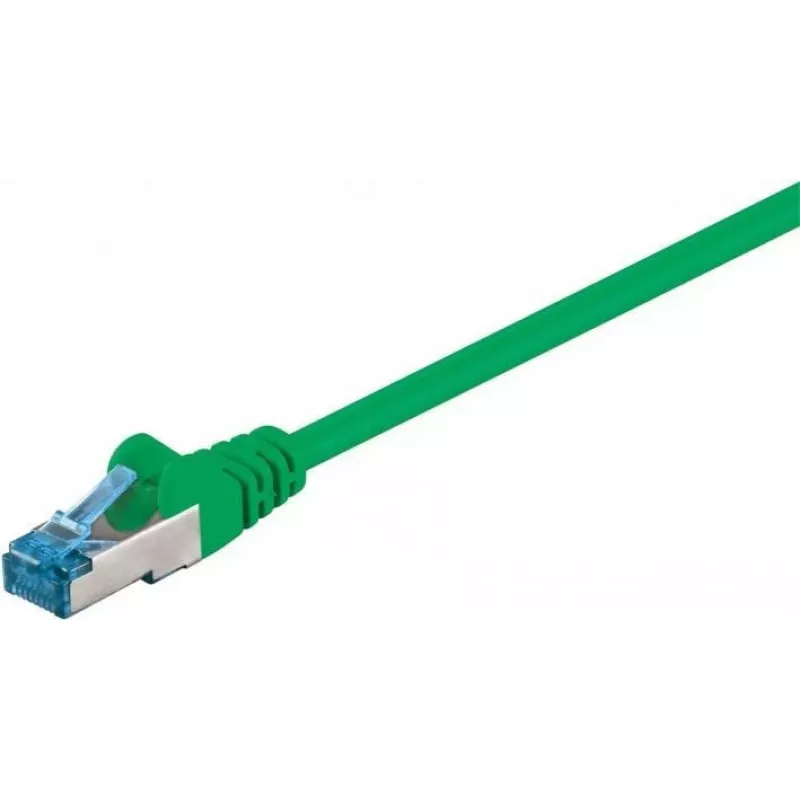

DSIT CAT 6a S/FTP LSOH Cable de conexión, 0,25 m, Verde

Engineered for 10-Gigabit Ethernet over 500 MHz, this DSIT CAT 6a patch cable delivers high-speed, error-free data transfer in dense network environments. The S/FTP shielding—individual foil around each twisted pair plus an overall braid—virtually eliminates alien crosstalk, making it ideal for data centers, server rooms, and high-performance workstations. At just 0.25 meters, it's perfect for tidy patching between adjacent ports, patch panels, and switches.

Overview

The DSIT DC-6A3-002 is a CAT 6a network patch cable with LSOH (Low Smoke Zero Halogen) jacket, ensuring safety in case of fire by emitting very low smoke and no toxic halogens. It features stranded copper conductors for flexibility and durability in frequent patching scenarios. Both ends are terminated with shielded RJ45 male connectors with molded snagless boots, protecting the locking tab during installation and removal. The cable is backward compatible with CAT 6, CAT 5e, and CAT 5 networks, so it works seamlessly with existing infrastructure.

What stands out

• Supports 10GBASE-T up to 500 MHz bandwidth for future-proof performance.
• S/FTP shielding (PiMF) provides superior protection against EMI and crosstalk.
• LSOH jacket material enhances fire safety in confined spaces.
• Short 0.25 m length reduces clutter and improves airflow in racks.
• Snagless molded boots prevent connector damage during moves and changes.

Technical details

• Category: CAT 6a (Class EA)
• Shielding: S/FTP (PIMF - pairs in metal foil with overall braid)
• Length: 0.25 m
• Colour: Green
• Jacket: LSOH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male
• Conductor: Stranded copper
• Wiring: TIA/EIA-568B
• Impedance: 100 Ohm
• Outer diameter: approx. 6.2 mm
• Operating temperature: -20°C to +60°C
• Certifications: RoHS, CE

Our verdict

A reliable, high-performance patch cable for demanding 10G networks. The combination of S/FTP shielding, LSOH jacket, and snagless design makes it a smart choice for professional installations where signal integrity and safety are paramount.
