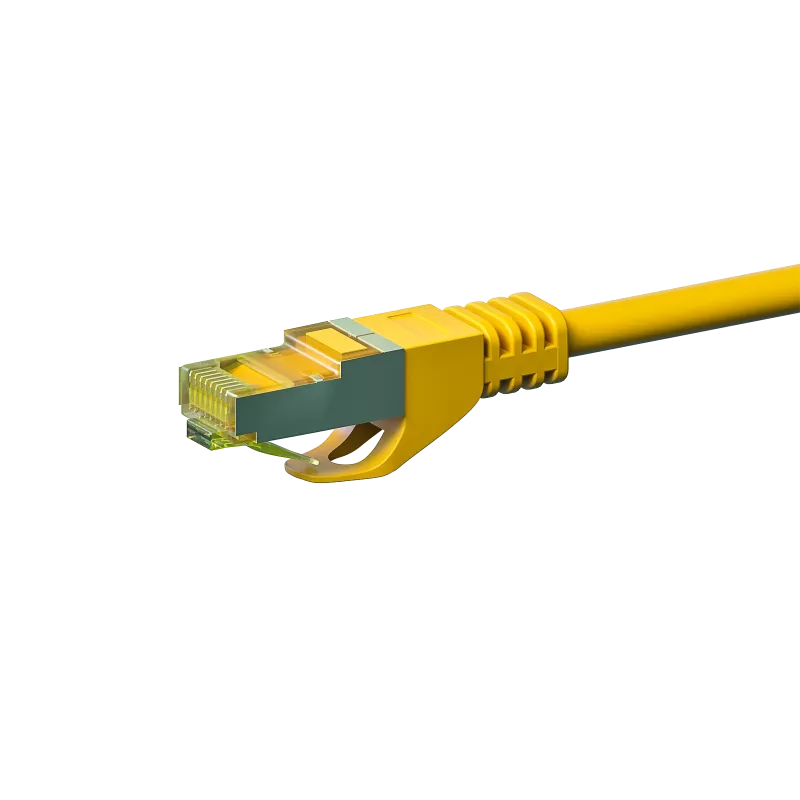

DSIT Cat.7 S/FTP PiMF cable de red patch, conector macho RJ45 a conector macho RJ45, amarillo, 50 m (DC-77-500)

For installations where signal integrity cannot be compromised, this DSIT Cat.7 patch cable stands apart through its S/FTP PiMF construction: each of the four twisted pairs is individually wrapped in metal foil, and the entire bundle is shielded again, yielding exceptional resistance to crosstalk and electromagnetic interference. The result is a 50-metre link that reliably carries 10 Gigabit Ethernet at 600 MHz, even in cable-dense or electrically noisy environments. The solid copper conductors (23 AWG) and durable yellow PVC jacket make it equally suited to fixed infrastructure runs and demanding patch applications.

Highlights

• Category 7 performance with 600 MHz bandwidth and 10GBASE-T support
• S/FTP shielding with PiMF (pairs in metal foil) for superior noise immunity
• 50 m length ideal for structured cabling, data centres, and long patch runs
• RJ45 male connectors on both ends, compatible with standard Ethernet ports
• Solid bare copper conductors (23 AWG) ensure low attenuation and PoE readiness
• Bright yellow PVC jacket for high visibility and easy identification

In daily use

This cable is built for scenarios where a stable, high-speed link is non-negotiable. Whether you are connecting a workstation far from a switch, extending a backbone between floors, or powering a PoE++ device like a PTZ camera or access point, the Cat.7 specification provides ample headroom. The S/FTP PiMF shielding prevents alien crosstalk in bundles, so you can run multiple cables together without performance degradation. The solid core design is intended for permanent installation, but the cable remains flexible enough for careful patching. The yellow colour makes it easy to trace in racks or conduits, reducing maintenance time.

Full specifications

• Brand: DSIT
• Model: DC-77-500
• MPN: DC-77-500
• EAN: 8719956621260
• Cable type: Cat.7 S/FTP (PiMF)
• Length: 50 m
• Colour: Yellow
• Connector 1: RJ45 male
• Connector 2: RJ45 male
• Shielding: S/FTP, pairs in metal foil (PiMF)
• Conductor material: Copper
• Conductor gauge: 23 AWG
• Conductor construction: Solid
• Jacket material: PVC
• Bandwidth: 600 MHz
• Data rate: 10 Gigabit Ethernet
• Networking standards: 10GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T
• Impedance: 100 Ohm
• PoE support: PoE, PoE+, PoE++
• Number of pairs: 4

Final note

When your network demands certified Cat.7 performance over longer distances, this DSIT cable delivers the shielding, bandwidth, and build quality required for reliable 10G connectivity.
