DSIT CAT6a cable de red 100% cobre - U/UTP - 7,5 m - amarillo (DC-U6A7-075)

For installations where headroom matters, this DSIT CAT6a patch cable pairs 100% copper conductors with a U/UTP construction that keeps crosstalk low without the bulk of shielded cable. The 7.5-metre yellow jacket makes it easy to trace in dense racks, while the stranded AWG26 cores stay flexible enough for tight bends behind desks and patch panels.

Highlights

• CAT6a performance: supports 10 Gigabit Ethernet up to 500 MHz bandwidth
• 100% copper conductors (AWG26 stranded) for reliable signal integrity and PoE delivery
• U/UTP unshielded twisted pair design reduces alien crosstalk in typical office environments

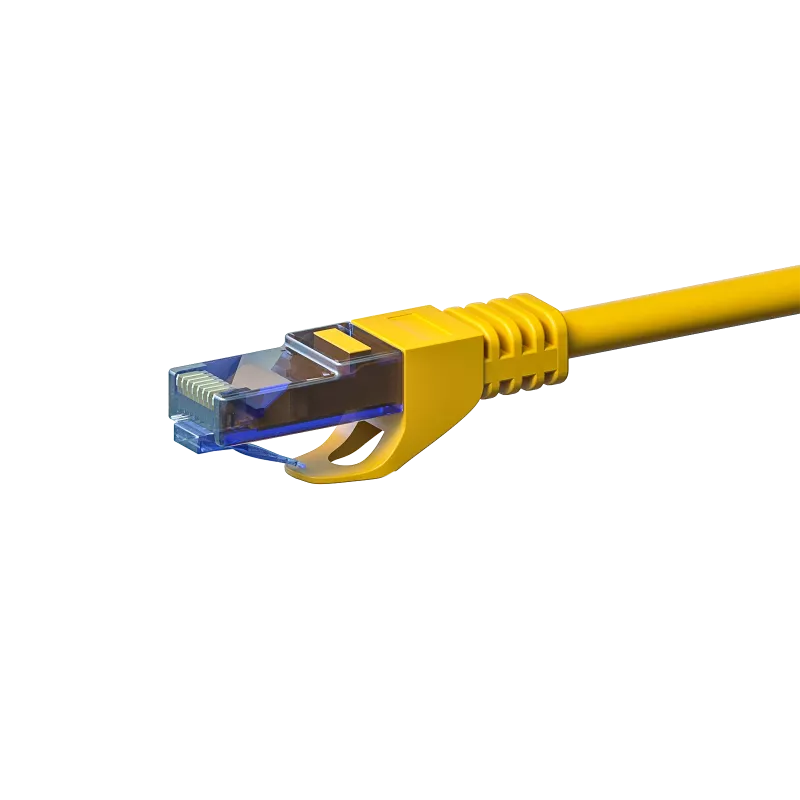

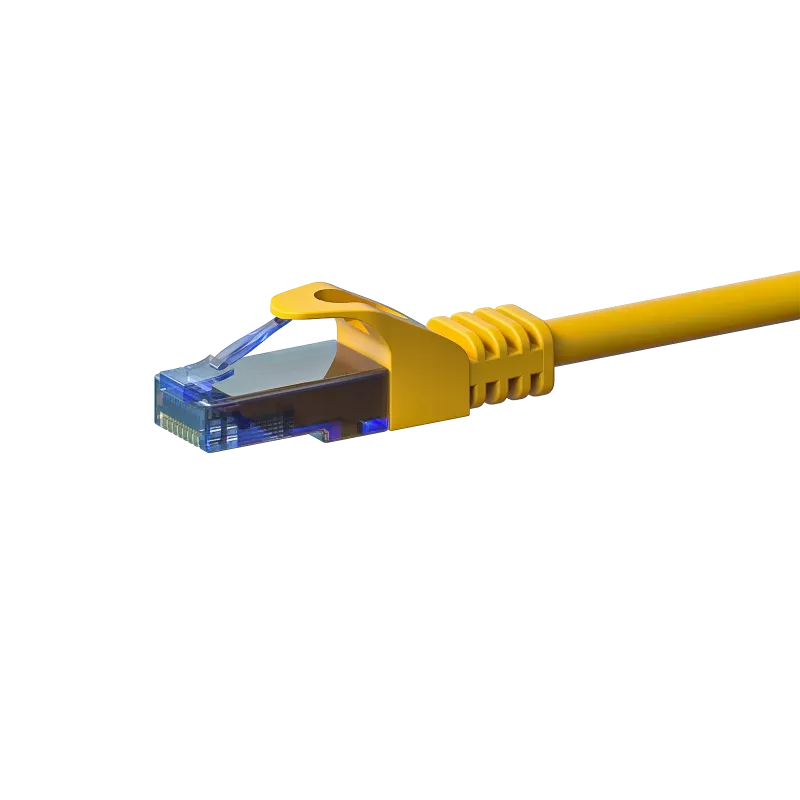

• Gold-plated RJ45 male connectors on both ends resist corrosion and ensure consistent contact
• 7.5-metre length ideal for connecting workstations, access points, or patch panels
• Yellow PVC jacket for high visibility and easy identification in cable bundles
• Compliant with TIA/EIA-568-C.2 and backwards compatible with CAT5e/CAT6 networks

In daily use

Whether you are extending a desk connection to a wall outlet or linking a switch to a patch panel, the stranded copper construction holds up to repeated re-routing without breaking. The cable carries PoE up to the full 10 Gbps data rate, so you can power IP cameras, VoIP phones, or wireless access points without a second cable. The yellow colour stands out in cable trays, saving time during moves and troubleshooting.

Full specifications

• Brand: DSIT
• Model: DC-U6A7-075
• MPN: DC-U6A7-075
• EAN: 8720289750763
• Cable type: CAT6a network cable
• Shielding: U/UTP (unshielded twisted pair)
• Conductor material: 100% copper
• Conductor gauge: AWG26 stranded
• Length: 7.5 metres
• Colour: Yellow
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Impedance: 100 Ohm
• PoE support: Yes
• Jacket material: PVC
• Standards compliance: TIA/EIA-568-C.2
• Operating temperature: -20°C to 60°C
• Halogen free: No

Final note

This DSIT CAT6a cable delivers certified 10G performance with the flexibility and visibility needed for everyday network moves and additions.
