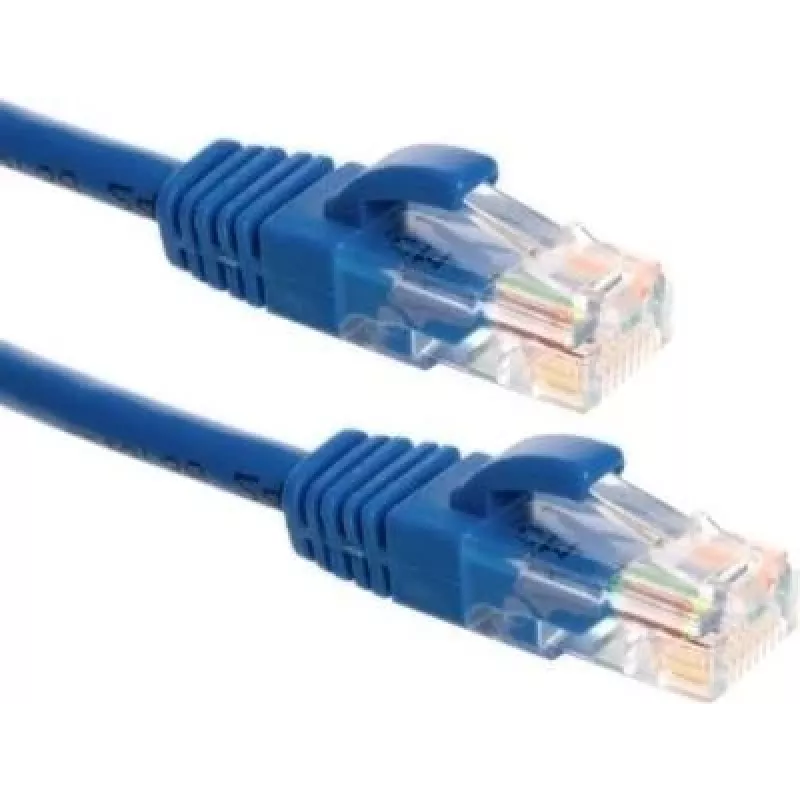

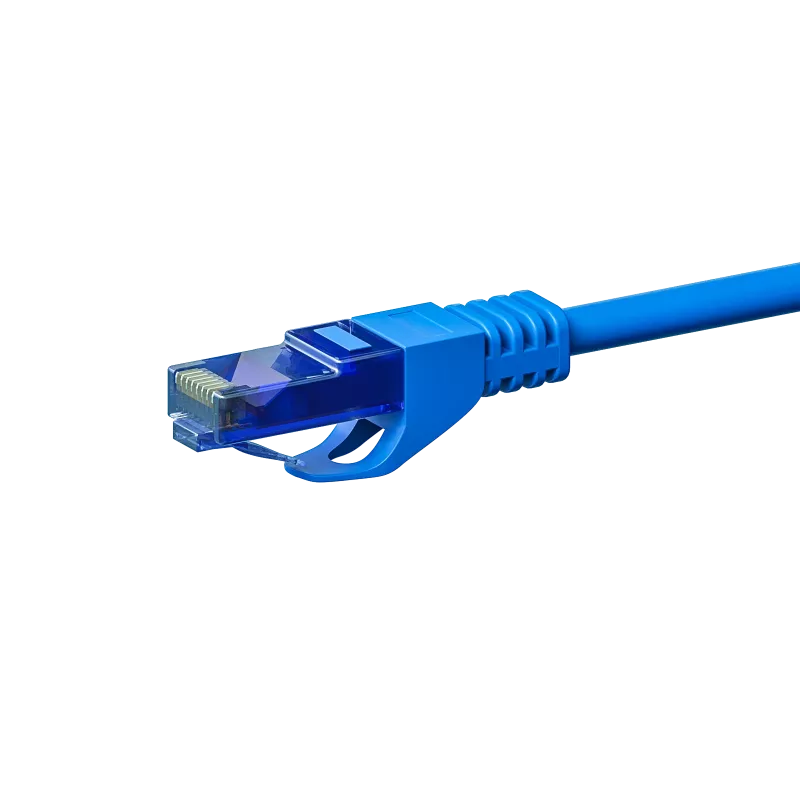

DSIT CAT6a U/UTP 100% cobre cable de conexión Ethernet, 3m, azul, RJ45, 10 Gbps, 500 MHz

In a busy office, a network engineer needs to connect a workstation to a high-speed switch without worrying about interference or signal loss. The DSIT CAT6a U/UTP Ethernet Patch Cable delivers exactly that. With 100% copper conductors and a 3-meter length, it provides a reliable 10 Gigabit link for demanding applications like large file transfers, video conferencing, and cloud access.

Key specifications

• Category: CAT6a (Category 6a)
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor material: 100% copper, 26 AWG stranded
• Length: 3 meters
• Colour: Blue
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: up to 500 MHz
• Jacket material: PVC (CM rated)
• Wiring standard: TIA/EIA-568-B.2 (T568B)
• Impedance: 100 Ohm
• Backward compatible with Cat6, Cat5e, Cat5

Why choose it

This cable is built for performance and longevity. The 100% copper construction ensures superior conductivity and lower resistance compared to copper-clad aluminium (CCA) cables, reducing the risk of packet loss and ensuring stable connections even over longer distances. The U/UTP design is ideal for environments with low electromagnetic interference, offering flexibility and ease of installation. Gold-plated contacts resist corrosion and maintain a clean signal path for years of reliable use.

Ideal use cases

• Connecting computers to 10G network switches in office LANs
• Linking servers to patch panels in data centres
• Extending connections to access points or IP cameras
• Home networking for high-bandwidth activities like 4K streaming and online gaming

Good to know

The cable meets CM flammability rating for general indoor use and is compliant with TIA/EIA standards. Its blue jacket allows for easy colour-coding in structured cabling systems. The stranded conductors provide flexibility for frequent bending and routing in tight spaces, while the durable PVC jacket protects against daily wear and tear.
