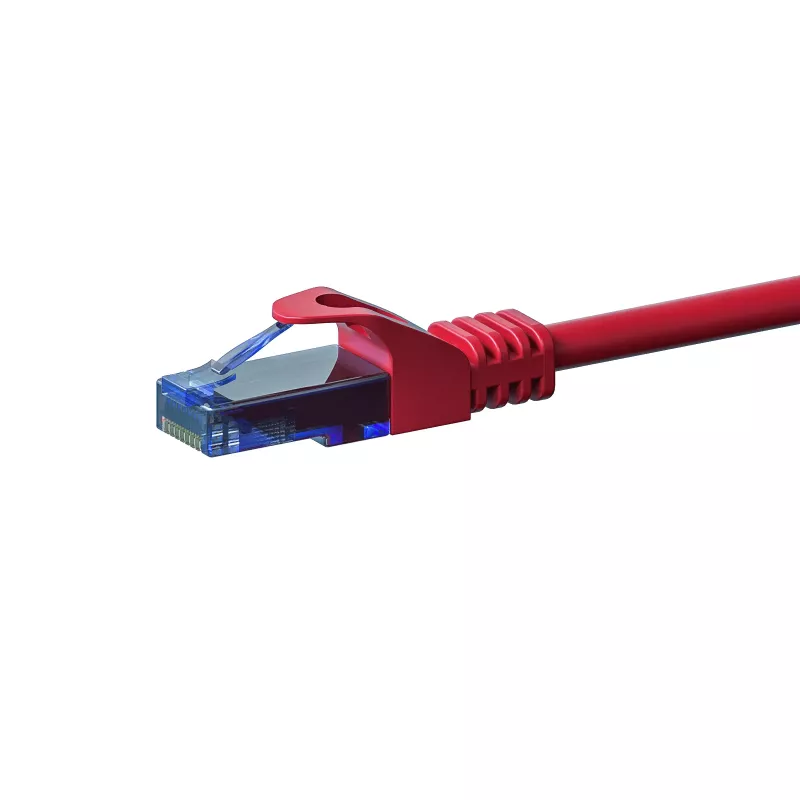

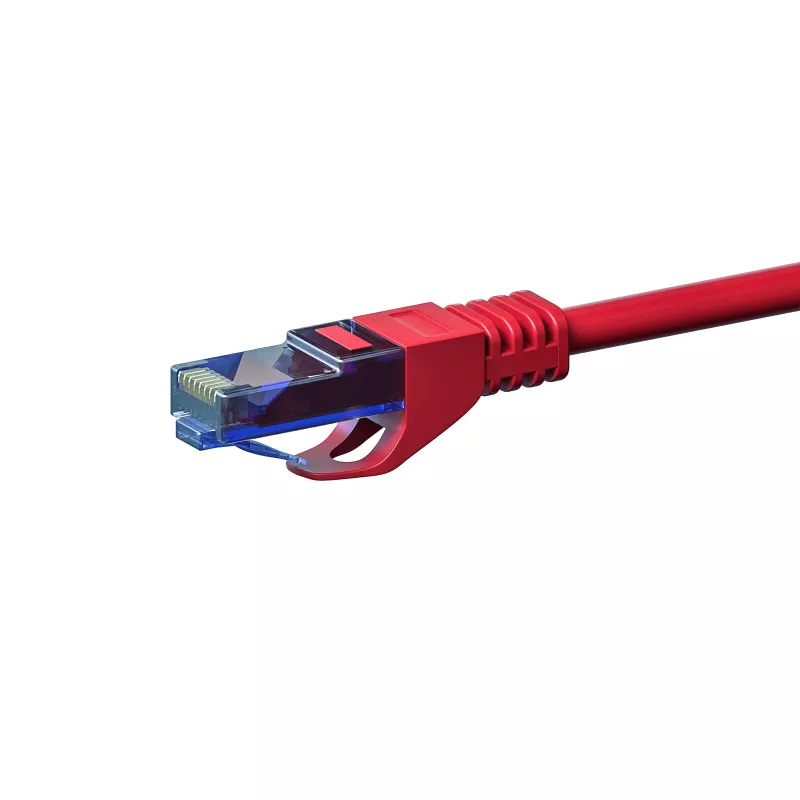

DSIT CAT6a U/UTP 100% cobre cable patch, 20 m, rojo, conector macho RJ45 a macho, 10 Gbit/s, 500 MHz

Experience 10 Gigabit Ethernet speeds with this DSIT CAT6a patch cable, built with 100% pure copper conductors for superior signal integrity over a 20-meter run. The striking red jacket and U/UTP construction make it ideal for high-density network environments where performance and visibility matter.

Overview

The DSIT DC-U6A5-200 is a CAT6a unshielded twisted pair (U/UTP) patch cable designed to support 10GBASE-T networks up to 500 MHz bandwidth. It features four stranded 24 AWG copper pairs, each insulated with HDPE, and terminated with RJ45 male connectors on both ends. The cable is wired to TIA/EIA-568B standard and is backward compatible with Cat6, Cat5e, and Cat5 systems.

What stands out

• 100% copper conductors ensure low resistance and reliable performance, unlike cheaper copper-clad aluminium (CCA) cables.
• CAT6a rating supports 10 Gigabit Ethernet at distances up to 100 meters, future-proofing your network.
• U/UTP design reduces crosstalk without the bulk of shielding, making it flexible and easy to route.
• Vivid red jacket allows quick identification in crowded patch panels or cable trays.
• Stranded conductors provide excellent flexibility for frequent patching and tight bends.

Technical details

• Cable length: 20 meters
• Cable category: CAT6a
• Shielding: U/UTP (unshielded)
• Conductor material: 100% copper, stranded
• Conductor gauge: AWG 24/7
• Number of pairs: 4
• Insulation: HDPE
• Jacket material: PVC
• Connector type: RJ45 male to RJ45 male
• Wiring standard: TIA/EIA-568B
• Bandwidth: 500 MHz
• Data transfer rate: 10 Gbps
• Compliance: RoHS, CE

Our verdict

For professionals who demand reliable high-speed connectivity without the premium of shielded cable, this DSIT CAT6a patch cable delivers. The pure copper construction and 20-meter length make it a versatile choice for office networks, data centres, and home labs.
