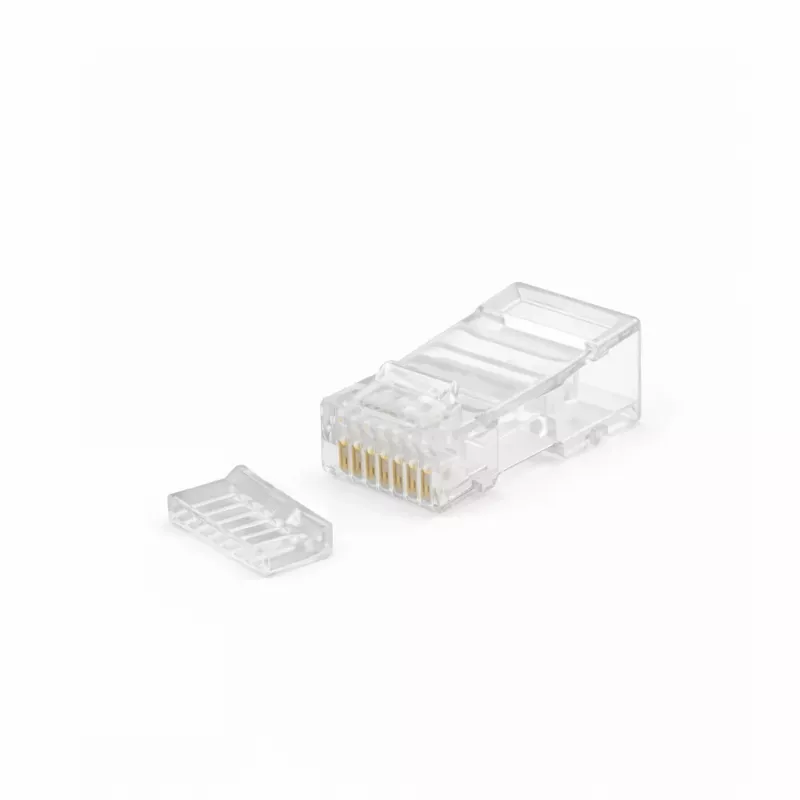

DSIT conector de red UTP RJ45 CAT6 para cables flexibles - pack de 10

Terminating stranded Ethernet cables can be a frustrating experience: unreliable crimps, poor strain relief, and inconsistent performance. The DSIT UTP RJ45 CAT6 Network Plug solves these issues with a transparent housing, gold-plated contacts, and integrated strain relief, ensuring a secure, high-speed connection every time. This pack of 10 plugs is ideal for creating custom patch cables for Gigabit and 10-Gigabit networks.

Who is it for

Network technicians, IT professionals, and DIY enthusiasts who need to fabricate or repair CAT6 patch cables with stranded conductors. Perfect for office LANs, data centers, and home networking projects where flexible cables are preferred for tight bends and frequent movement.

Main features

• CAT6 performance: supports 10GBASE-T Ethernet and up to 250 MHz bandwidth for reliable high-speed data transfer.
• Designed for stranded/flexible cables: compatible with AWG 24-26 stranded conductors, ideal for patch cords.
• Gold-plated contacts (3µm): ensure low contact resistance and corrosion resistance for long-term reliability.
• Transparent polycarbonate housing: allows visual inspection of wire placement before crimping, reducing errors.
• Integrated strain relief: protects cable terminations from bending and pulling, extending cable life.
• Universal TIA/EIA-568A/B wiring: works with both standard pinouts for versatility.
• RoHS compliant: meets environmental standards for safe use.

Specifications

• Connector type: RJ45 (8P8C)
• Cable category: CAT6
• Shielding: UTP (unshielded twisted pair)
• Termination method: crimp-on
• Conductor type: stranded copper
• Wire gauge: AWG 24-26
• Contact plating: gold, 3µm
• Housing material: polycarbonate (PC), transparent
• Data rate: up to 10 Gbps
• Bandwidth: up to 250 MHz
• Pin configuration: TIA/EIA-568A/B

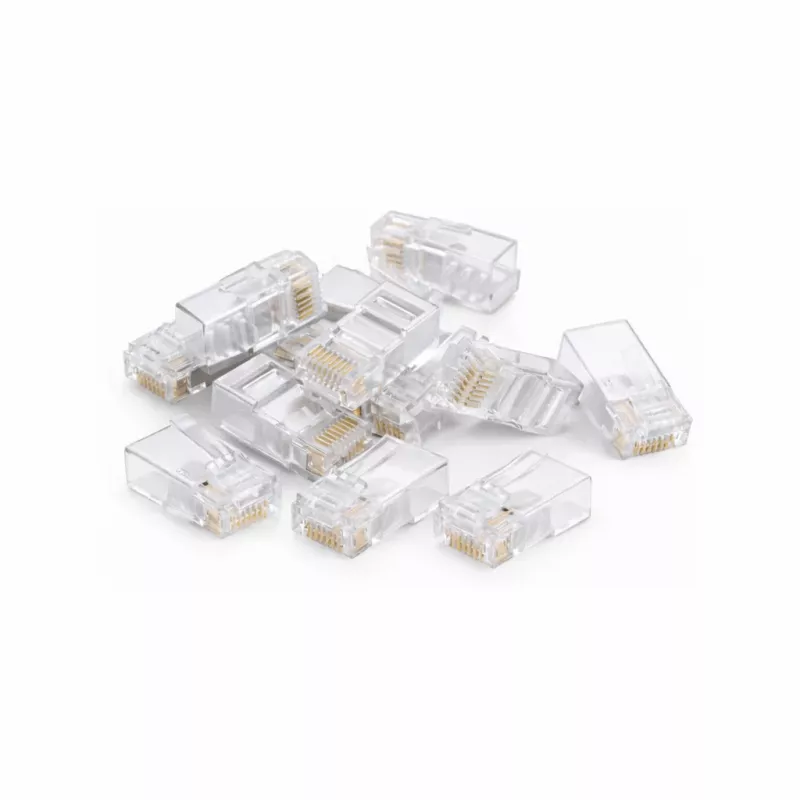

• Pack size: 10 pieces
• Certifications: RoHS

Tips

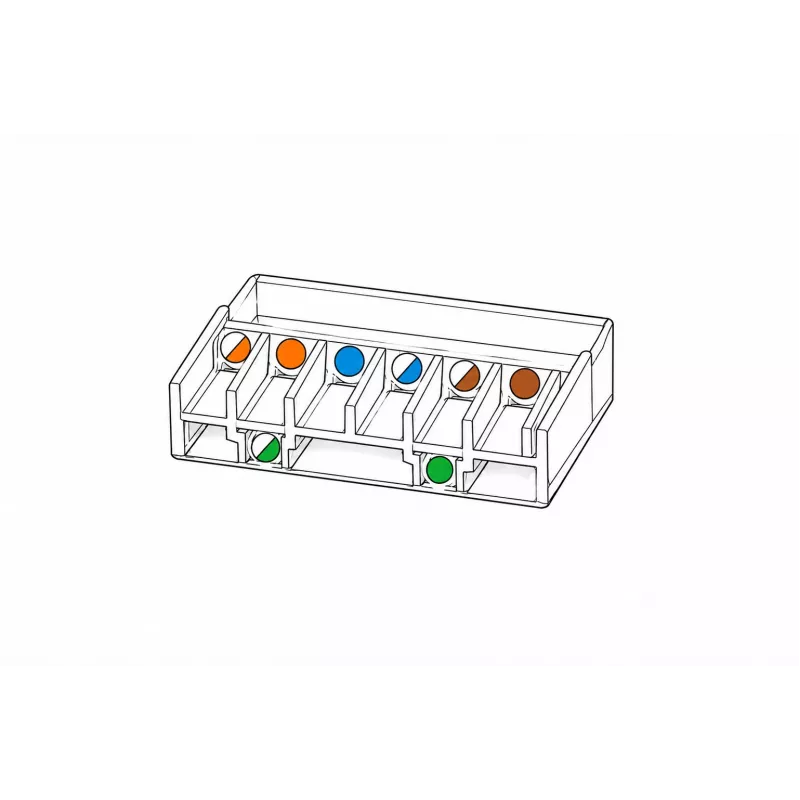

For best results, use a quality RJ45 crimp tool designed for CAT6 connectors. Strip about 2 cm of jacket, untwist pairs, arrange wires according to T568A or T568B, trim to length, and insert fully until wires reach the end of the plug. The transparent housing lets you confirm proper seating before crimping. Test each cable with a network cable tester to verify continuity and performance.
