DSIT DANICOM CAT5e FTP Cable de red 100m Conductor sólido LSZH Dca Azul

Running permanent cabling through office ceilings and walls demands a cable that balances performance with strict fire safety. The DSIT DANICOM CAT5e FTP 100m cable delivers exactly that: a solid-core, foiled twisted pair construction supporting Gigabit Ethernet while meeting the Dca Euroclass for low fire hazard. Its blue LSZH jacket is halogen-free and low-smoke, making it suitable for public buildings and enclosed spaces where safety regulations are tight.

Key specifications

• Category: CAT5e, 4 pairs, 24 AWG solid bare copper conductors
• Shielding: FTP (foiled twisted pair) with overall foil screen
• Length: 100 meters (328 ft) pull box
• Jacket: LSZH (Low Smoke Zero Halogen), blue
• CPR classification: Dca-s2,d2,a1
• Performance: up to 100 MHz, 1 Gigabit Ethernet (1000BASE-T)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Flame retardancy: IEC 60332-1-2, EN 50575
• Halogen free: IEC 60754-1/2, low smoke: IEC 61034-2
• Outer diameter: approx. 6.0 mm

Why choose it

Solid copper conductors provide superior signal integrity and are ideal for punch-down terminations on patch panels and keystone jacks. The FTP shielding reduces electromagnetic interference, ensuring stable connections even near power lines or industrial equipment. The LSZH jacket significantly reduces toxic smoke and corrosive gases in case of fire, protecting both people and equipment. With a Dca rating, this cable meets the requirements of the EU Construction Products Regulation for many commercial and public buildings.

Ideal use cases

• Permanent horizontal cabling in office buildings, schools, and hospitals
• Structured cabling systems requiring CPR Dca compliance
• Installations in areas with high EMI, such as near machinery or power cables
• Backbone connections for Gigabit Ethernet networks

Good to know

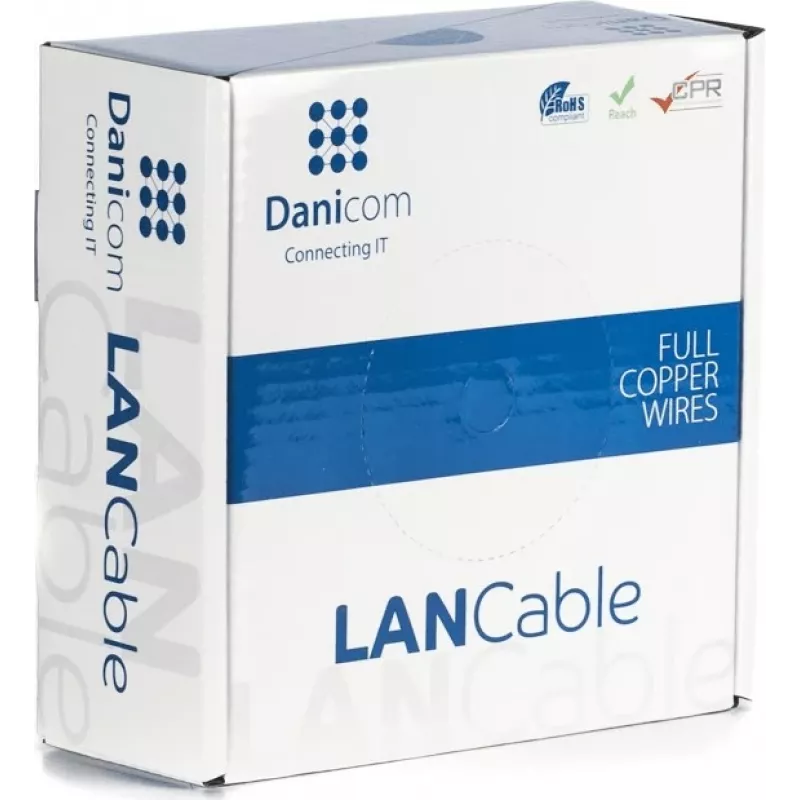

The cable comes in a convenient pull box for easy installation. It is designed for indoor use and should be terminated with compatible FTP connectors to maintain shielding continuity. Always follow local regulations for cable installation and fire safety.
