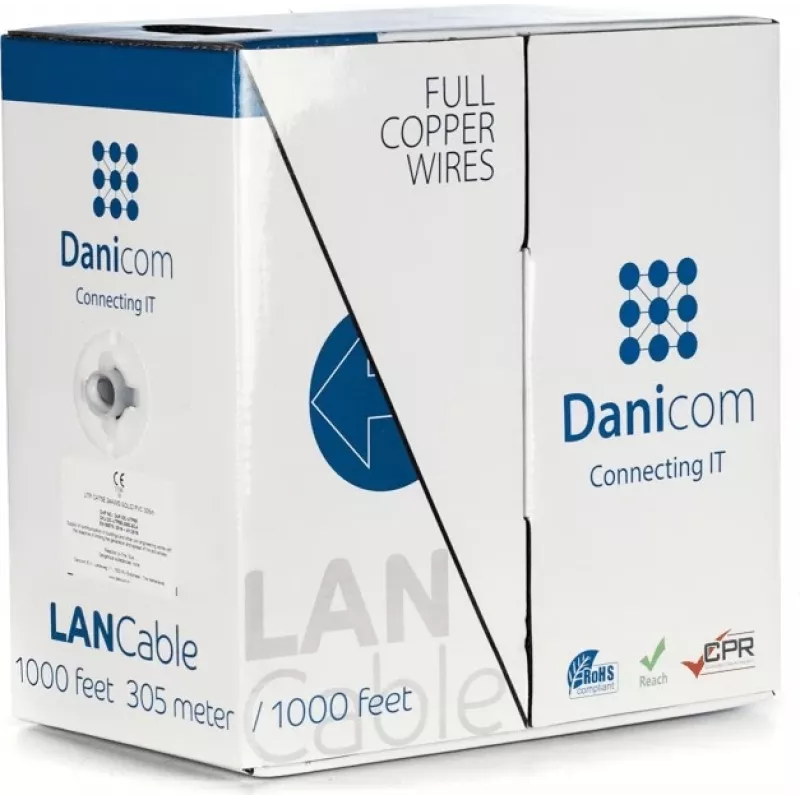

DSIT DANICOM CAT5E UTP 305m Cable de red de conductor sólido LSZH (Eca)

Running Ethernet in offices, schools, or hospitals means every metre of cable must meet strict fire-safety rules and deliver stable Gigabit speeds. The DSIT DANICOM CAT5E UTP 305m Solid Conductor LSZH (Eca) Network Cable answers both needs in one reel. Its low-smoke zero-halogen jacket limits toxic fumes and smoke during a fire, while the Eca Euroclass rating proves compliance with EU CPR regulations. Inside, four twisted pairs of 24 AWG bare copper solid conductors carry 1000BASE-T traffic up to 100 MHz, so workstations, access points, and IP cameras stay reliably connected.

Who is it for

This cable is built for professional installers and IT teams who pull permanent horizontal runs in plenum-like or densely occupied spaces. If your project requires CPR Eca documentation, LSZH sheathing, and a full 305-metre box for efficient pulling, this reel fits the bill. It is also a solid choice for structured cabling upgrades in public buildings where smoke toxicity is a concern.

Main features

• Cat5e UTP performance: 100 MHz bandwidth, Gigabit Ethernet support
• Solid bare copper conductors, 24 AWG, 4 pairs
• LSZH (Low Smoke Zero Halogen) jacket, grey
• CPR fire classification Eca
• 305-metre pull box for large installations
• Meets ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Specifications

• Cable type: UTP (Unshielded Twisted Pair)
• Category: Cat5e
• Conductor: Solid bare copper, 24 AWG
• Pairs: 4
• Length: 305 m
• Jacket: LSZH, grey
• CPR class: Eca
• Impedance: 100 Ohm ± 15%
• Outer diameter: approx. 5.0–5.2 mm
• Operating temperature: -20 °C to +60 °C
• Storage temperature: -20 °C to +75 °C
• Application: indoor horizontal cabling

Tips

When pulling this cable, keep bend radius above four times the outer diameter to protect the solid conductors. Label both ends of each run before termination, and test every link with a Cat5e certifier to guarantee Gigabit performance. Store the reel in a dry, cool place until installation.
