DSIT DANICOM CAT5E UTP 305m PVC (Fca) Cable a granel DC-UTP5E-305-FCA

Network installers pulling horizontal runs in commercial buildings reach for the DSIT DANICOM CAT5E UTP 305m PVC (Fca) bulk cable. The 305-meter pull-box keeps the cable tangle-free during long pulls, while the solid bare copper conductors hold their shape in punch-down blocks and keystone jacks.

Key specifications

• Cable category: Cat5e
• Cable shielding: U/UTP (unshielded)

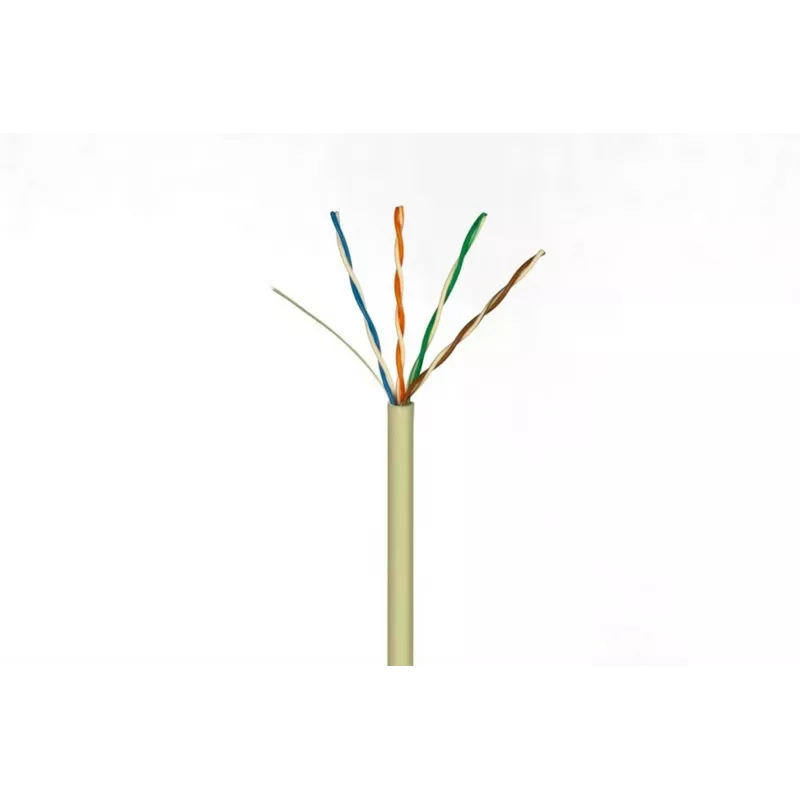

• Conductor material: Solid bare copper
• Conductor gauge: 24 AWG
• Jacket material: PVC
• Fire rating: Fca (Euroclass)
• Length: 305 m
• Colour: Grey
• Data rate: 1 Gbps
• Bandwidth: 100 MHz
• Impedance: 100 ± 15 Ohms
• Outer diameter: 5.0 mm
• Operating temperature: -20°C to +60°C
• Compliance: TIA/EIA-568-C.2, ISO/IEC 11801

Why choose it

Solid copper conductors deliver reliable PoE and Gigabit Ethernet over the full 100-meter channel. The Fca fire rating suits installations where basic flame retardancy is required, and the PVC jacket resists abrasion during pulling.

Ideal use cases

• Structured cabling in office buildings
• PoE device connections (IP cameras, access points)
• Patch panel and wall outlet termination
• Data, voice, and video distribution

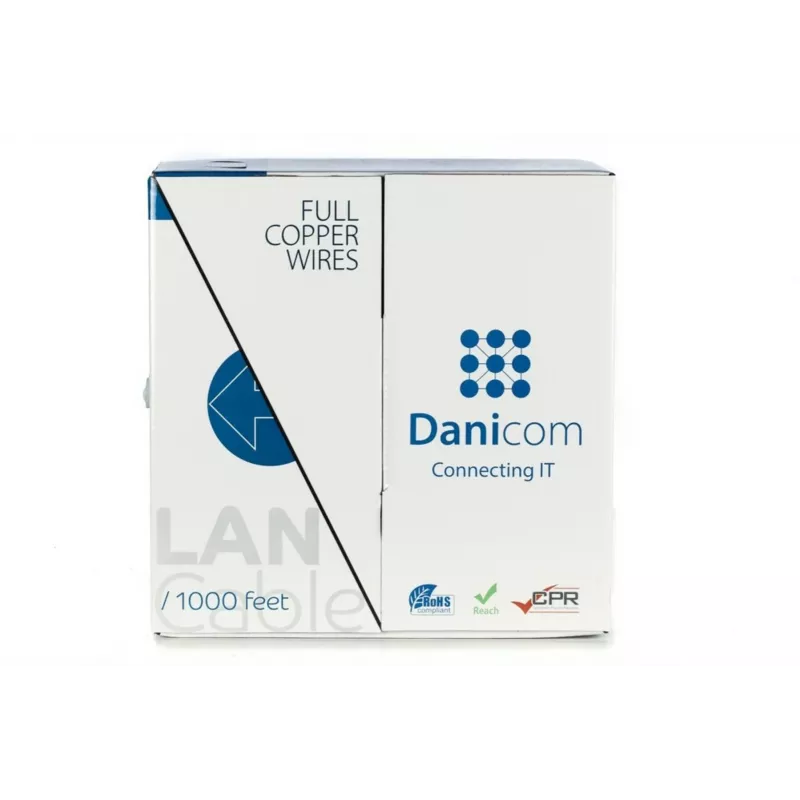

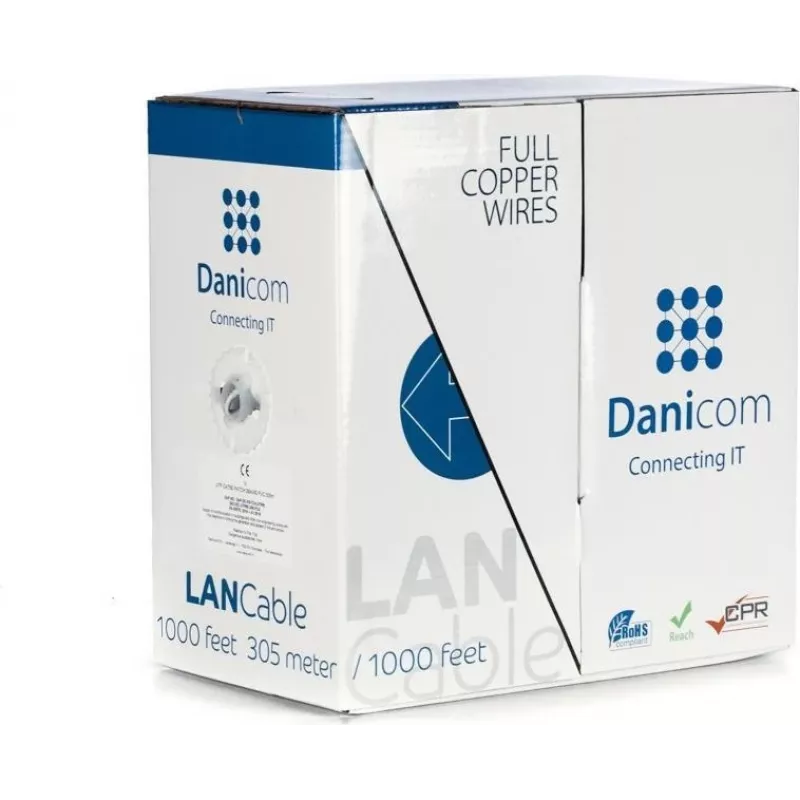

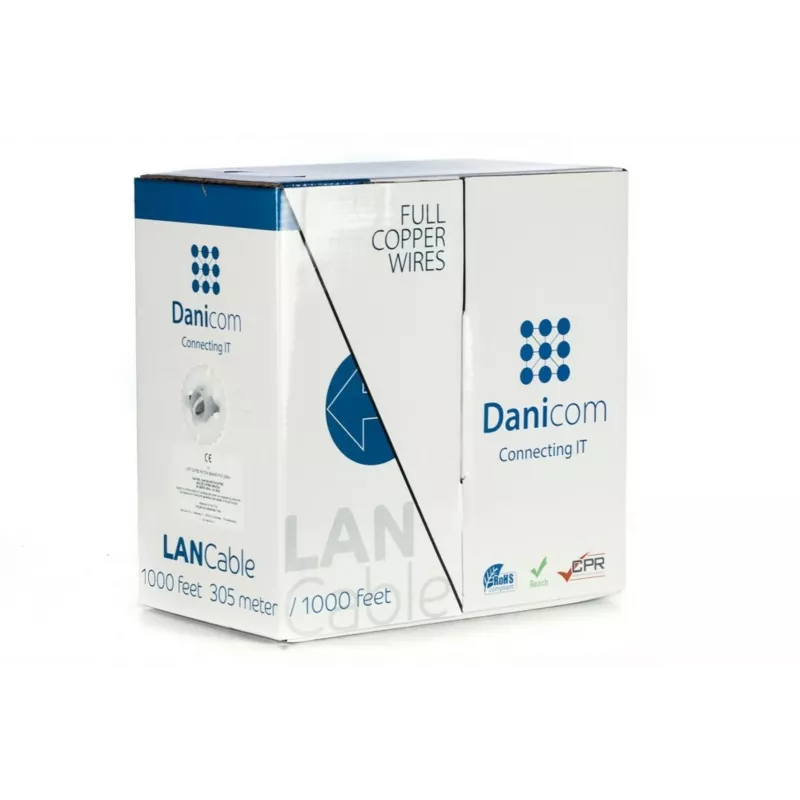

Good to know

The cable comes in a pull-box for easy dispensing. It is unshielded, so avoid running it parallel to high-voltage lines over long distances.
