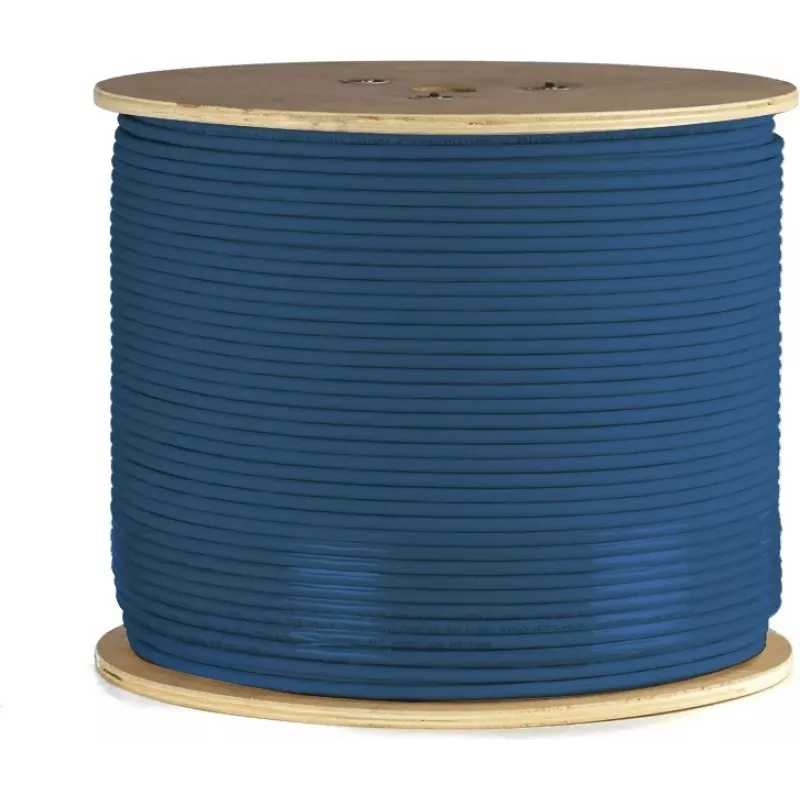

DSIT DANICOM CAT6A U/UTP 50m Cable de núcleo sólido - LSZH (Dca) - 10GBase-T, 500MHz

Installers pulling horizontal cabling in new office buildings need a cable that balances high-speed performance with safety and ease of termination. The DSIT DANICOM CAT6A U/UTP 500m Solid Conductor Cable with LSZH jacket and Dca fire rating delivers 10 Gigabit Ethernet over 500 MHz bandwidth, making it a reliable backbone for modern LANs. Its solid bare copper conductors ensure stable signal transmission over long distances, while the low smoke zero halogen jacket minimizes toxic emissions and smoke in case of fire, meeting the Dca Euroclass requirements for building safety.

Key specifications

• Category: CAT6A
• Shielding: U/UTP (unshielded twisted pair)
• Conductor: solid bare copper, 4 pairs
• Length: 500 meters on reel
• Jacket: LSZH (low smoke zero halogen)
• Fire performance: Dca (EN 50575)
• Bandwidth: 500 MHz
• Data rate: 10GBASE-T (10 Gigabit Ethernet)
• Impedance: 100 Ohm
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• PoE support: IEEE 802.3af/at/bt
• Application: indoor horizontal and structured cabling

Why choose it

This cable delivers the performance needed for high-density networks without the complexity of shielded systems. The U/UTP design is lighter and easier to terminate than shielded alternatives, reducing installation time and cost. The LSZH jacket is a critical safety feature in public buildings, offices, and residential complexes, where fire safety regulations demand low smoke and toxicity.

Ideal use cases

• Horizontal cabling from patch panel to work area outlets
• Structured cabling in commercial buildings
• High-speed backbone connections for enterprise networks
• Installations requiring Dca fire rating and LSZH compliance

Good to know

Supplied on a 500-meter reel for convenient pulling and storage. The solid conductor design is intended for fixed installations, not for frequent flexing or patch cord use. Pair with CAT6A keystone jacks and patch panels for a complete channel solution.
