DSIT Danicom CAT7 S/FTP Cable de instalación sólido 305m LSZH Dca Naranja AWG23

This CAT7 S/FTP solid installation cable delivers 10 Gigabit Ethernet performance over 100-meter runs, making it a robust backbone for high-speed networks. With individually shielded pairs (PiMF) and an overall braid, it provides exceptional resistance to alien crosstalk, ensuring reliable data transmission even in dense cable environments. The 305-meter pull box in orange LSZH jacket meets Euroclass Dca-s2,d2,a1 for low smoke and zero halogen, ideal for indoor commercial and data center applications where fire safety is paramount.

Advantages

Solid bare copper conductors (23 AWG) ensure stable performance for permanent links. The S/FTP shielding with PiMF construction virtually eliminates interference, enabling reliable 10GBASE-T transmission. The LSZH jacket reduces toxic smoke and corrosive gases in case of fire, complying with strict building codes. The Dca Euroclass rating confirms low fire hazard. The 305m reel is ideal for large installations, reducing waste and simplifying cable management.

Suitable for

• Structured cabling in office buildings and campuses
• Data centers requiring high-speed backbone links
• PoE applications up to 100W (IEEE 802.3bt) over short distances
• Horizontal and vertical cabling in riser or plenum spaces (check local codes)
• Industrial environments with electromagnetic interference

Key specifications

• Category: CAT7 (Class F)
• Shielding: S/FTP (PiMF + overall braid)
• Conductor: Solid bare copper, 23 AWG

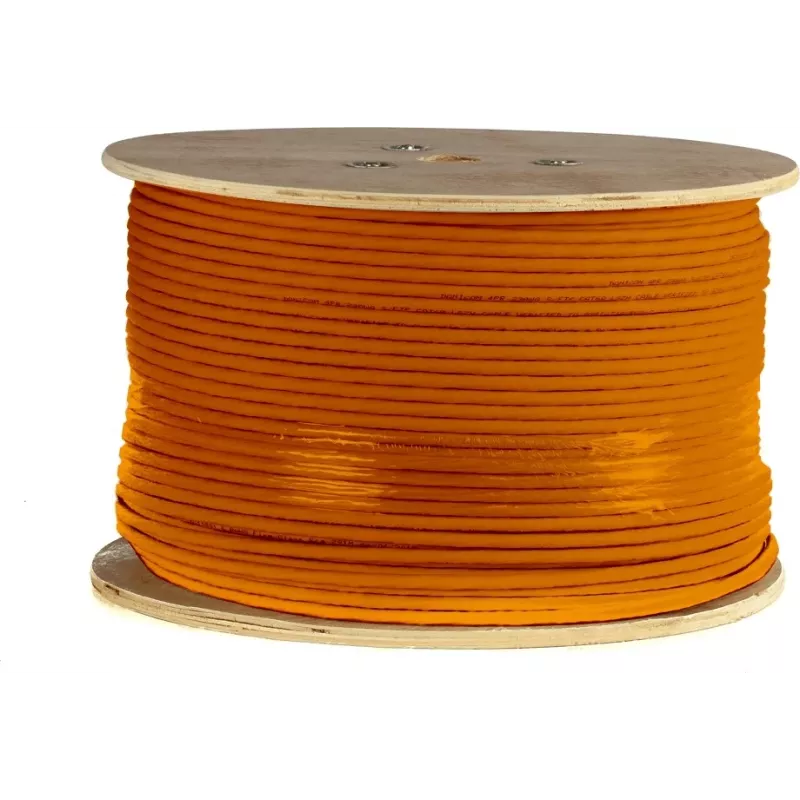

• Length: 305 m (1000 ft) on reel
• Jacket: LSZH, orange, Dca-s2,d2,a1
• Bandwidth: 600 MHz
• Impedance: 100 Ohm
• Standards: ISO/IEC 11801, EN 50173, RoHS, CE

Recommendations

For terminating this solid cable, use CAT7-compatible connectors and follow industry standards for permanent link installations.
