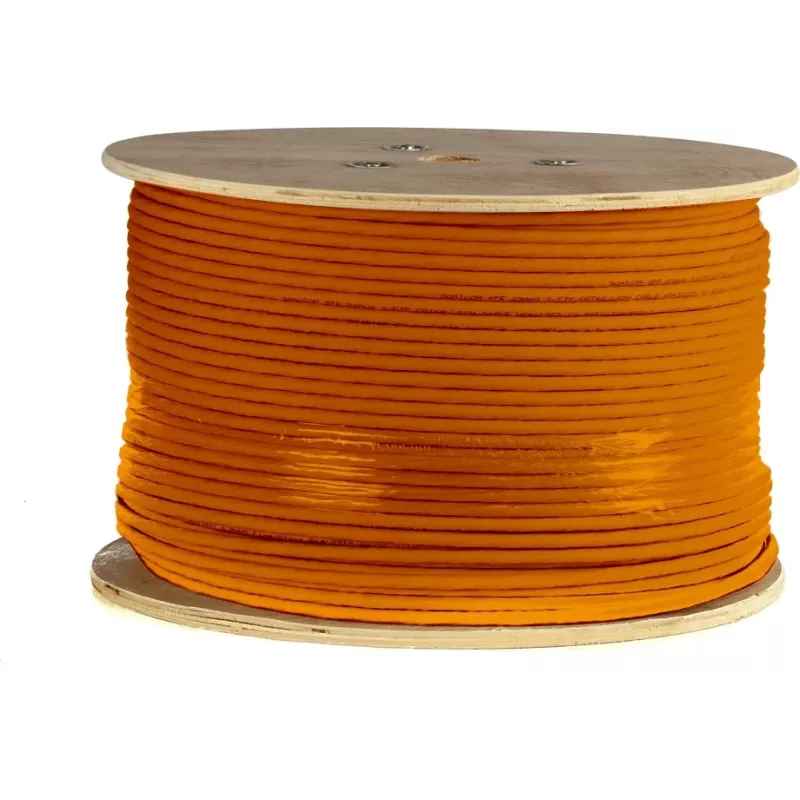

DSIT DANICOM CAT7 S/FTP cable de red de conductor macizo 500m LSZH Dca naranja

With a bandwidth of 600 MHz and support for 10 Gigabit Ethernet, this DSIT CAT7 S/FTP cable delivers backbone-grade performance for high-density indoor installations. The 500-meter drum of solid bare copper cable ensures minimal signal loss and maximum reliability for permanent links in structured cabling systems.

Overview

The DSIT DANICOM CAT7 S/FTP cable is a premium bulk network cable engineered for permanent links in structured cabling systems. With individually foiled twisted pairs and an overall braided screen, it delivers exceptional immunity to alien crosstalk and EMI, ensuring stable 10GBASE-T performance even in electrically noisy environments. The solid 23 AWG bare copper conductors provide low attenuation and superior signal integrity over long runs, while the LSZH jacket with Euroclass Dca fire rating meets stringent safety requirements for public and commercial buildings.

What stands out

• Category 7 performance with 600 MHz bandwidth, doubling the frequency of CAT6A for future-proofing.
• S/FTP shielding: each pair is individually foiled, plus an overall braided screen for maximum noise rejection.
• Solid bare copper conductors (AWG 23) ensure minimal resistance and excellent PoE efficiency.
• LSZH (Low Smoke Zero Halogen) jacket with Dca fire classification reduces toxic smoke and corrosive gas emissions in case of fire.
• Supplied on a 500-meter drum, ideal for large-scale installations with minimal waste.

Technical details

• Cable type: CAT7 S/FTP (Screened/Foiled Twisted Pair)
• Conductor: Solid bare copper, AWG 23 (0.57 mm)
• Number of pairs: 4 twisted pairs
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Euroclass fire rating: Dca
• Length: 500 meters
• Colour: Orange
• Bandwidth: Up to 600 MHz
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Impedance: 100 Ohm
• Application environment: Indoor
• Packaging: Cable drum
• Standards compliance: ISO/IEC 11801, EN 50173
• Connector type: Bulk cable (no connectors)

Our verdict

For large-scale installations demanding top-tier performance and safety, this DSIT CAT7 cable is a reliable choice, offering excellent shielding, low attenuation, and a fire-rated LSZH jacket.
