DSIT DC-Wall-In-STP6-I Toma doble RJ45 empotrable Cat. 6 apantallada, marfil

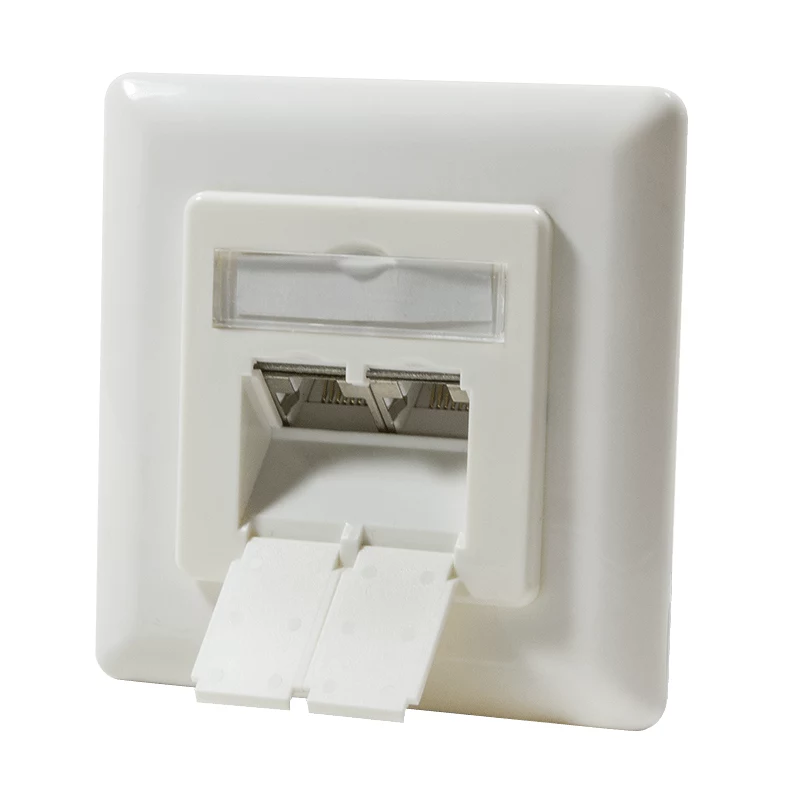

In-wall network cabling often ends in a mess of exposed wires or a single, unprotected jack. The DSIT DC-Wall-In-STP6-I flush-mount outlet gives you two shielded RJ45 ports in one clean, ivory faceplate, ready for Gigabit Ethernet and beyond.

Who is it for

Electricians, network installers, and homeowners who want a tidy, future-proof connection point for two devices at a single wall location — without surface-mount clutter.

Main features

• Category 6 / Class E performance, supporting 10GBASE-T up to 250 MHz.
• Fully shielded (STP) housing and gold-plated contacts for reliable signal integrity.
• Two RJ45 ports with integrated dust shutters to keep contacts clean when not in use.

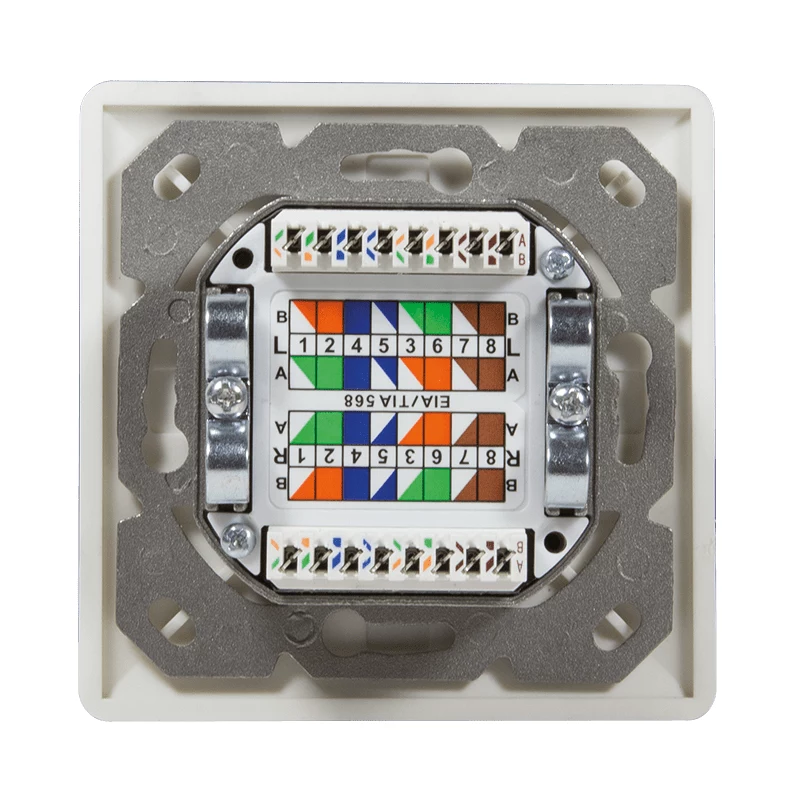

• Flush-mount design fits standard European wall boxes; LSA+ terminals for fast, tool-free termination.
• Compatible with Cat 5e, Cat 6, and Cat 6a cabling; supports TIA/EIA 568A/B wiring.

Specifications

• Product type: Network wall outlet
• Mounting type: Flush-mount (Unterputz)
• Network standard: Category 6 / Class E
• Shielding: Shielded (STP)
• Number of ports: 2
• Connector type: RJ45
• Colour: Ivory
• Max. data transfer rate: 10 Gigabit Ethernet (10GBASE-T)
• Frequency bandwidth: Up to 250 MHz
• Wiring standard: TIA/EIA 568A/B
• Termination type: LSA+ (Insulation Displacement Connector)
• Housing material: ABS plastic
• Contact material: Gold-plated contacts
• Dust protection: Integrated dust shutters
• Cable compatibility: Cat 5e, Cat 6, Cat 6a
• Application: Local Area Networks (LAN), Ethernet
• Installation compatibility: Standard flush-mount boxes

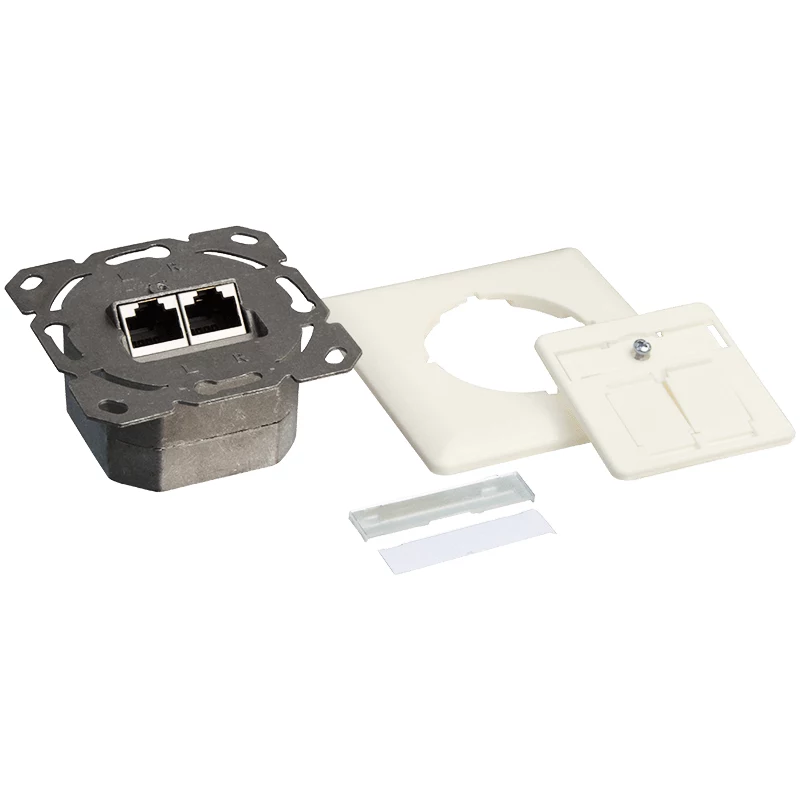

• Design: Central plate with cover frame

Tips

Pair this outlet with solid-core Cat 6 cable and a matching shielded patch panel for a complete end-to-end shielded installation. The ivory finish blends with most wall plates, but check your existing frame dimensions before ordering.
