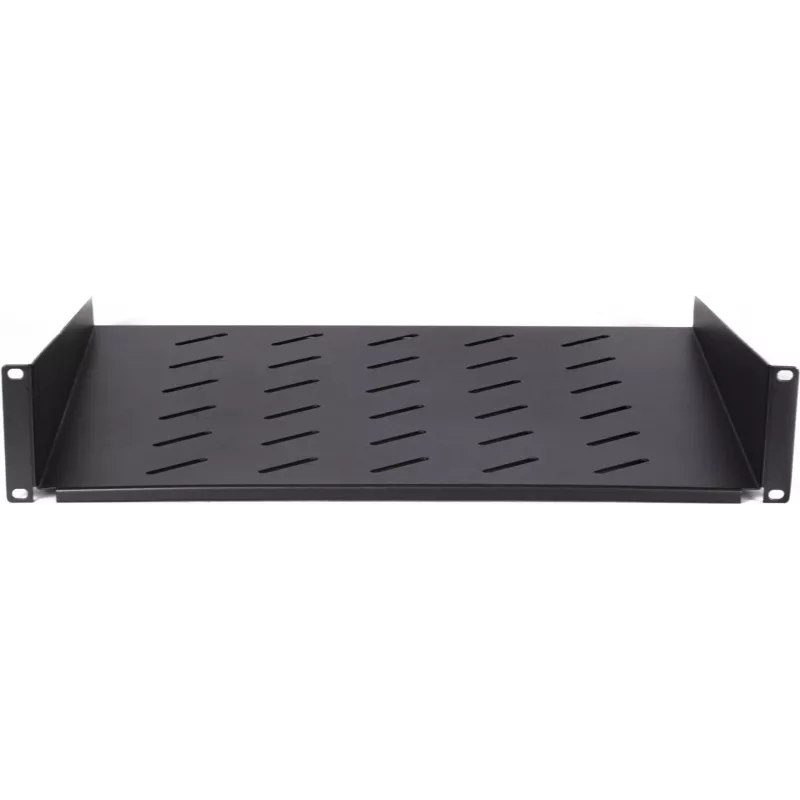

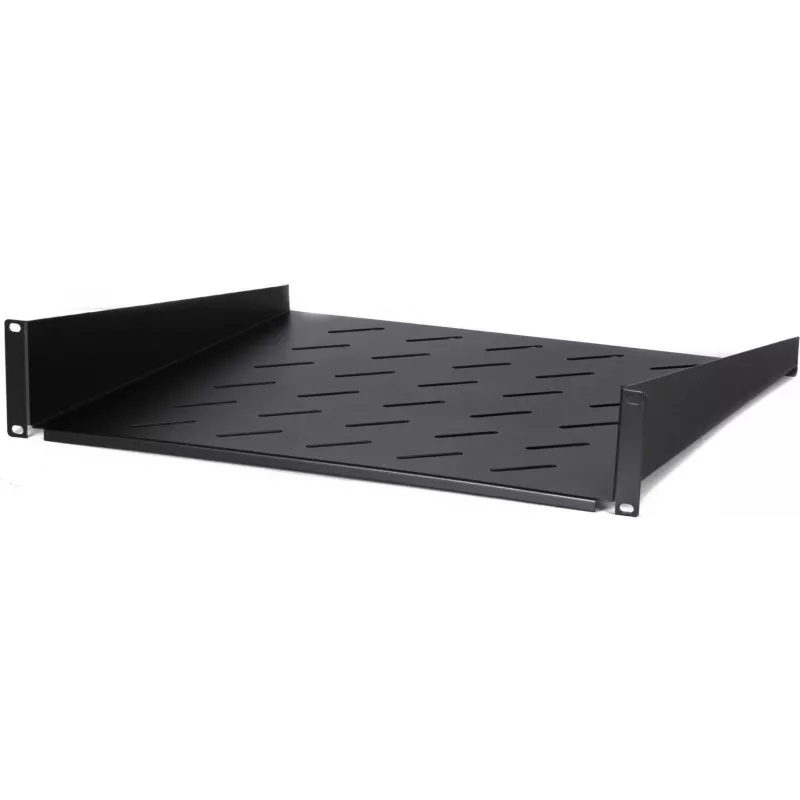

DSIT DS-FH2U450 Estante fijo 2U para armarios de pared de 600 mm de profundidad, 450 mm de profundidad, negro

Network administrators outfitting a 600mm deep wall-mounted enclosure often need a sturdy, fixed shelf to support non-rackmount equipment such as small UPS units, modems, or test instruments. The DSIT DS-FH2U450 provides exactly that: a 2U cantilever shelf with a 450mm depth, designed to fit perfectly inside 19-inch wall cabinets with a total depth of 600mm. Its solid steel construction and black powder-coated finish ensure long-term durability in office or light industrial environments.

Key specifications

• Rack unit height: 2U
• Shelf depth: 450 mm (for cabinets with 600 mm depth)
• Mounting standard: 19-inch EIA-310-D compliant
• Material: Steel with black powder coating (RAL 9005)
• Load capacity: 25 kg
• Mounting type: Fixed, front mounting with 4-point attachment
• Ventilation: Solid, non-vented shelf
• Included hardware: Mounting screws and cage nuts

Why choose it

This shelf is engineered for straightforward installation: align it with the front rails of your wall cabinet, insert the four screws, and it's ready. The 450mm depth leaves ample space at the rear for cable routing and airflow, while the 25kg load rating safely holds most peripheral devices. The black RAL 9005 finish matches standard rack aesthetics and resists scratches and corrosion.

Ideal use cases

• Mounting a compact UPS or power strip inside a wall cabinet
• Supporting a small NAS or non-rackmount switch
• Holding test equipment or KVM switches in network closets
• Creating an extra storage surface for tools or spare cables

Good to know

The shelf is not adjustable in depth and is intended for front mounting only. It is compatible with most 19-inch wall-mount racks that have a 600mm external depth. All necessary mounting hardware is included, so no additional parts are required for installation.
