DS-IT Toma Keystone CAT6 UTP sin herramientas Twist (DS-KC-UTP6-TL-T)

Terminate CAT6 UTP cable in seconds with a toolless twist mechanism — no punch-down tool required. This keystone jack supports 22-26 AWG solid or stranded conductors and delivers performance exceeding TIA/EIA-568-C.2 standards, making it ideal for high-speed Ethernet and PoE++ applications.

Overview

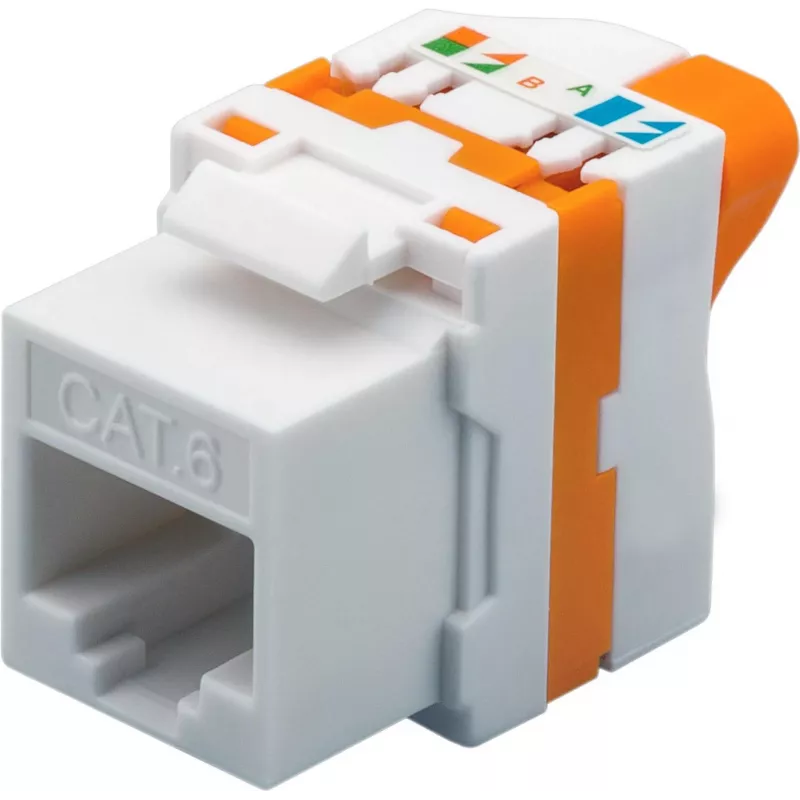

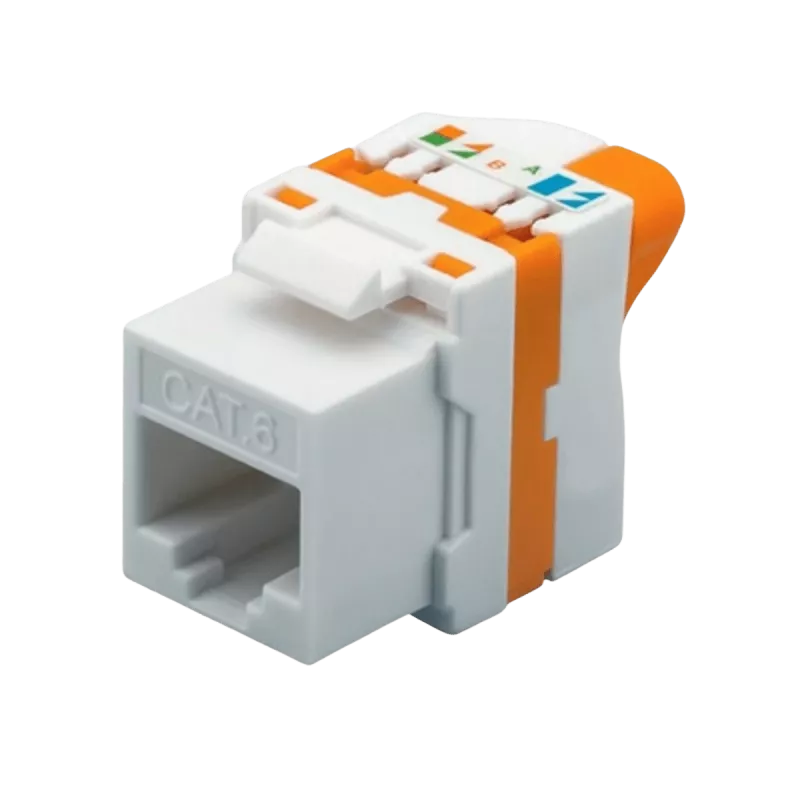

The DSIT DS-KC-UTP6-TL-T is a CAT6 UTP toolless keystone jack designed for fast, reliable network terminations. Its innovative twist cap securely locks conductors into the IDC contacts without the need for a punch-down tool, reducing installation time and ensuring consistent performance. The jack snaps into any standard keystone wall plate, patch panel, or surface mount box, providing a clean and professional finish for data networking installations.

What stands out

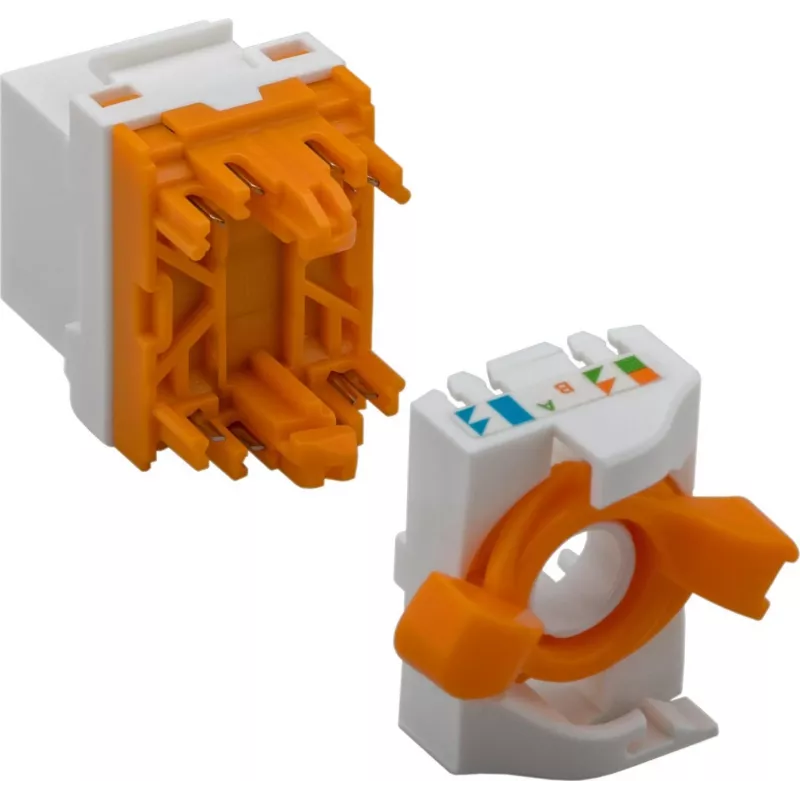

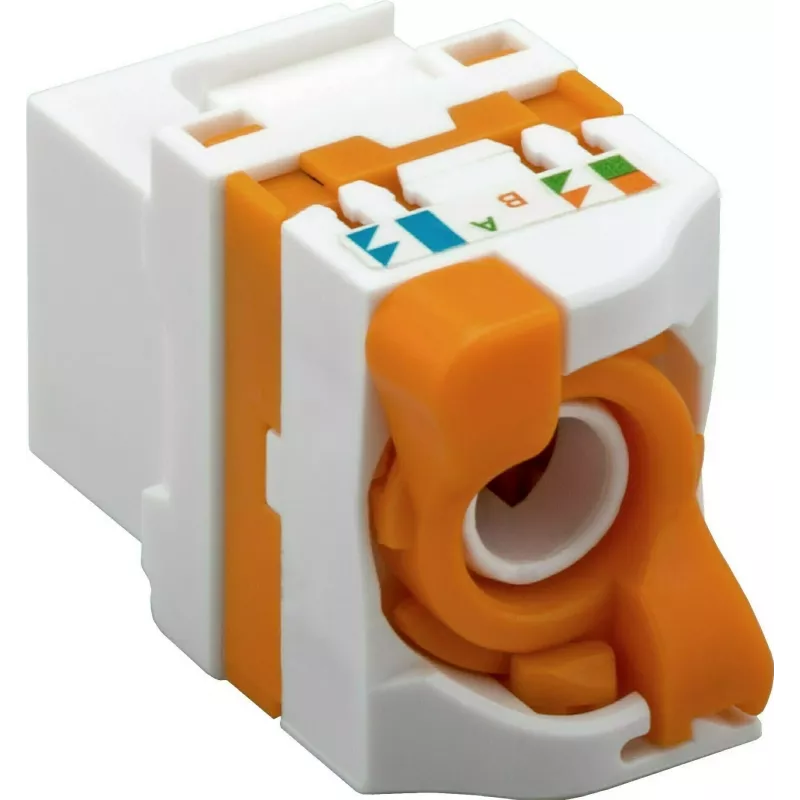

• Toolless twist termination: no punch-down tool needed, ideal for field installations
• Supports 22-26 AWG solid and stranded conductors for flexible cabling options
• Dual-coded T568A/B wiring scheme with clear color-coded labels
• 50µ" gold-plated phosphor bronze contacts for corrosion resistance and long-term reliability
• High-impact ABS housing with UL 94V-0 flammability rating for safety
• Exceeds CAT6 performance requirements, supporting Gigabit Ethernet and beyond
• PoE/PoE+/PoE++ compatible for powering devices like IP cameras and access points

Technical details

• Connector type: RJ45 female (8P8C)
• Cable category: CAT6
• Shielding: UTP (unshielded twisted pair)
• Termination: toolless IDC twist cap
• Conductor gauge: 22-26 AWG solid/stranded
• Wiring scheme: T568A/B dual-coded
• Contact material: phosphor bronze, 50µ" gold plating
• Housing material: high-impact ABS plastic
• Flammability rating: UL 94V-0
• Standards compliance: TIA/EIA-568-C.2, ISO/IEC 11801, RoHS
• Insertion cycles: ≥ 750
• Operating temperature: -10°C to 60°C
• Mounting type: snap-in (standard keystone)
• Color: white

Our verdict

The DSIT DS-KC-UTP6-TL-T combines tool-free installation with robust CAT6 performance. Its twist termination saves time on every connection, while the gold-plated contacts and durable housing ensure years of reliable service. Whether you're wiring a home office or a commercial network, this keystone jack delivers professional results without the hassle.
