DSIT DS-UH80 Bandeja deslizante para rack 1U, carga 18 kg, 640 mm de profundidad, negro

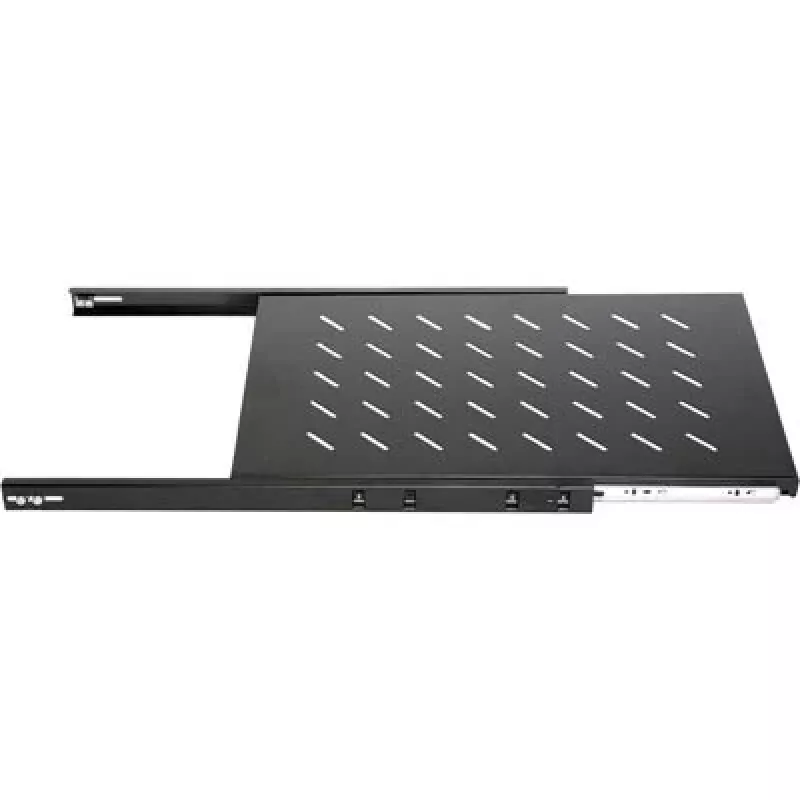

This 1U sliding rack shelf from DSIT provides a robust and convenient solution for mounting equipment in 19-inch server racks. Its extendable design with ball bearing slides allows easy access to devices for maintenance, while supporting up to 18 kg of load. The shelf is constructed from durable steel with a black finish and features a 640 mm depth, adjustable mounting depth from 650 to 900 mm, and locks securely in the closed position.

Advantages

The sliding mechanism with smooth ball bearing slides ensures effortless extension even under full load. The solid steel construction guarantees long-term reliability, and the locking feature keeps the shelf securely in place during transport or when not in use. Adjustable mounting depth offers flexibility for various rack configurations.

Suitable for

• Servers and network equipment
• UPS systems and power distribution units
• Audio/video components
• Test and measurement instruments
• Any 19-inch rack-mounted device requiring easy access

Key specifications

• Rack unit height: 1U
• Maximum load capacity: 18 kg
• Shelf depth: 640 mm
• Material: Steel
• Colour: Black
• Mounting type: 4-point (front and rear)
• Extension mechanism: Ball bearing slides
• Adjustable mounting depth: 650–900 mm
• Locking feature: Locks in closed position
• Ventilation: Solid (non-vented)

Recommendations

For optimal performance, ensure the rack's mounting rails are within the adjustable depth range and use appropriate cage nuts and screws for secure installation. Distribute the load evenly across the shelf surface.
