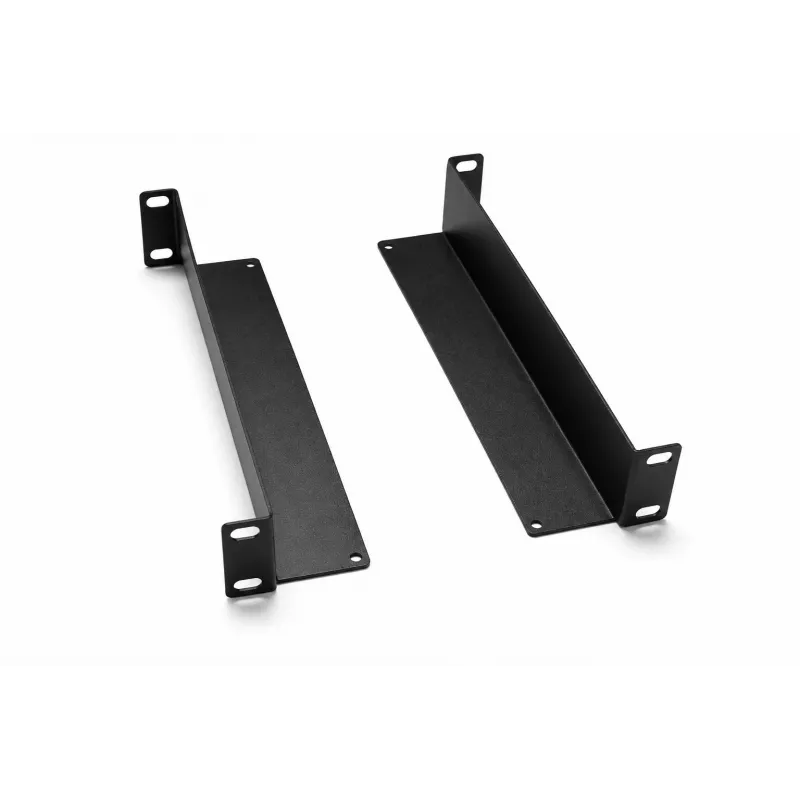

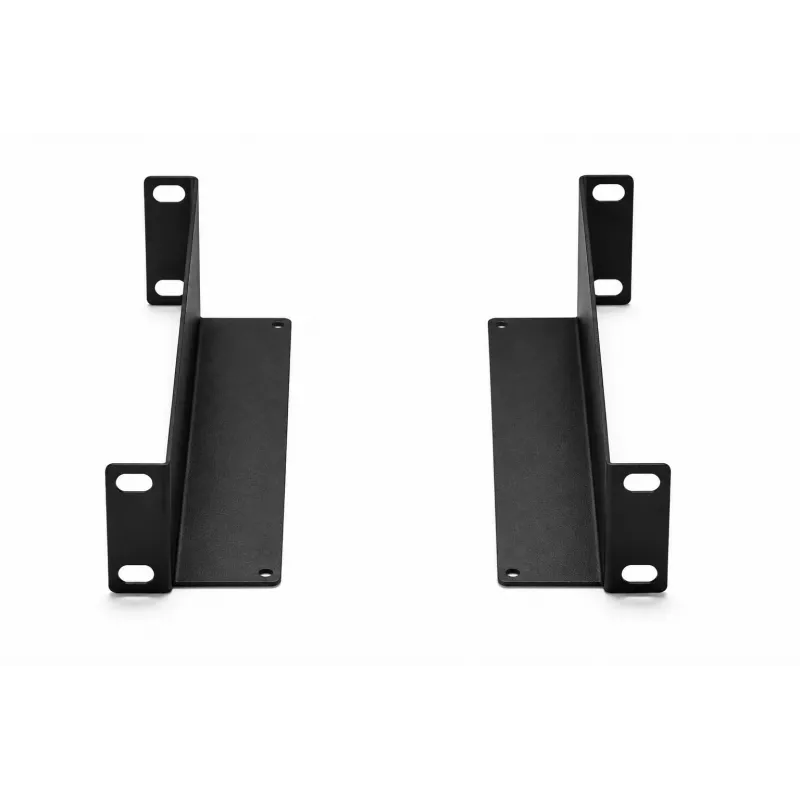

DSIT DS10-LS34 Guías de rack de 10 pulgadas para armarios de servidores de 10 pulgadas de 450 mm de profundidad – pack de 2

In compact network installations, 10-inch server cabinets often house devices that are not designed for rack mounting. The DSIT DS10-LS34 rack rails solve this by providing a stable, L-shaped support shelf for non-rackable equipment such as switches, routers, modems, or mini PCs. This set includes two steel rails, each 450 mm deep, finished in black powder coating (RAL 9005). They mount to the front and rear vertical rails of a 10-inch cabinet, creating a fixed platform that holds up to 15 kg per pair. Ideal for IT closets, small offices, and industrial enclosures where space is limited but equipment must be securely supported.

Key specifications

• Rack compatibility: 10-inch
• Cabinet depth: 450 mm
• Quantity: 2 pieces (1 pair)
• Material: Steel
• Colour: Black (RAL 9005)
• Mounting position: Front and rear
• Load capacity per pair: 15 kg
• Rail profile: L-shaped
• Unit height: 1U (approx. 44 mm)
• Mounting type: Static (non-sliding)
• Surface finish: Powder-coated
• Mounting hardware included: No
• Installation method: Screw-in (requires cage nuts/screws)
• Product series: DS10

Why choose it

These rails are specifically designed for 450 mm deep 10-inch cabinets, ensuring a precise fit. The steel construction and powder-coated finish provide durability and corrosion resistance. With a 15 kg load capacity, they can safely support a wide range of non-rackable devices, keeping your cabinet organized and equipment secure.

Ideal use cases

• Mounting small switches or routers in 10-inch network cabinets
• Supporting modems, media converters, or mini PCs in IT enclosures
• Adding a fixed shelf for power supplies or small UPS units
• Industrial control panels requiring a stable platform

Good to know

Mounting hardware (cage nuts and screws) is not included and must be purchased separately. The rails are static and do not slide; they provide a fixed support surface. Installation requires standard 10-inch rack mounting points on the front and rear of the cabinet.
