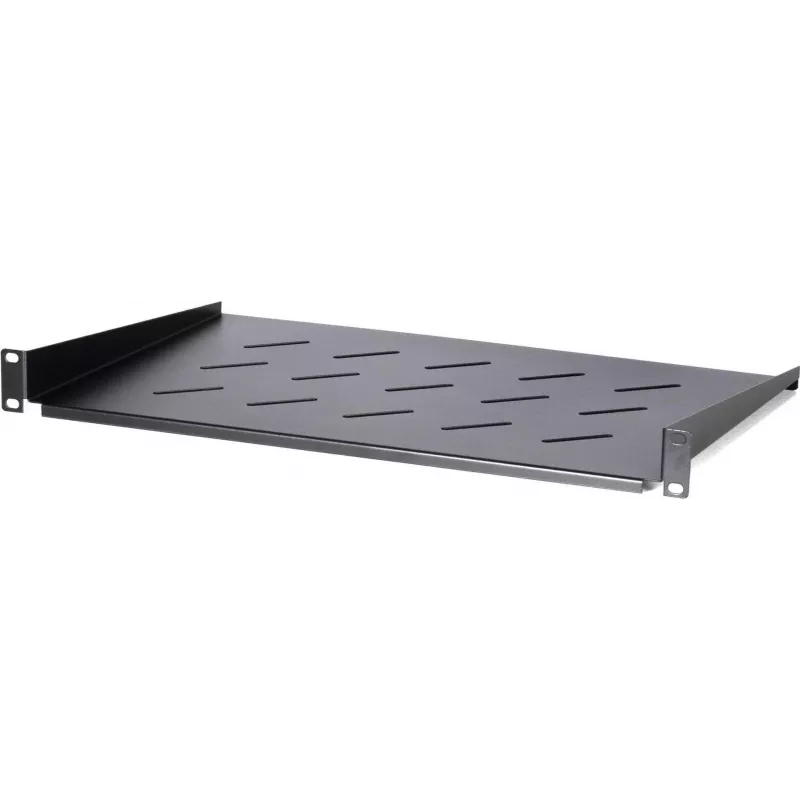

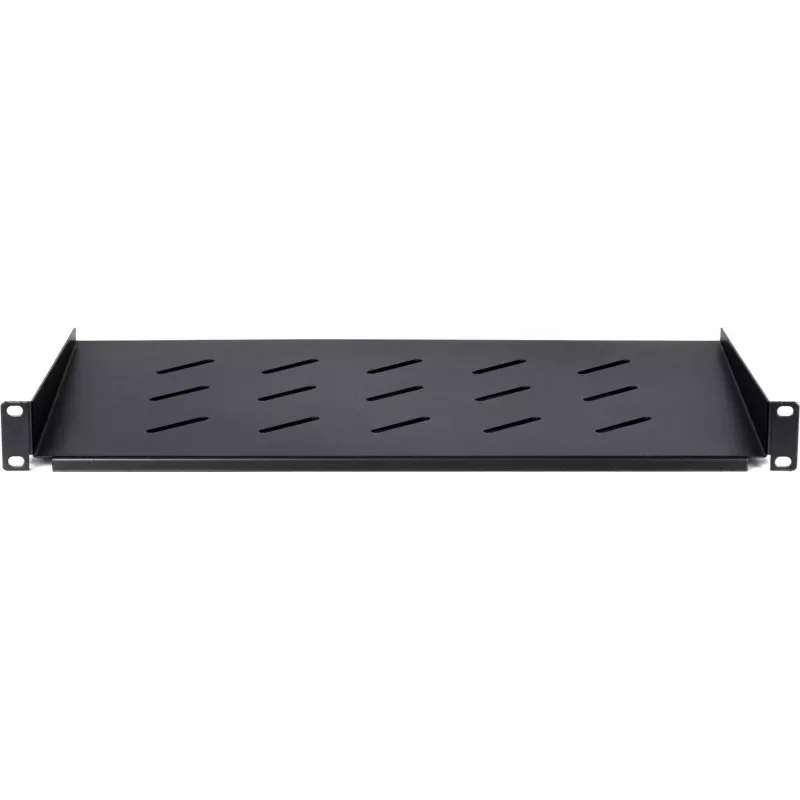

Estante fijo de rack DS-IT 1U para armarios de pared de 450 mm de profundidad, 300 mm de profundidad, negro

Wall-mounted network cabinets often lack sufficient internal storage for non-rack-mountable equipment, leading to clutter and potential damage. The DSIT DS-FH1U300 solves this by providing a sturdy, fixed shelf that securely holds devices up to 25 kg within a 19-inch rack environment. Designed for wall cabinets with a total depth of 450 mm, this 1U shelf offers a 300 mm deep platform, leaving space for cable routing at the rear.

Who is it for

This shelf is ideal for IT technicians, network installers, and facility managers who need to mount small switches, patch panels, modems, or other non-rack devices inside wall-mounted enclosures. It suits any standard 19-inch wall cabinet with a 450 mm depth, particularly the DS-IT series, but also compatible with other brands.

Main features

• Fixed 1U design for stable, vibration-free mounting
• 300 mm usable depth, optimized for 450 mm deep wall cabinets
• High load capacity of 25 kg, suitable for most small to medium devices
• Solid, non-vented steel construction with durable black powder coating (RAL 9005)
• 4-point mounting for secure front and rear installation
• Includes all necessary mounting hardware

Specifications

• Rack unit: 1U
• Shelf depth: 300 mm
• Compatible cabinet depth: 450 mm
• Rack standard: 19-inch
• Material: Steel
• Colour: Black (RAL 9005)
• Finish: Powder-coated
• Load capacity: 25 kg
• Mounting type: Fixed, 4-point
• Ventilation: Solid (non-vented)
• Overall dimensions (W x H x D): 483 x 44 x 300 mm
• Compliance: RoHS
• Included items: 1x shelf, mounting hardware

Tips

Ensure your cabinet has front and rear mounting rails spaced for a 450 mm depth. For heavier equipment, distribute weight evenly across the shelf. Use cable management accessories to keep the rear area tidy, as the shelf leaves approximately 150 mm of space behind for routing.
