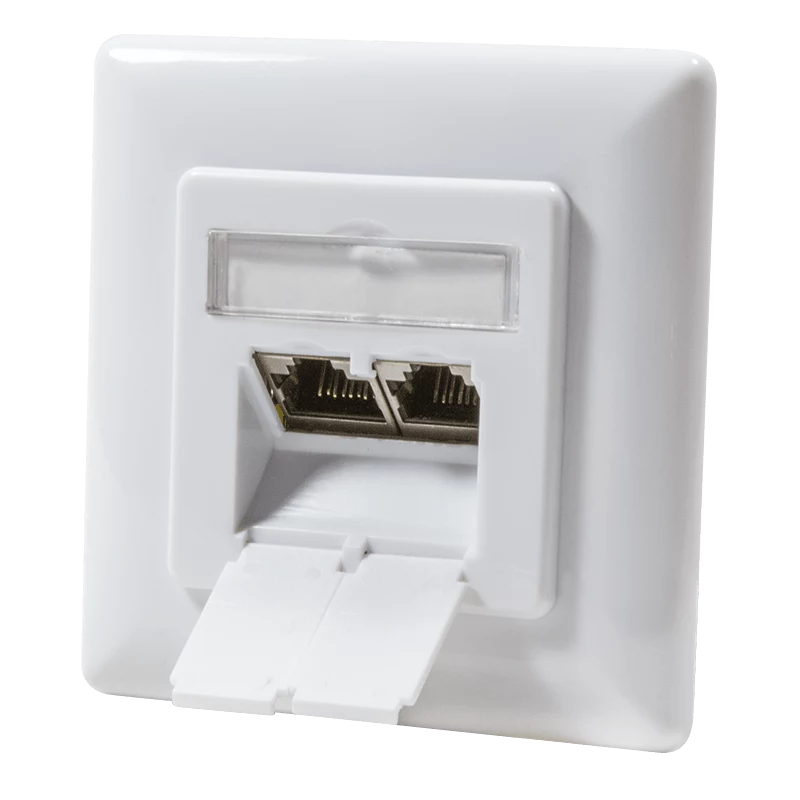

DSIT Toma de datos empotrable Cat.6 apantallada doble RJ45, Blanco

Data wall outlet with two shielded RJ45 ports for reliable 10-Gigabit Ethernet connectivity in a flush-mount design. This DSIT outlet supports Category 6 / Class E performance up to 250 MHz, ensuring high-speed data transfer for demanding network applications.

Advantages

The shielded construction (STP) minimizes electromagnetic interference, making it ideal for environments with high signal noise. Gold-plated contacts and LSA/IDC termination provide secure, corrosion-resistant connections. Integrated dust shutters protect ports when not in use, while the central plate with frame offers a clean, professional appearance.

Suitable for

• Office and commercial network installations
• Home networks with high bandwidth requirements
• Power over Ethernet (PoE) devices
• Standard flush-mount boxes with multiple cable entry options

Key specifications

• Category 6 / Class E, shielded (STP)
• 2 x RJ45 ports, dual wiring scheme TIA/EIA 568A/B
• Supports up to 10GBASE-T Ethernet
• Frequency bandwidth up to 250 MHz
• ABS plastic housing, white color
• Compliant with ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-1

Recommendations

For optimal performance, use with Category 6 shielded patch cables and ensure proper grounding of the shielded system. Install in a standard flush-mount box with sufficient depth for cable management.
