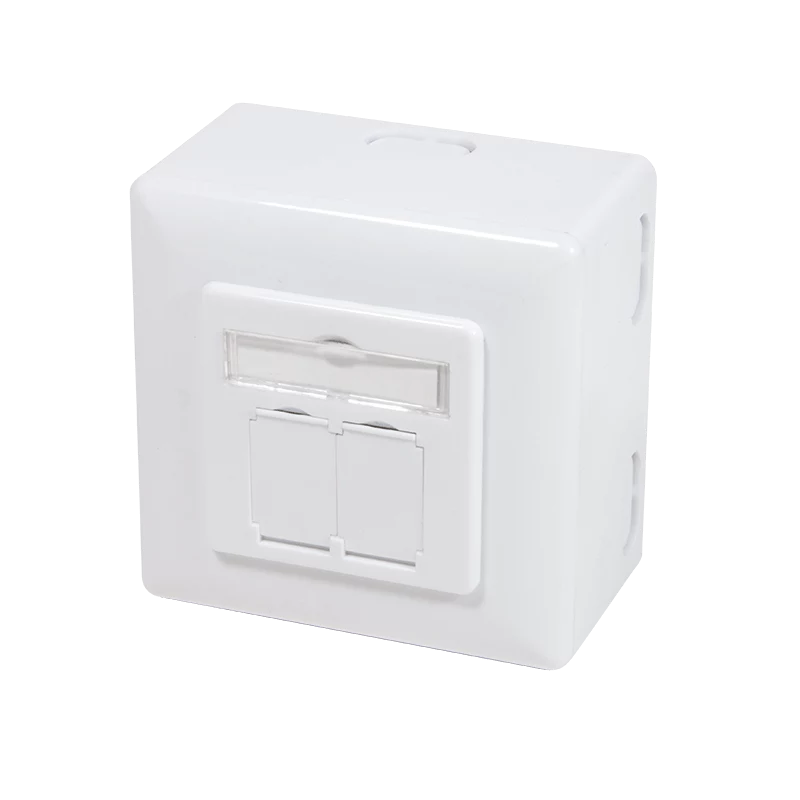

DSIT Toma de superficie Cat.6/Class E apantallada, Doble RJ45, Blanco (DC-Wall-Out-STP6-W)

For installations where in-wall boxes are impractical or inaccessible, this DSIT surface-mount outlet delivers reliable Gigabit connectivity in a compact, shielded housing. Unlike basic unshielded jacks, the fully screened Cat.6/Class E module pair suppresses alien crosstalk and EMI, making it suitable for electrically noisy environments such as industrial floors, workshops, or retrofitted offices.

Highlights

• Two shielded RJ45 ports in one surface-mount unit — connect two devices from a single cable run.
• Cat.6/Class E performance verified up to 250 MHz, supporting 1000BASE-T Gigabit Ethernet.
• Integrated dust shutters protect contacts from debris when ports are unused.
• Tool-free LSA+ / IDC termination blocks speed up installation and ensure gas-tight connections.
• Gold-plated contacts maintain low contact resistance over thousands of mating cycles.

In daily use

Mount the white ABS housing directly onto a wall, desk edge, or cable duct using the included screws and adhesive pad. The 45° angled ports reduce cable strain and keep patch cords tidy. Each port is individually shielded and colour-coded for T568A/B wiring, so both legacy and modern equipment can be terminated without confusion. The robust cover snaps securely yet opens easily for re-termination or inspection.

Full specifications

• Product type: Network wall outlet, surface mount
• Ports: 2 × RJ45, shielded
• Category: Cat.6 / Class E
• Bandwidth: Up to 250 MHz
• Transmission speed: Up to 1 Gbps (Gigabit Ethernet)
• Shielding: STP (fully shielded)
• Wiring standard: TIA/EIA 568A/B
• Termination: LSA+ / IDC, tool-free
• Contact material: Gold-plated
• Housing material: ABS plastic
• Colour: White
• Features: Integrated dust shutters, dual module design
• Compatibility: Ethernet, Fast Ethernet, Gigabit Ethernet, Power over Ethernet (PoE)

Final note

When you need a dependable, shielded dual outlet without cutting into walls, this DSIT unit offers the performance and ease of installation that professional installers expect.
