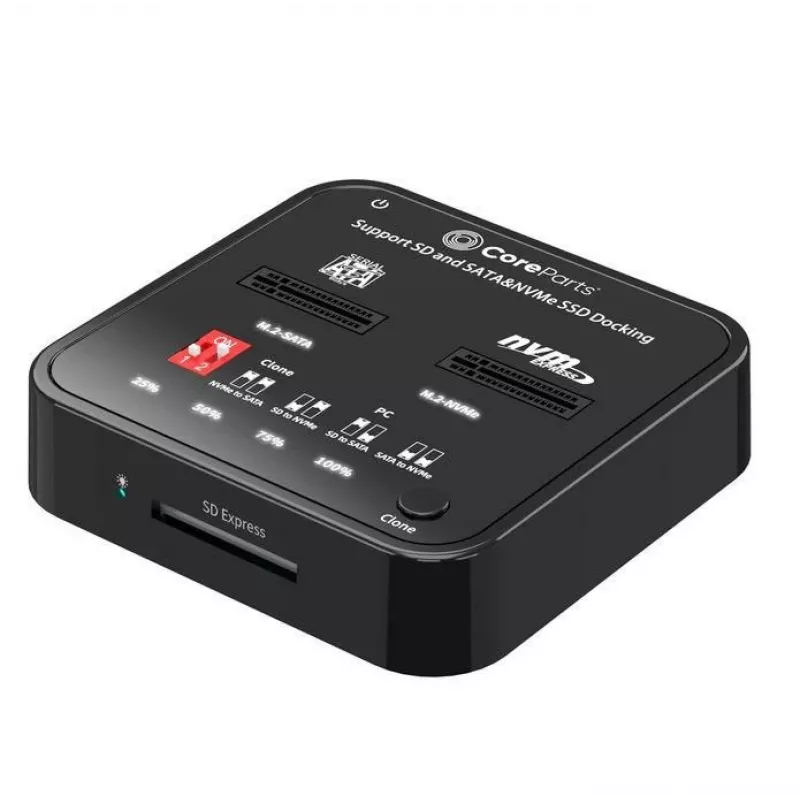

Duplicador de medios CoreParts MS-CLONER-M2-SD negro USB Type-C M.2

The CoreParts MS-CLONER-M2-SD is a SATA/NVMe M.2 dual-slot docking station with a built-in 1:1 clone function, designed for connecting two M.2 SSDs to a PC or laptop via the included USB Type-C cable. It supports B+M key SATA and M-key NVMe M.2 SSDs, offers USB 3.2 Type-C transfer speeds up to 10 Gbps, supports SD Express up to version 7.1, and provides LED indicators to show clone progress at 25%, 50%, 75% and 100%. The device is compact and powered at 5 V / 3 A with a typical power consumption of 15 W.

Advantages

The duplicator enables direct 1:1 cloning between two M.2 drives without a PC by using the clone button, simplifying backup and image preparation. Tool-free installation into the two M.2 slots makes it convenient to swap drives quickly. High-speed USB 3.2 Type-C connectivity ensures fast data transfer when connected to compatible systems. LED progress indicators provide clear feedback during cloning operations.

Suitable for

• Expanding or migrating storage between M.2 SSDs
• Creating backups and duplicating drive images
• Preparing replacement or pre-configured drives for deployment
• Data transfer between laptops, desktops and external drives

Key specifications

• Model: CoreParts MS-CLONER-M2-SD
• Interface: USB 3.2 Type-C (up to 10 Gbps)
• Supported SSD types: B+M Key SATA M.2, M-Key NVMe M.2
• SD Express support: up to version 7.1

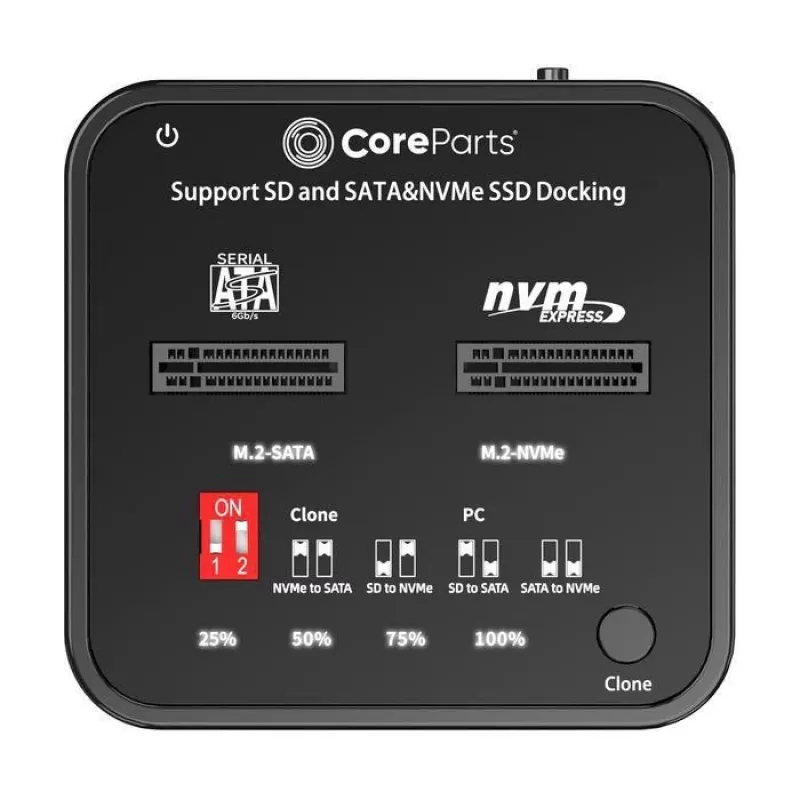

• Clone mode: 1:1 hardware cloning (clone button, LED progress at 25/50/75/100%)
• Power: 5 V / 3 A (typical consumption 15 W)
• Compatibility: Windows 7/8/10, Linux, macOS 10.2 and above
• Weight and size: approx. 200 g; package dimensions 137 × 126 × 57 mm

How to use

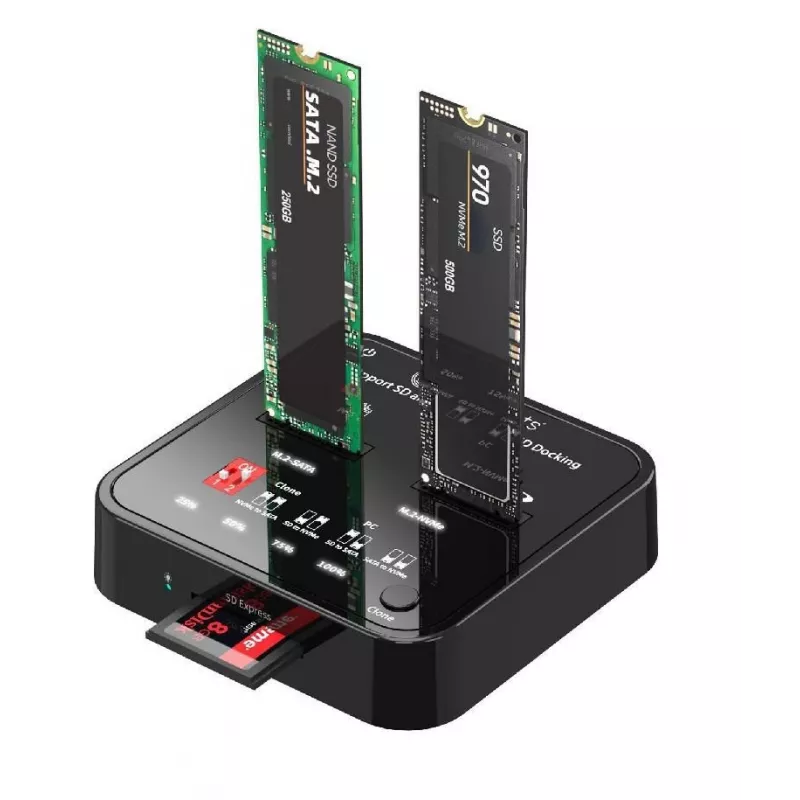

Insert the source and target M.2 SSDs into the two M.2 slots (ensure correct keying: B+M for SATA or M for NVMe). Connect the docking station to your computer with the included USB Type-C cable to use it as an external drive enclosure for file transfer or imaging. To perform a standalone clone without a PC, insert both drives, press the clone button and monitor the LED indicators until the process completes at 100%. No additional tools or accessories are required for installation.

Recommendations

Use on a stable, flat surface and ensure both SSDs are properly seated before starting cloning. Confirm drive compatibility (B+M SATA or M-key NVMe) and back up important data before cloning operations. When cloning large drives, connect to a USB 3.2 Type-C port on the host for best performance.
