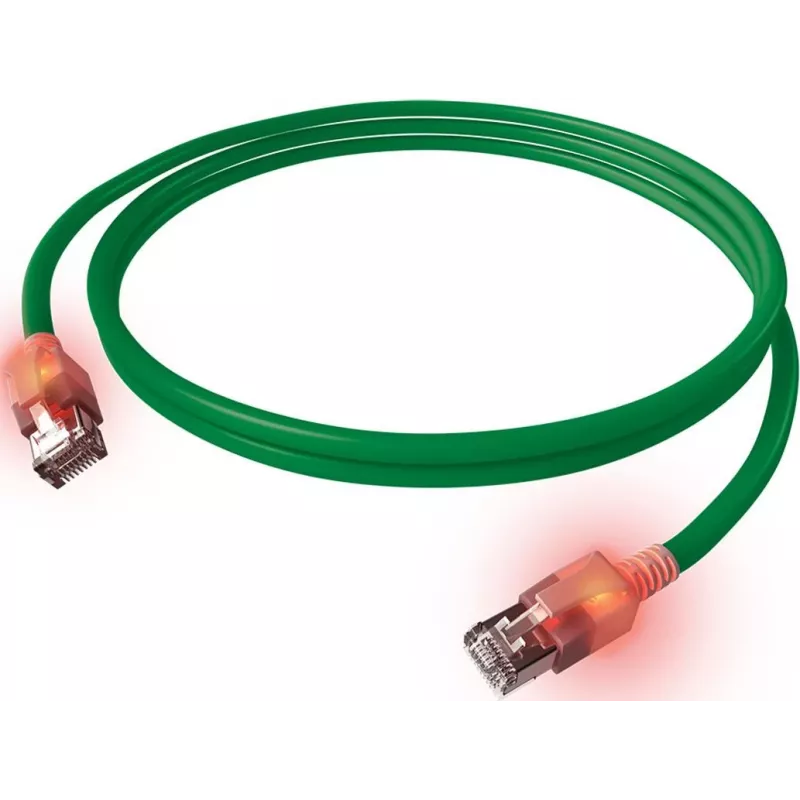

EasyLan DualBoot LED cable de parcheo RJ45 S/FTP Cat.6A (Class EA) con conector saCon - LSOH - verde - 7,5 m

The EasyLan DualBoot LED patch cable is a high-performance network cable designed for demanding professional environments. It combines robust industrial-grade saCon plugs with an integrated LED indicator for link status and boot protection, ensuring reliable connectivity and easy troubleshooting. The cable is S/FTP shielded for excellent electromagnetic interference protection and supports 10 Gigabit Ethernet over Cat.6A (Class EA) with a bandwidth of 500 MHz. The LSOH (Low Smoke Zero Halogen) jacket makes it safe for use in confined spaces, and the green color aids in color-coding installations.

Advantages

Integrated DualBoot LED provides visual link status and boot protection, reducing downtime. saCon plug offers superior robustness for frequent plugging cycles. S/FTP shielding ensures reliable data transmission in high-interference environments. LSOH jacket enhances safety in case of fire. 7.5m length offers flexibility in cabling setups.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Industrial environments where cables are frequently plugged and unplugged
• Network installations where color-coding is used for organization
• Applications demanding 10GBASE-T performance over Cat.6A

Key specifications

• Cable Type: Ethernet Patch Cable
• Ethernet Category: Cat.6A (Class EA)
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• Length: 7.5 meters
• Color: Green
• Connector Type: RJ45 Male to RJ45 Male
• Special Plug Feature: saCon plug (industrial-grade)
• Special Cable Feature: DualBoot LED (link status/boot protection)
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Conductor Material: Copper
• Conductor Gauge: AWG 26/7 (Stranded)
• Wiring Standard: TIA/EIA 568B
• Impedance: 100 Ohm
• Operating Temperature: -20°C to +60°C
• Outer Diameter: Approx. 6.2 mm
• Compliance: RoHS, CE

Recommendations

For optimal performance, pair this cable with compatible Cat.6A switches and patch panels. Ensure proper cable management to avoid kinking or sharp bends. The integrated LED can be used for quick identification of active links in dense patching fields.
