EASYLAN FixLink SL RJ45-S KS EVP 270° módulo keystone Cat. 6A (CKWAK007EP)

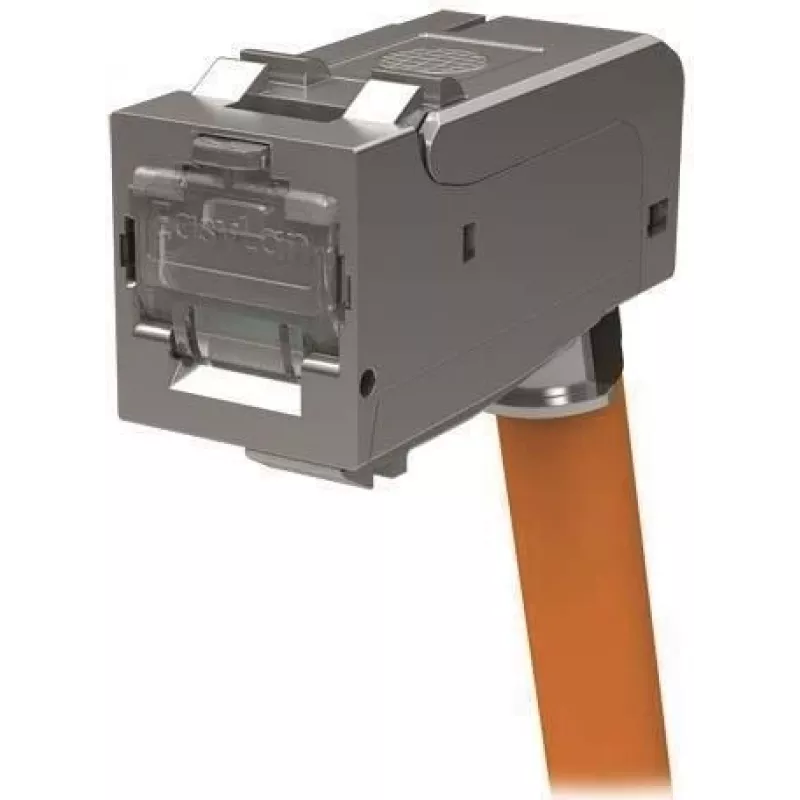

The EASYLAN FixLink SL RJ45-S KS EVP 270° Cat. 6A Keystone Module is a high-performance, shielded keystone jack designed for reliable 10 Gigabit Ethernet connections. With a 270-degree cable entry angle, it facilitates easy installation in tight spaces and angled patch panels. This tool-less, IDC termination module supports AWG 24-22 solid or stranded cables and is compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards.

Advantages

Tool-less termination saves installation time and reduces errors. The 270-degree angle allows for flexible cable routing and strain relief. Shielded zinc die-cast housing ensures excellent EMI/RFI protection. Supports PoE, PoE+, and UPoE for power over Ethernet applications.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Structured cabling systems
• High-speed Ethernet deployments up to 10 GbE

Key specifications

• Connector Type: RJ45 Jack
• Performance Category: Category 6A (Cat. 6A)
• Shielding: Shielded (STP/FTP)
• Cable Entry Angle: 270 degrees
• Wire Gauge Compatibility: AWG 24-22
• Termination Type: IDC, Tool-less
• Wiring Scheme: T568A / T568B
• Data Transfer Rate: Up to 10 Gigabit Ethernet
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• PoE Support: Yes (PoE, PoE+, UPoE)
• Mounting Standard: Keystone (19.2 x 14.9 mm)
• Number of Ports: 1
• Housing Material: Zinc Die-Cast
• Contact Plating: Gold over Nickel
• Contact Material: Phosphor Bronze
• Flammability Rating: UL 94V-0
• Operating Temperature: -10°C to 60°C
• Insertion Cycles: >750

Recommendations

For optimal performance, use with Cat. 6A shielded patch cables and ensure proper grounding. Ideal for high-density patching areas where space is limited.
