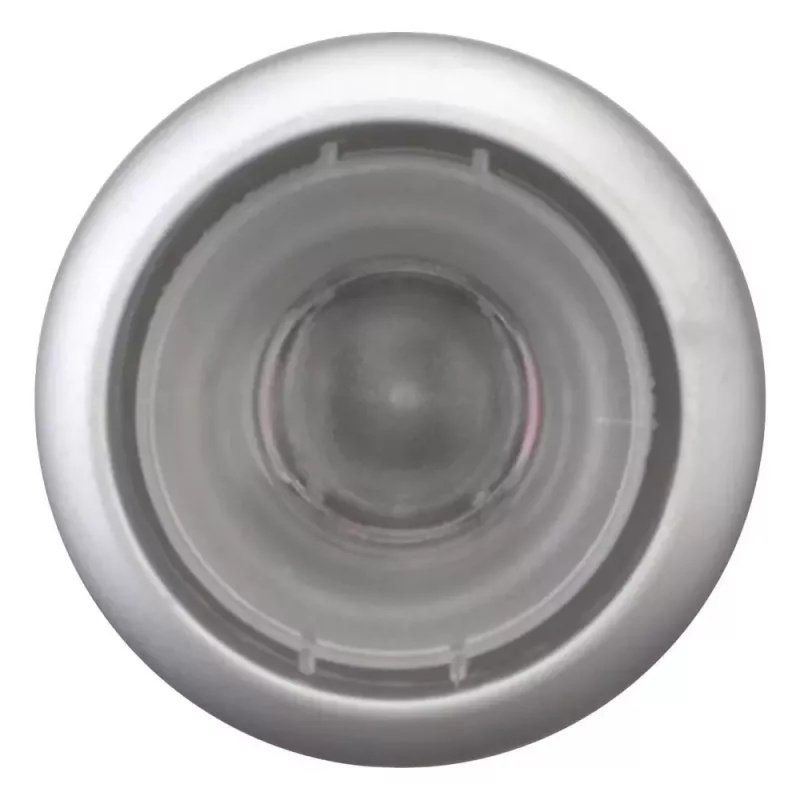

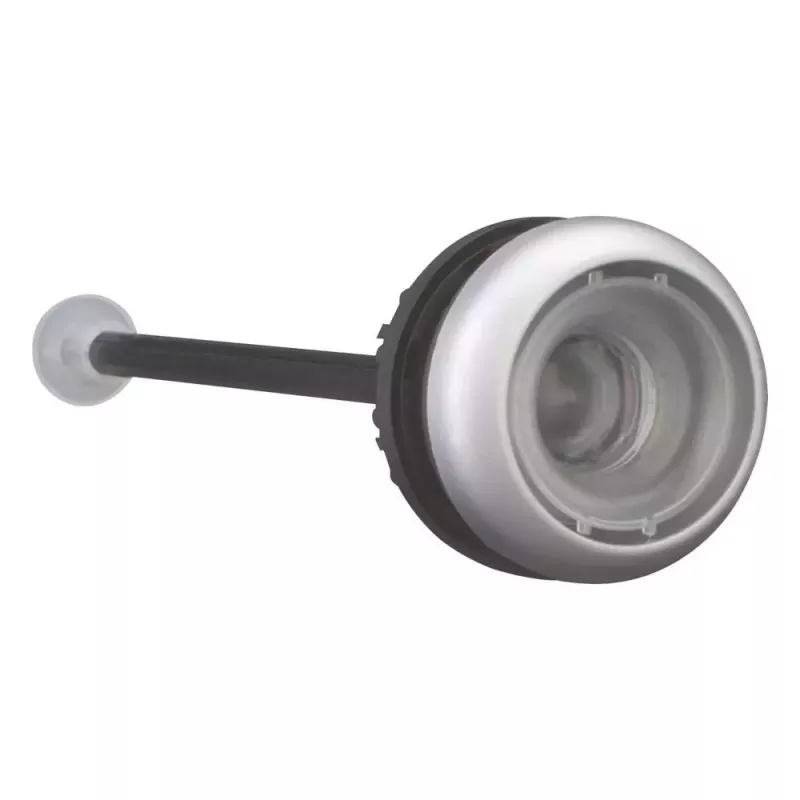

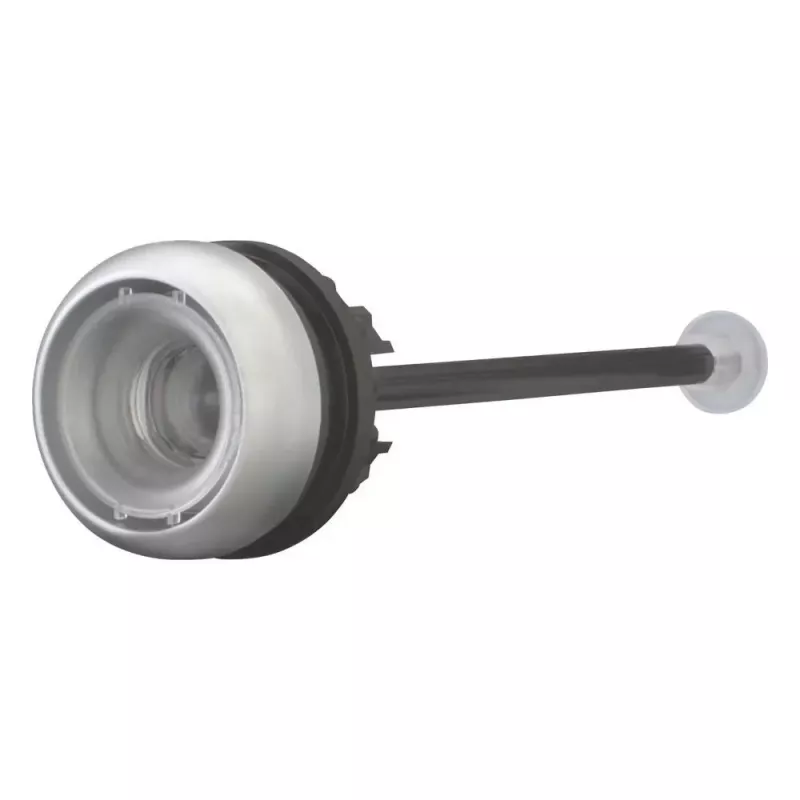

Eaton 254835 M22-DZ-X botón de desbloqueo con anillo frontal de plástico 1 ud.

Designed for Eaton Moeller M22 series control devices, this unlocking button features a robust plastic front ring and rotary release actuation, ensuring reliable operation in demanding industrial environments.

Overview

The Eaton 254835 M22-DZ-X is a front element unlocking button that releases latched pushbuttons and switches. Its 22.5 mm mounting diameter fits standard panel cutouts, and the black plastic front ring provides a secure, ergonomic grip for twist-to-release action.

What stands out

• Rotary release mechanism for quick and safe resetting of emergency stop buttons
• Durable plastic front ring resistant to harsh conditions
• Compatible with Eaton M22 control devices
• Front protection degree IP66, IP67, IP69K

Technical details

• Product type: Unlocking button
• Series: Eaton Moeller M22
• Mounting diameter: 22.5 mm
• Front ring material: Plastic
• Front ring colour: Black
• Actuation type: Rotary release
• Ambient operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Standards: IEC/EN 60947-5-1, VDE 0660 Part 200
• RoHS compliant: Yes
• Certifications: CE, UL, CSA

Our verdict

A reliable and robust unlocking button for Eaton M22 series, offering high protection and wide temperature tolerance for industrial applications.
