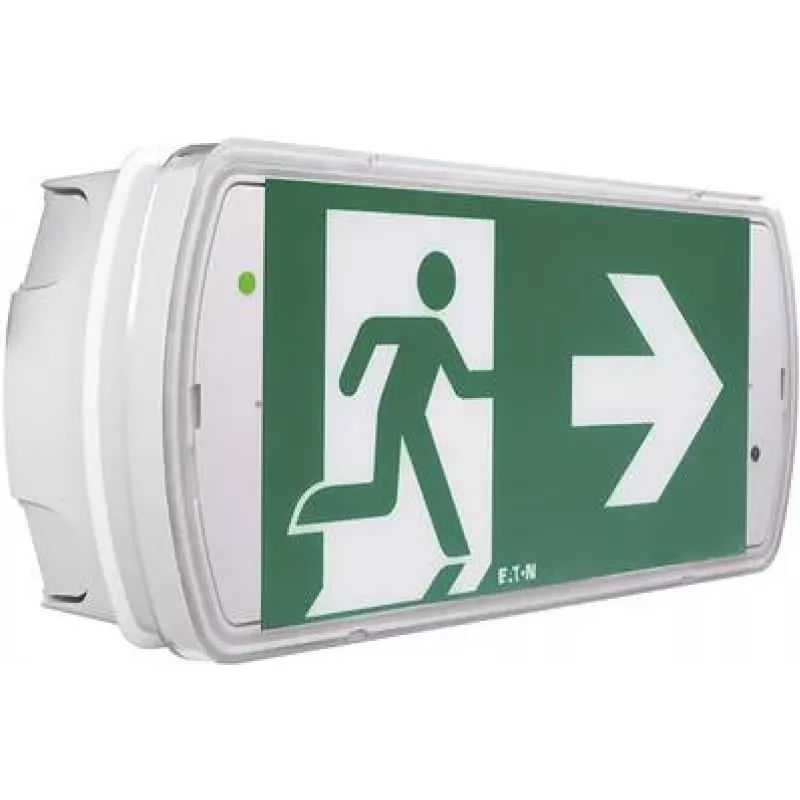

Eaton 40071349554 luminaria LED de emergencia para rutas de evacuación, montaje en techo/pared, 150 lm, 3h, autotest, blanco

LED emergency escape route luminaire for surface mounting on ceilings or walls, delivering a bright 150-lumen emergency light output with a 3-hour autonomy. Its selectable maintained/non-maintained operation and integrated self-test function make it a reliable safety component in commercial and public buildings.

Advantages

Energy-efficient LED technology with only 3.5 W mains consumption reduces operating costs while providing dependable emergency illumination. The push-in terminals allow quick, tool-free wiring for fast installation. The robust polycarbonate housing ensures durability in indoor environments.

Suitable for

• Escape route marking in offices, corridors, and stairwells
• Commercial buildings requiring self-contained emergency lighting
• Indoor applications with ambient temperatures from 0 °C to +40 °C

Key specifications

• Light source: LED, 6500 K daylight white
• Emergency luminous flux: 150 lm
• Emergency duration: 3 hours
• Operating modes: maintained (DS) or non-maintained (BS), selectable
• Rated voltage: 220–240 V AC, 50/60 Hz
• Battery: NiMH
• Self-test function (SC)
• Housing material: polycarbonate (PC)
• Protection: IP40, IK03
• Connection: push-in terminals, max 2.5 mm²

Recommendations

For reliable escape route illumination, mount this luminaire at recommended heights and ensure regular testing intervals are observed in accordance with local safety regulations.
