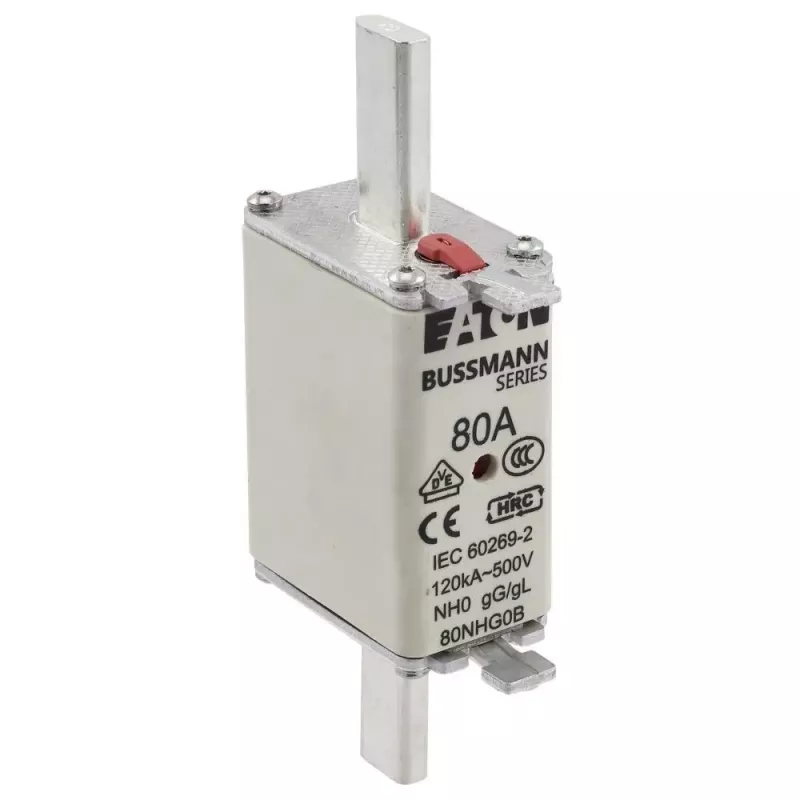

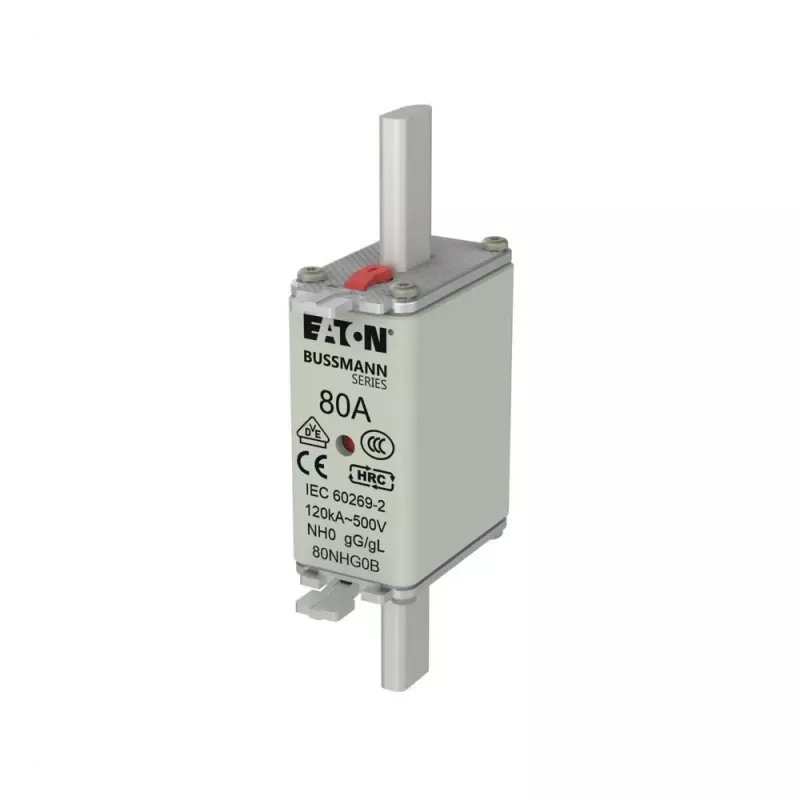

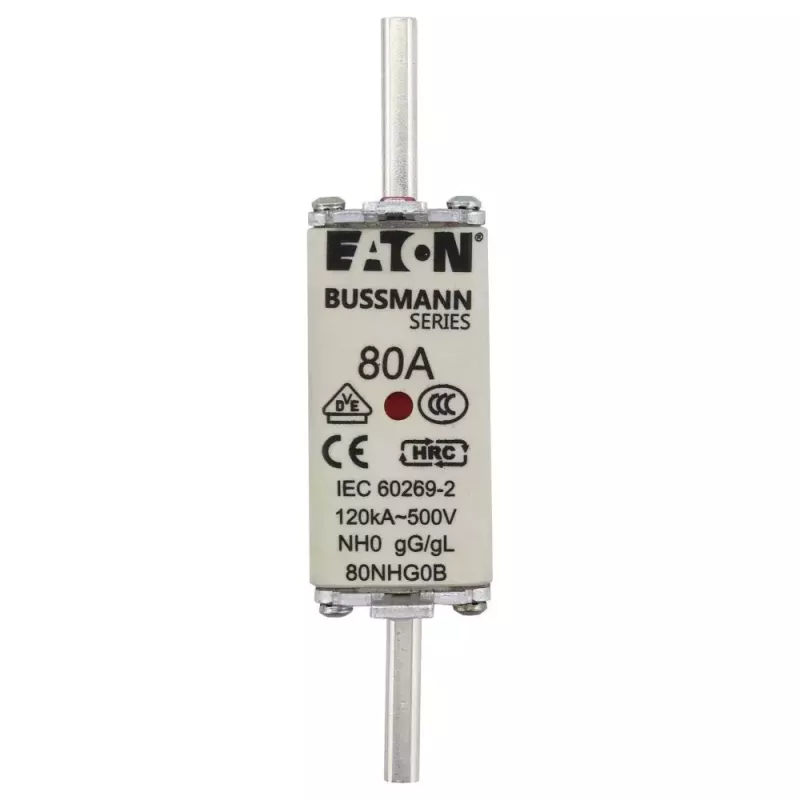

Eaton 80NHG0B fusible NH tamaño 0, 80 A, 500 V AC, gG, indicador mecánico, pack de 3

Rated for 80 A at 500 V AC with a 120 kA breaking capacity, the Eaton 80NHG0B NH fuse provides reliable overload and short-circuit protection in low-voltage distribution systems. Its size 0 blade-contact design fits standard NH fuse holders, and the mechanical indicator gives a clear visual signal when the fuse has operated.

Overview

Part of the NHG series, this fuse uses a ceramic body and silver-plated copper contacts for stable performance. It complies with IEC 60269 and is suitable for 50/60 Hz AC circuits. Each pack contains three fuses.

What stands out

• High breaking capacity of 120 kA for demanding applications
• Mechanical indicator for quick identification of a blown fuse
• General-purpose gG operating class for cable and line protection

Technical details

• Fuse type: NH fuse, size 0
• Rated current: 80 A
• Rated voltage: 500 V AC
• Operating class: gG
• Breaking capacity: 120 kA
• Standard: IEC 60269
• Mounting: blade contact
• Body material: ceramic
• Contact material: silver-plated copper
• Frequency: 50/60 Hz
• Quantity per pack: 3

Our verdict

A dependable NH fuse for industrial and commercial electrical protection, with clear status indication and robust construction.
