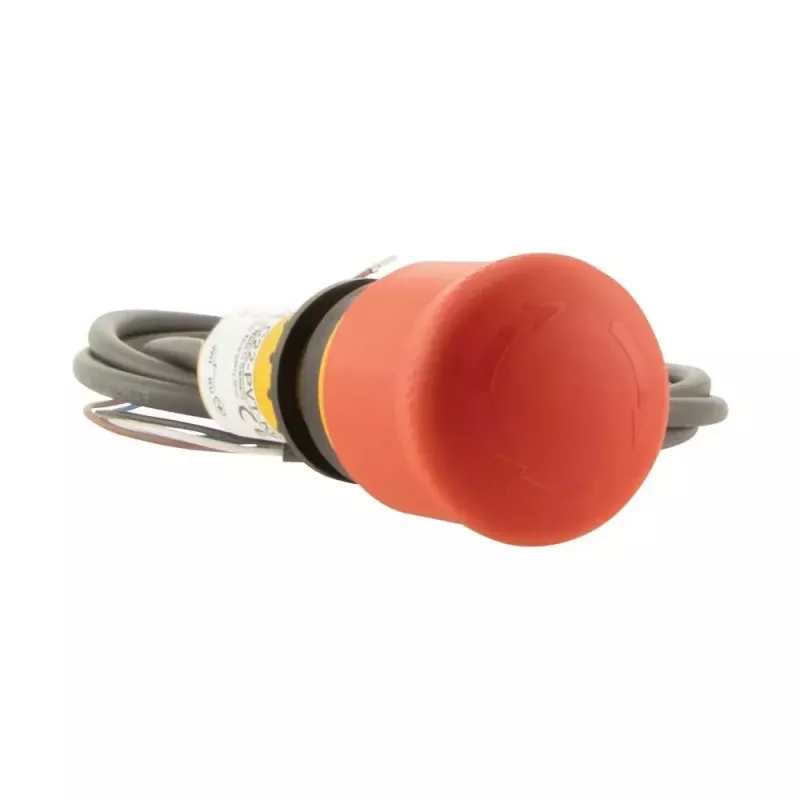

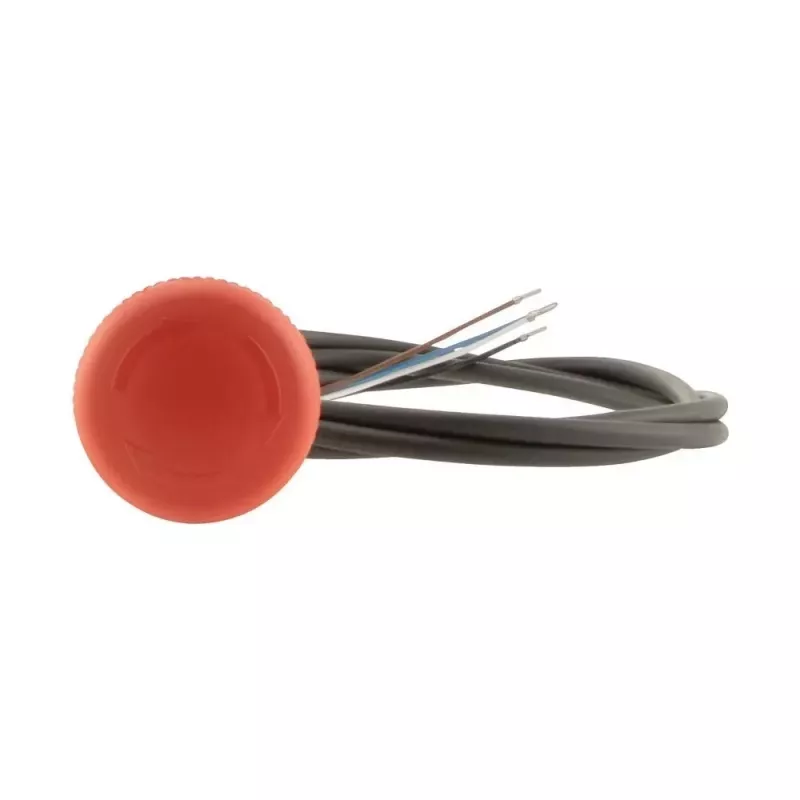

Eaton C22-PVT-K02-P62 pulsador de parada de emergencia, 24 V AC/DC, 4 A, 2 NC, desbloqueo por giro, cabezal de seta rojo, IP69K 185176

In industrial control panels and machinery, operators need a reliable way to halt equipment instantly in an emergency. The Eaton C22-PVT-K02-P62 emergency stop pushbutton provides a red mushroom-head actuator with twist-to-release reset, ensuring deliberate action to restart. With two normally closed contacts, it breaks the control circuit when pressed, stopping the machine.

Key specifications

• Product type: Emergency stop pushbutton
• Series: Eaton C22
• Actuator type: Mushroom head, red
• Contact configuration: 2 NC (normally closed)
• Reset method: Twist release
• Rated operating voltage: 24 V AC/DC
• Rated operating current: 4 A at 24 V (AC-15 and DC-13)
• Front protection rating: IP69K, IP67, IP66
• Terminal protection rating: IP20
• Mounting diameter: 22.5 mm
• Terminal type: Screw terminals
• Operating temperature: -25 to +70 °C
• Mechanical life: >100,000 operations
• Housing material: High-grade plastic

Why choose it

The C22-PVT-K02-P62 is built for harsh environments, with a front protection rating of IP69K that withstands high-pressure, high-temperature washdowns. Its twist-release mechanism prevents accidental reset, and the robust construction ensures long service life.

Ideal use cases

• Emergency stop stations on industrial machinery
• Conveyor systems and packaging lines
• Food and beverage processing equipment requiring washdown capability
• Control panels in automotive and material handling

Good to know

The device complies with IEC/EN 60947-5-1 and IEC/EN 60947-5-5, and carries CE, UL, and CSA approvals. It mounts in a standard 22.5 mm panel cutout and connects via screw terminals.
