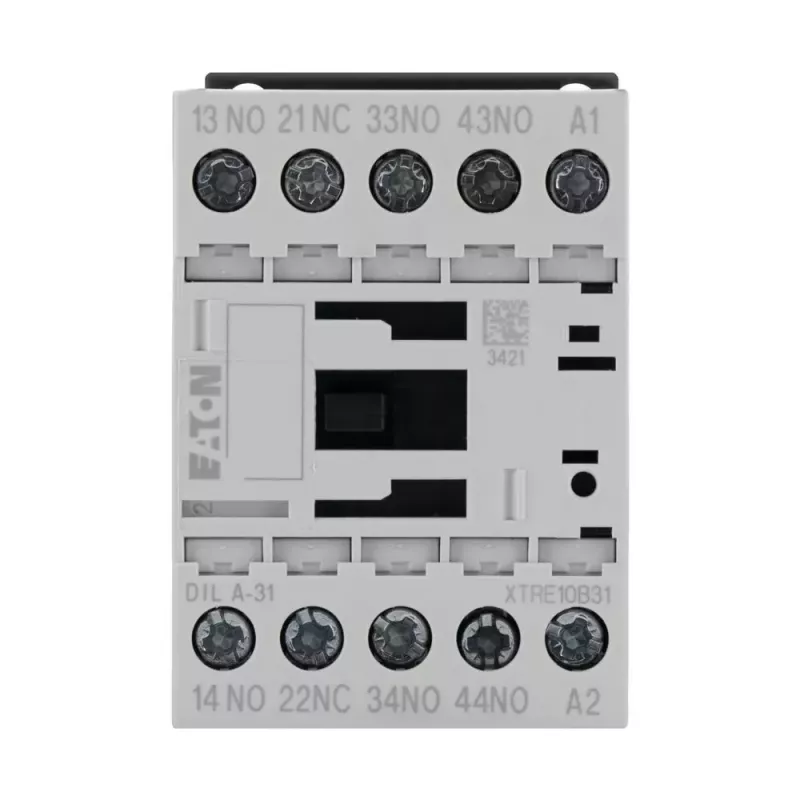

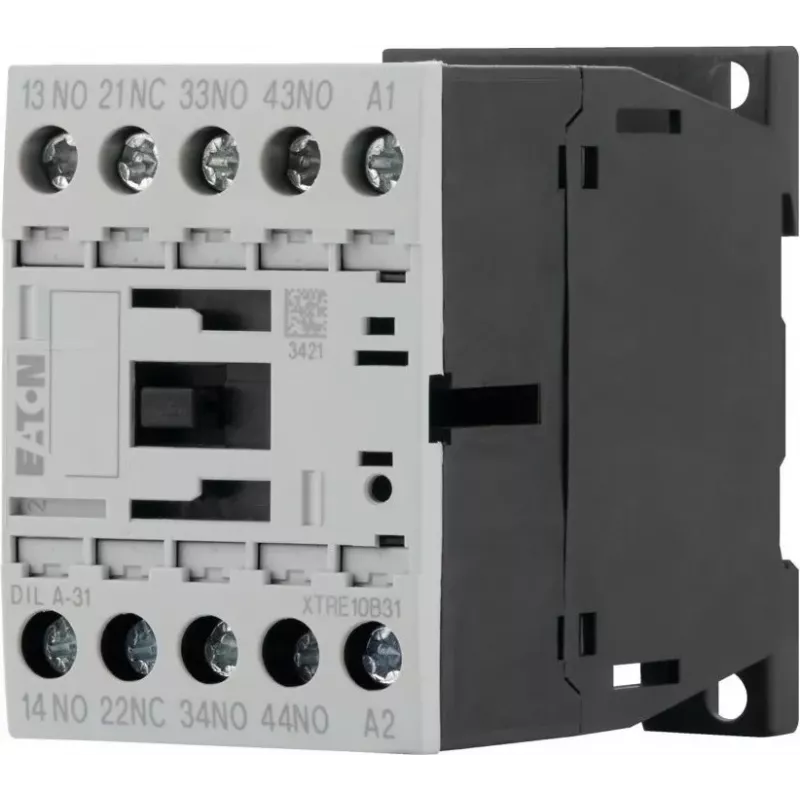

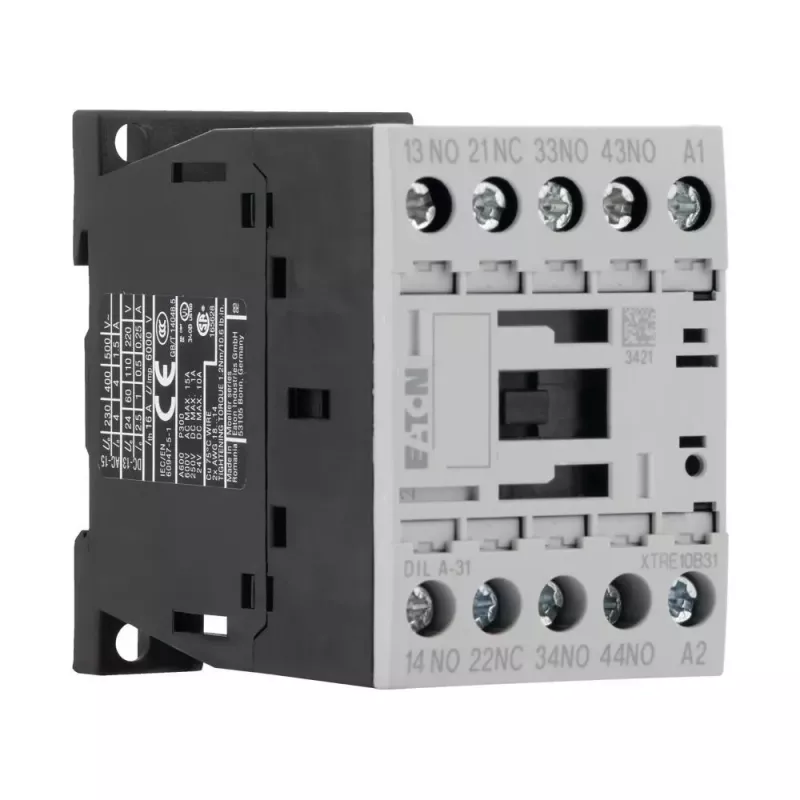

Eaton DILA-31 contactor auxiliar 24 VDC 3 NA + 1 NC bornes de tornillo 1,6 kW

Control auxiliary circuits reliably in industrial automation. The Eaton DILA-31 auxiliary contactor switches motor loads up to 1.6 kW with a 24 VDC coil. Its 3 normally open and 1 normally closed contacts handle control and signalling tasks, while screw terminals ensure secure wiring.

Who is it for

Panel builders and maintenance engineers who need a compact, DIN-rail mountable contactor for auxiliary switching in control cabinets.

Main features

• Coil voltage: 24 VDC
• Contact configuration: 3 NO + 1 NC
• Rated operational current (AC-1, 230V): 22 A
• Screw terminals
• Mounting: DIN rail or screw

Specifications

• Number of poles: 4
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mechanical durability: 10 million operations
• Electrical durability (AC-15): 1.5 million operations
• Coil power consumption (hold-in): 3.5 W
• Short-circuit protection (gG/gL fuse for AC-15): 10 A

Tips

Use with Eaton DILM contactors for coordinated auxiliary switching. Ensure coil voltage matches your control circuit.
