Eaton DILA-XHI01-S bloque de contactos auxiliares, 1 NC, montaje frontal, bornes de tornillo 115949

Rated for up to 690 V AC and 220 V DC, the Eaton DILA-XHI01-S auxiliary contact block delivers reliable signal switching in demanding control circuits. Its single normally closed (NC) contact supports AC-15 loads up to 6 A at 230 V, making it a robust choice for industrial automation.

Overview

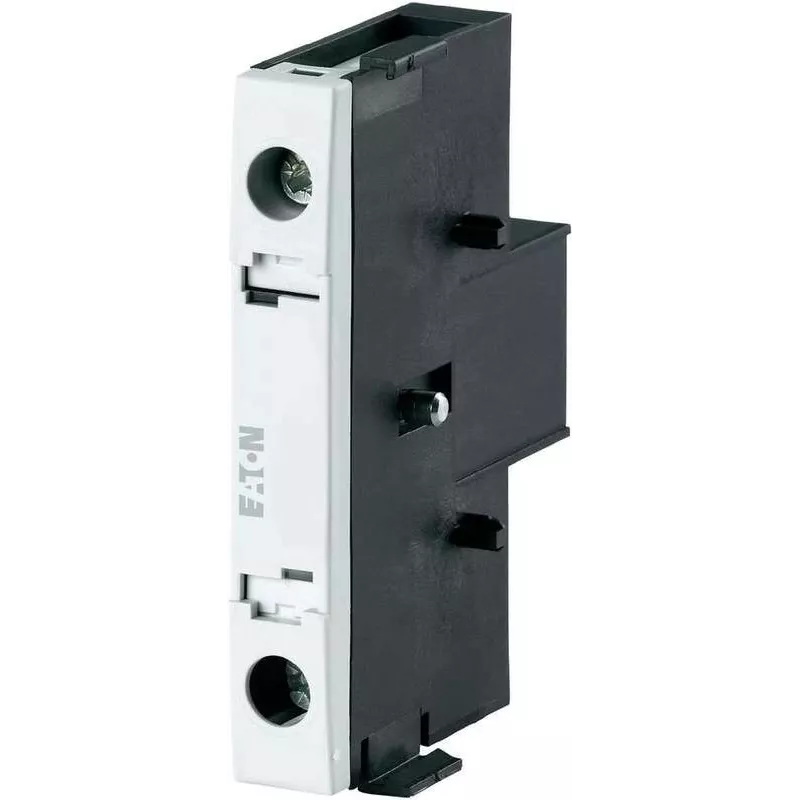

The DILA-XHI01-S is a front-mounting auxiliary contact block from Eaton's DILA series, designed for seamless integration with DILM contactors and DILA auxiliary relays. The screw terminal connection ensures secure wiring, while the compact 1-pole design saves space in control panels.

What stands out

• High switching capacity: 6 A at 230 V AC (AC-15) and 1 A at 220 V DC (DC-13).
• Wide operating temperature range from -25 to +60 °C.
• Long mechanical life of 10 million operations.
• Rated insulation voltage of 690 V AC and impulse withstand of 6 kV.

Technical details

• Contact configuration: 1 NC (normally closed).
• Mounting: front mounting.
• Terminal type: screw terminals.
• Rated operational voltage: up to 690 V AC / 220 V DC.
• Rated insulation voltage: 690 V AC.
• Rated impulse withstand voltage: 6 kV.
• Rated operational current (AC-15, 230 V): 6 A.
• Rated operational current (AC-15, 400 V): 3 A.
• Rated operational current (DC-13, 220 V): 1 A.
• Degree of protection: IP20.
• Standards: IEC/EN 60947-5-1, VDE 0660.
• Compatibility: Eaton DILM contactors, DILA auxiliary relays.
• Number of poles: 1-pole.
• Operating temperature range: -25 to +60 °C.
• Storage temperature range: -40 to +80 °C.
• Electrical life (AC-15): 1.5 x 10^6 operations.
• Mechanical life: 10 x 10^6 operations.

Our verdict

The Eaton DILA-XHI01-S offers dependable auxiliary switching with high electrical endurance, ideal for motor control and signaling applications where space and reliability matter.
