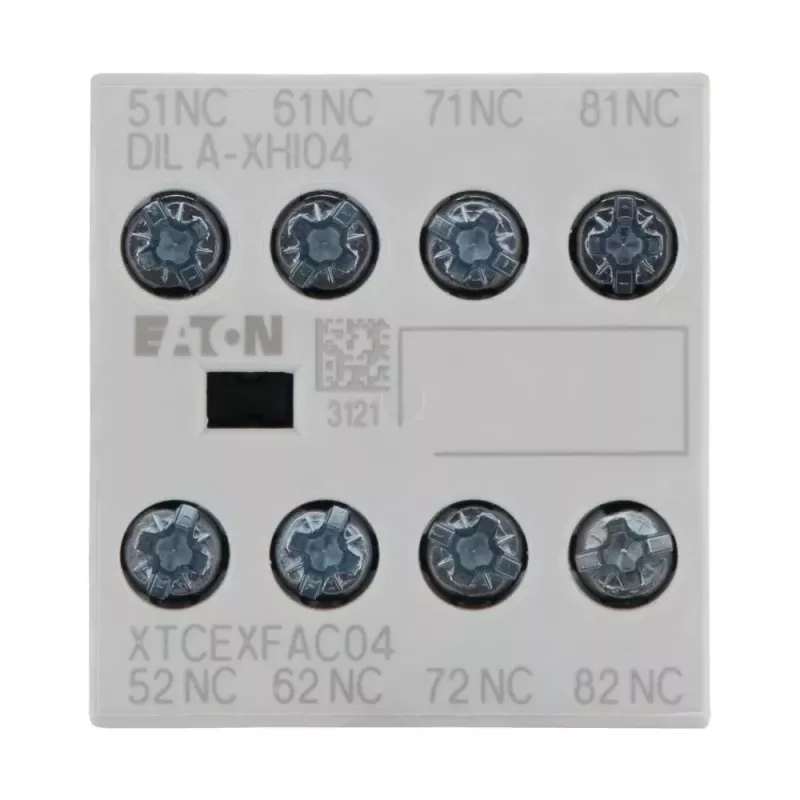

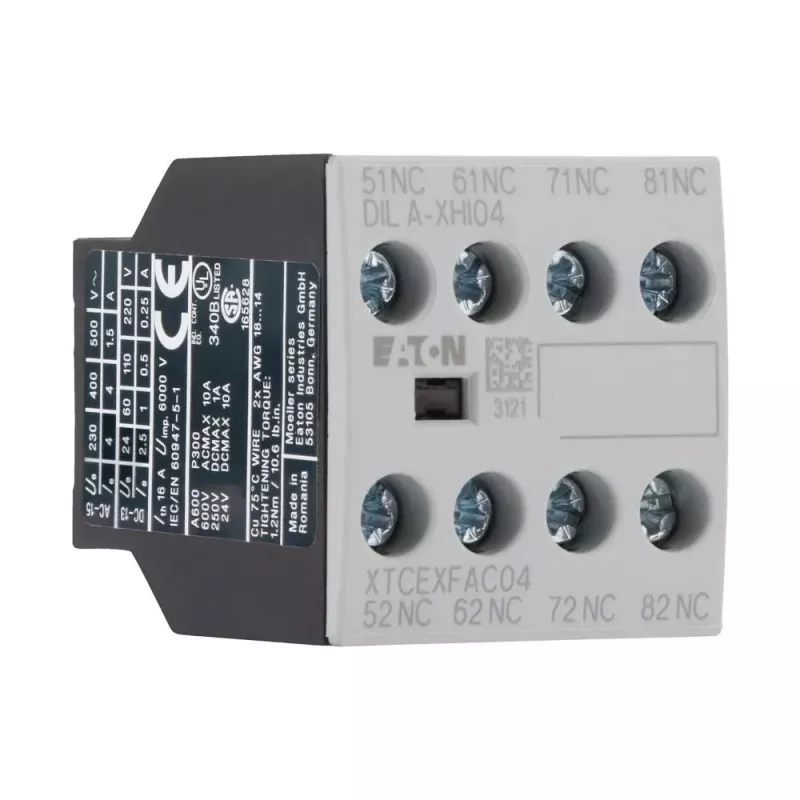

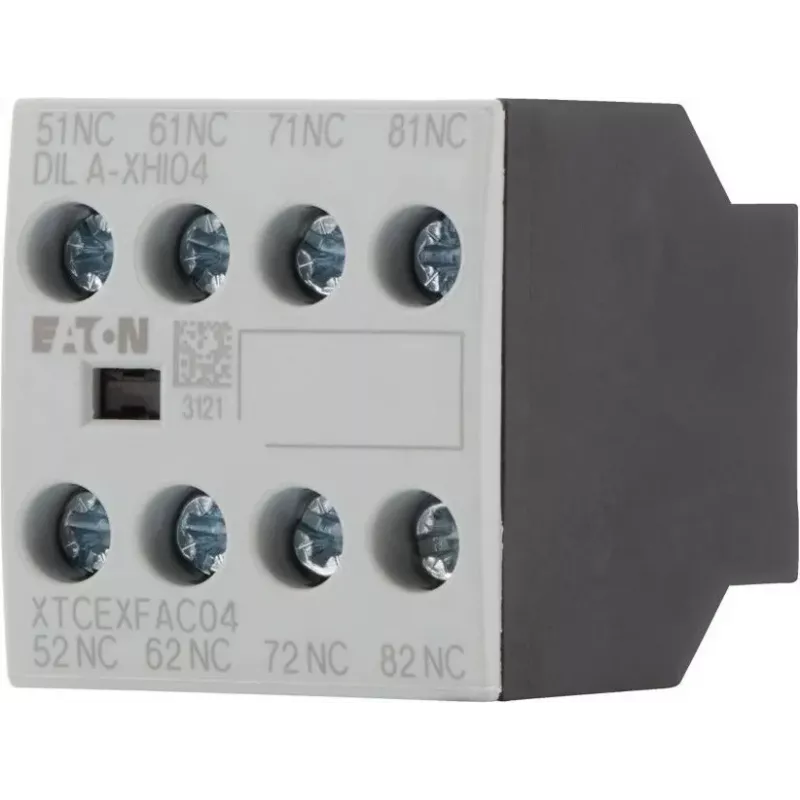

Eaton DILA-XHI04 bloque de contactos auxiliares, 4 polos, 2NO+2NC, montaje frontal, bornes de tornillo, negro/blanco 276424

Expand the functionality of Eaton DILM contactors with the DILA-XHI04 auxiliary contact block. This front-mounting unit adds four auxiliary contacts—two normally open and two normally closed—to provide reliable signaling and control in industrial applications. Its compact design (45 mm × 117 mm × 68 mm) and screw terminals ensure easy installation and secure wiring.

Who is it for

Electrical engineers, panel builders, and maintenance technicians who need to add auxiliary contacts to Eaton DILM contactors (sizes DILM7 to DILM38) for control circuits, status indication, or interlocking.

Main features

• 4-pole auxiliary contact block: 2 NO + 2 NC
• Front mounting for quick installation on compatible contactors
• Screw terminals for reliable wire connections
• Rated operational current: 6 A (AC-15, 230 V) and 10 A (DC-13, 24 V)
• Rated insulation voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Operating temperature range: -25 °C to 60 °C
• Degree of protection: IP20
• Colour: black and white

Specifications

• Series: DIL
• Product type: Auxiliary contact block
• Mounting type: Front mounting
• Number of poles: 4
• Contact configuration: 2 NO + 2 NC
• Compatibility: Eaton DILM contactors (DILM7 to DILM38)
• Rated operational current (AC-15, 230 V): 6 A
• Rated operational current (DC-13, 24 V): 10 A
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Operating temperature range: -25 to 60 °C
• Storage temperature range: -40 to 80 °C
• Terminal type: Screw terminals
• Degree of protection: IP20
• Standards compliance: IEC/EN 60947-5-1, VDE 0660
• Connection capacity (single conductor): 0.75 - 2.5 mm²
• Connection capacity (twin conductor): 0.75 - 2.5 mm²
• Colour: Black / White

Tips

Ensure the contactor is de-energized before mounting the auxiliary contact block. Use appropriate wire sizes within the specified connection capacity for secure termination. The block is designed for front mounting, simplifying installation in tight spaces.
