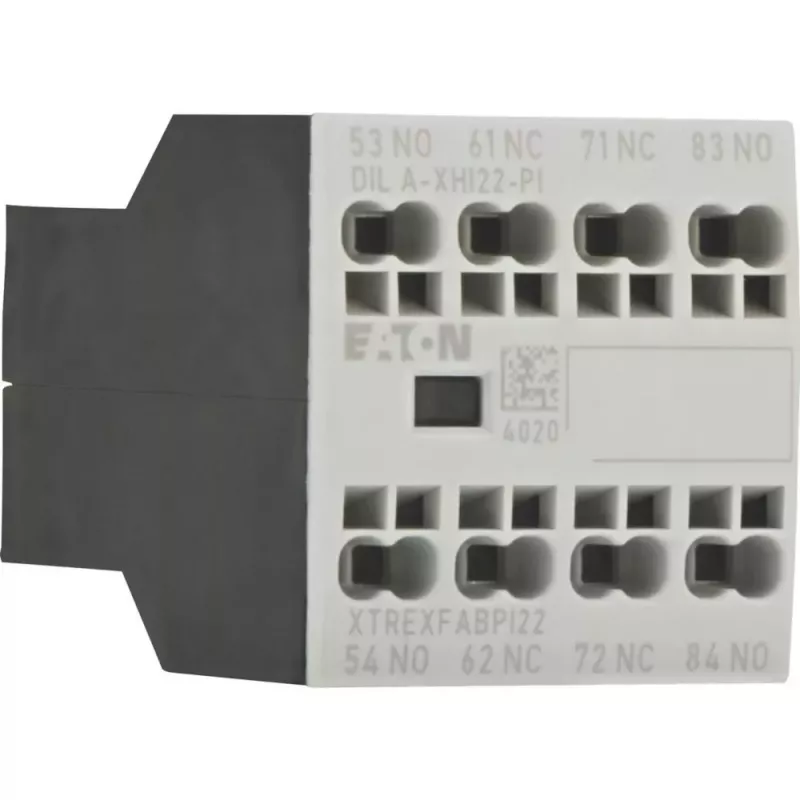

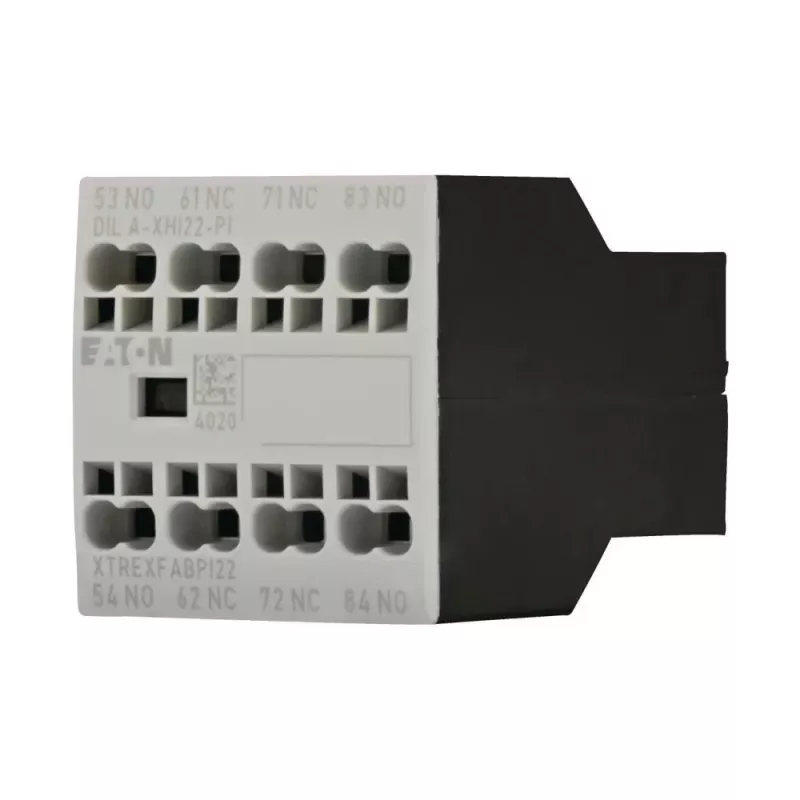

Eaton DILA-XHI22-PI Bloque de contacto auxiliar, 2NO+2NC, 4A, montaje frontal 199319

In industrial control panels, the Eaton DILA-XHI22-PI auxiliary contact block expands the signaling and interlocking capabilities of Eaton DILM contactors. It mounts directly onto the front of compatible contactors, providing two normally open and two normally closed contacts for control logic, status indication, or load switching in motor control circuits.

Key specifications

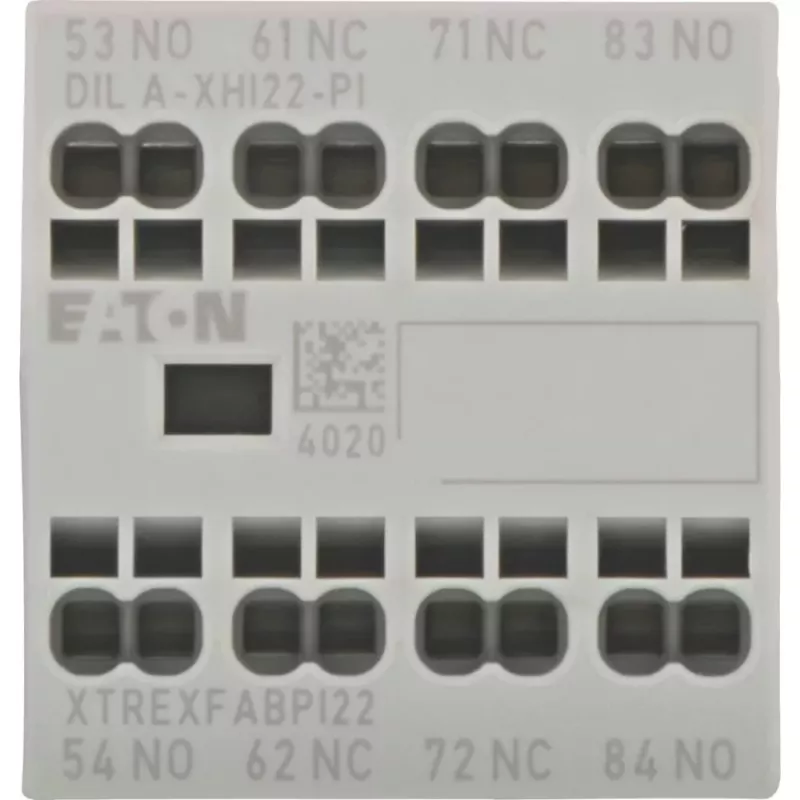

• Contact configuration: 2 normally open (NO) + 2 normally closed (NC)
• Rated operational current: 4 A at AC-15, 230 V; 1 A at DC-13, 220 V
• Rated insulation voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Mounting: front mounting on contactor
• Terminal type: screw terminals
• Degree of protection: IP20 (terminals)
• Operating temperature range: -25 to +60 °C
• Conductor cross-section: 0.75 to 2.5 mm² (solid or stranded)
• Mechanical durability: >10 million operations
• Electrical durability: >1 million operations
• Standards compliance: IEC/EN 60947-5-1

Why choose it

The DILA-XHI22-PI offers reliable auxiliary contact expansion with a compact design that integrates seamlessly with Eaton DILM contactors. Its combination of NO and NC contacts provides flexibility for both signaling and interlocking functions, while robust construction ensures long service life in demanding industrial environments.

Ideal use cases

• Motor control circuits requiring additional auxiliary contacts for status feedback
• Interlocking and safety circuits in industrial machinery
• Control panel builders needing a standardized contact block for Eaton contactor series DILM7 to DILM38, DILMP20, DILMP32, and DILMP45

Good to know

The block is designed for screw terminal connection and supports conductor cross-sections from 0.75 to 2.5 mm². It is rated for operation in ambient temperatures from -25°C to +60°C, making it suitable for a wide range of industrial applications.
