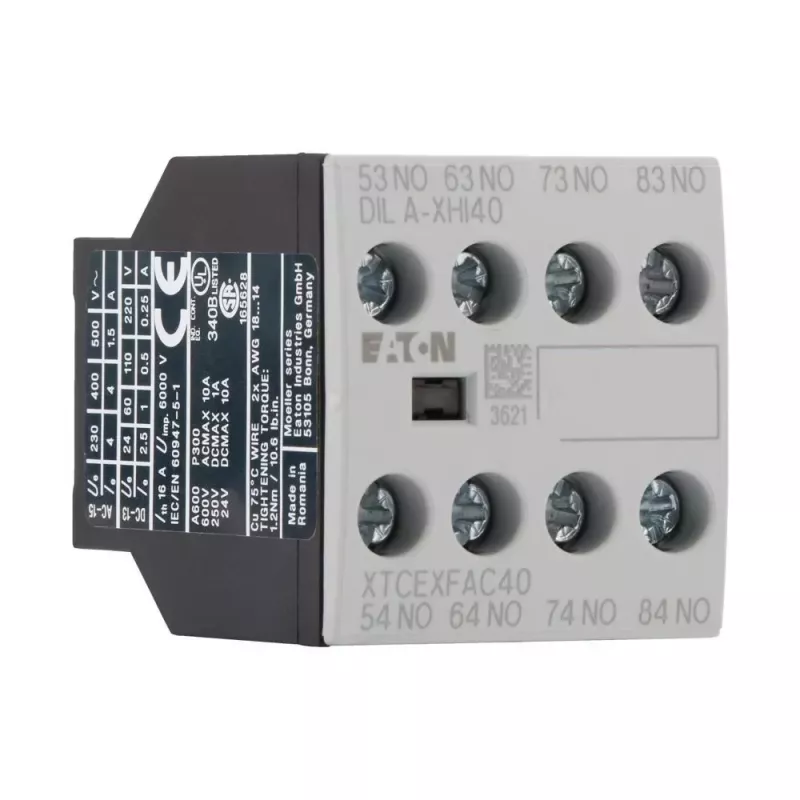

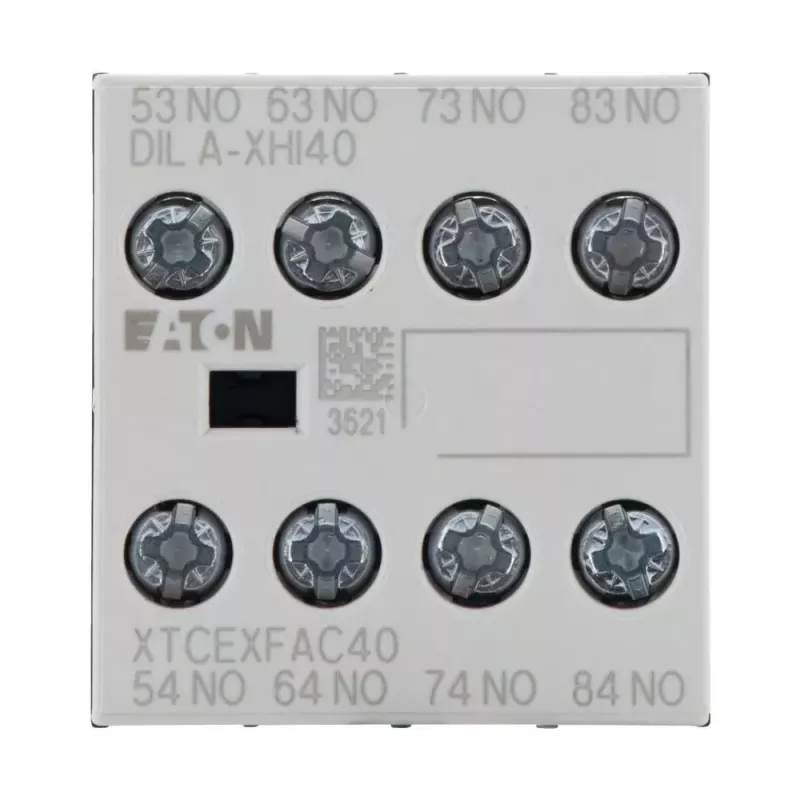

Eaton DILA-XHI40 bloque de contactos auxiliares, 4 NA, montaje frontal, bornes de tornillo, negro/blanco 276428

The Eaton DILA-XHI40 auxiliary contact block expands the functionality of DILM7 to DILM38 contactors with four normally open contacts, enabling reliable signal and control circuits. Its front mounting design and screw terminals simplify installation in industrial control panels.

Highlights

• 4 normally open (NO) contacts for versatile control
• Front mounting for easy access and wiring
• Screw terminals ensure secure connections
• Compatible with Eaton DILM7–DILM38 contactor series
• Rated for 4 A at AC-15 (230 V) and 0.15 A at DC-13 (220 V)

In daily use

This contact block is ideal for auxiliary signaling, interlocking, and control tasks in motor starters and automation systems. Its compact size (45 mm width, 117 mm height, 68 mm depth) fits standard enclosures, and the black/white color scheme integrates neatly with existing components.

Full specifications

• Contact configuration: 4 NO
• Number of poles: 4
• Mounting type: Front mounting
• Terminal type: Screw terminals
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (DC-13, 220 V): 0.15 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Operating temperature range: -25 to 60 °C
• Storage temperature range: -40 to 80 °C
• Standards: IEC/EN 60947-5-1, VDE 0660

Final note

A dependable choice for expanding contactor capabilities in demanding industrial environments.
