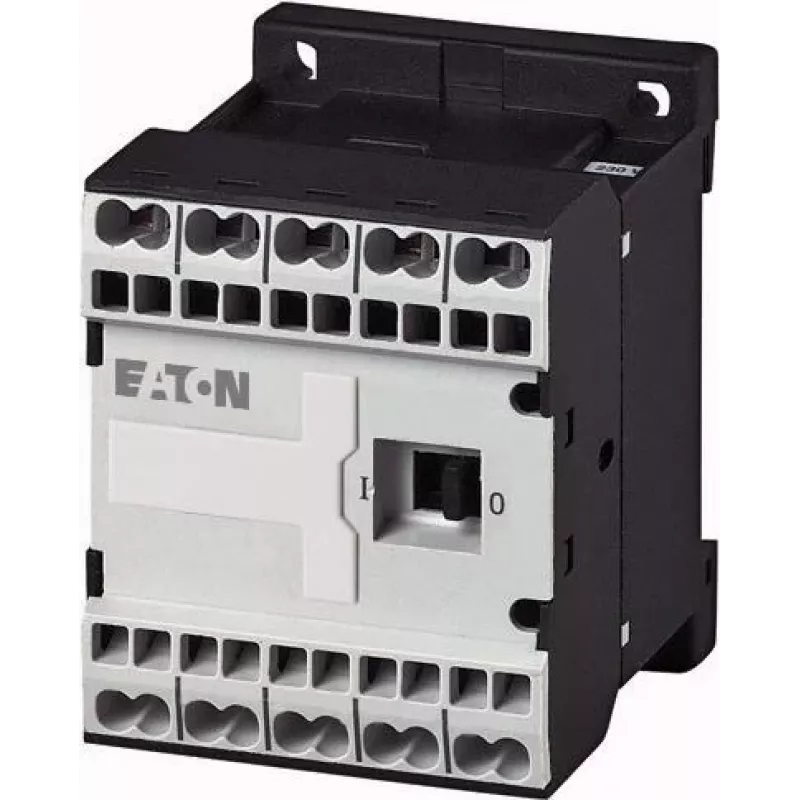

Eaton DILEM-01-G-C(24VDC) minicontactor, 3 polos, 1 NC, bobina 24 V DC, 9 A, 4 kW, IP20, negro/blanco 230167

Control motors and other loads in industrial control panels with the Eaton DILEM-01-G-C(24VDC) mini contactor. This 3-pole contactor features a 24 V DC coil and one normally closed auxiliary contact, making it suitable for switching three-phase motors up to 4 kW at 400 V AC. Its compact 45 mm width saves space on DIN rail or screw mounting, while screw terminals ensure secure wiring. The black and white housing provides clear visual identification in control cabinets.

Key specifications

• 3 main poles, 1 NC auxiliary contact
• Coil voltage: 24 V DC
• Rated operational current (AC-3, 400 V): 9 A
• Rated operational power (AC-3, 400 V): 4 kW
• Rated operational current (AC-1, 400 V): 20 A
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Degree of protection: IP20
• Mounting: DIN rail or screw
• Terminals: screw
• Operating temperature: -25 to +50 °C
• Mechanical life: 20 million operations
• Electrical life: 10 million operations

Why choose it

The DILEM series is known for reliability and compact design. With a wide operating temperature range and high mechanical durability, it suits demanding industrial environments. The DC coil allows direct control from PLC outputs or DC control circuits.

Ideal use cases

• Motor starting and stopping in small machines
• Heating and lighting control
• Building automation systems
• Replacement for older Eaton contactors

Good to know

This contactor complies with IEC/EN 60947. It is designed for use in control panels with IP20 protection, meaning it should be installed in an enclosure to prevent contact with live parts.
