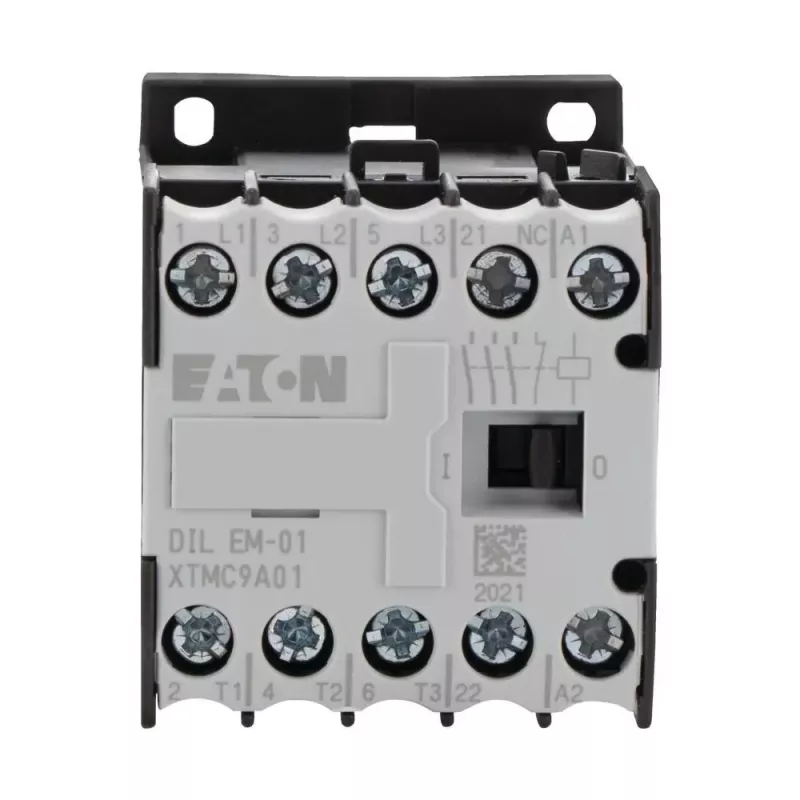

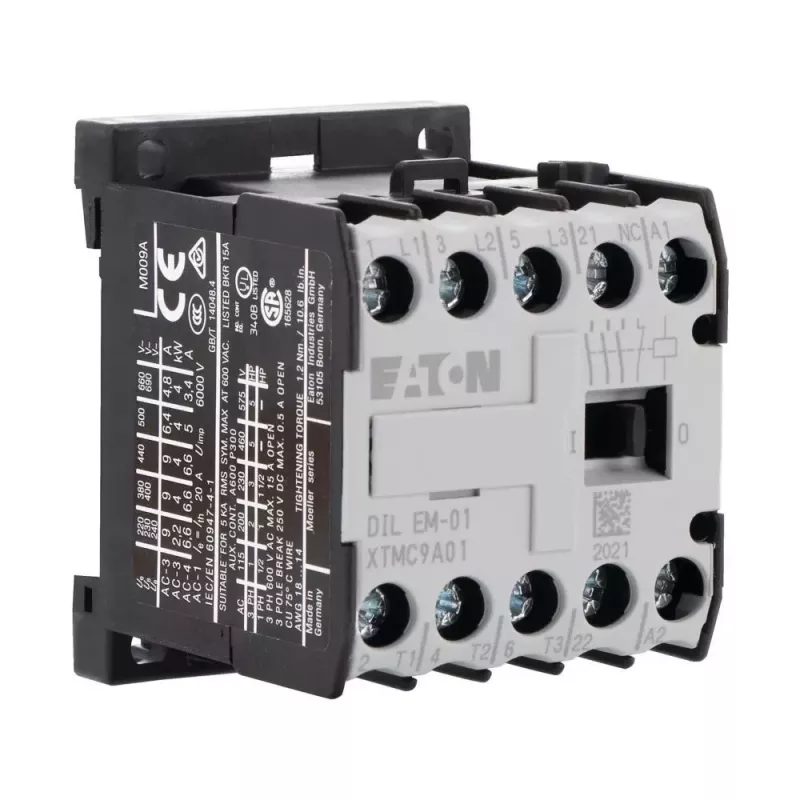

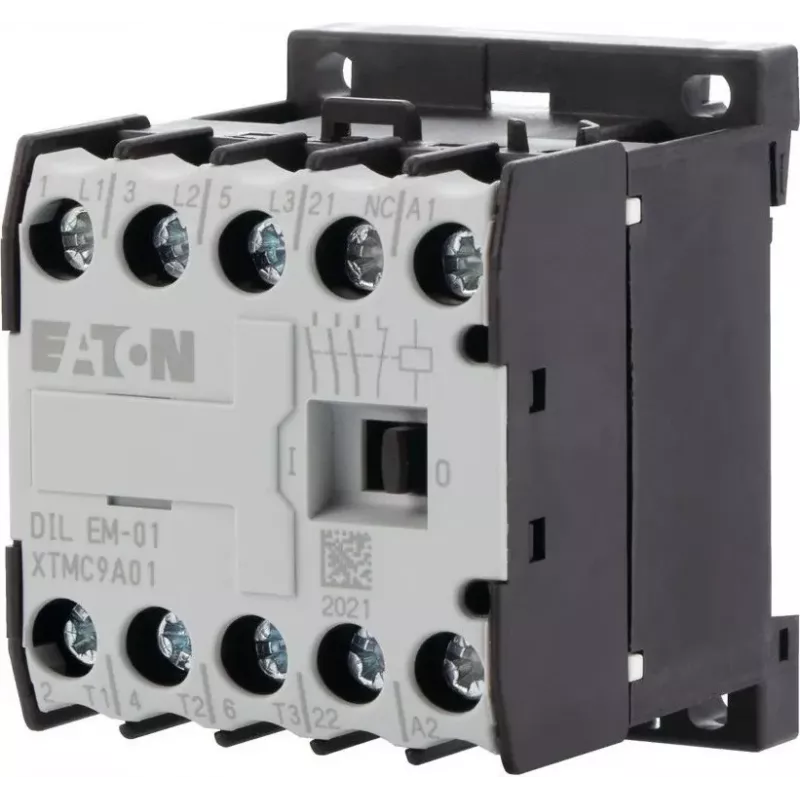

Eaton DILEM-01 minicontactor 3NO 24V AC 50Hz 9A 4kW IP20 010086

In industrial control panels and machine automation, switching small three-phase loads reliably without excessive space or cost is a persistent challenge. The Eaton DILEM-01 mini contactor addresses this directly, combining compact dimensions with dependable performance for motors up to 4 kW. Its 24 V AC coil at 50 Hz integrates seamlessly into standard control circuits, while the 3 NO main contacts and 1 NC auxiliary contact provide flexible switching and feedback options. With screw terminals, DIN rail or screw mounting, and an IP20 rating for protected environments, this contactor is built for straightforward installation and long service life.

Who is it for

This contactor is ideal for panel builders, maintenance technicians, and OEMs who need a compact, cost-effective solution for controlling small motors, heaters, or lighting loads in industrial and commercial applications. It suits installations where space is limited but reliability cannot be compromised.

Main features

• 3 main poles (3 NO) for three-phase switching up to 9 A (AC-3, 400 V)
• Built-in 1 NC auxiliary contact for control or status indication
• 24 V AC coil, 50 Hz, for standard control voltage compatibility
• Compact footprint: 45 mm width, 52 mm depth, 58 mm height
• DIN rail or screw mounting for flexible installation
• Screw terminals for secure wiring
• IP20 protection for use in enclosed panels
• High mechanical durability: 10 million operations
• Electrical durability: 1.5 million operations (AC-3)
• Wide operating temperature range: -25 °C to +50 °C

Specifications

• Brand: Eaton
• Model: DILEM-01(24V50HZ)
• MPN: 010086
• EAN: 4015080100867
• Product type: Mini contactor
• Number of poles: 3
• Main contact configuration: 3 NO
• Auxiliary contact configuration: 1 NC
• Coil voltage: 24 V AC
• Coil frequency: 50 Hz
• Rated operational current (AC-3, 400 V): 9 A
• Rated operational power (AC-3, 400 V): 4 kW
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Overvoltage category: III
• Mechanical durability: 10 x 10^6 operations
• Electrical durability: 1.5 x 10^6 operations (AC-3)
• Mounting type: DIN rail / screw mounting
• Terminal type: Screw terminals
• IP protection rating: IP20
• Ambient operating temperature: -25 °C to +50 °C
• Standards: IEC/EN 60947
• Colour: Black/White

Tips

Ensure the control circuit supplies 24 V AC at 50 Hz to match the coil. Mount the contactor in an enclosure rated at least IP20 to protect against dust and accidental contact. For motor loads, verify that the motor's full-load current does not exceed 9 A under AC-3 utilization category. Use appropriate wire sizes for screw terminals and torque to manufacturer specifications to maintain reliable connections.
