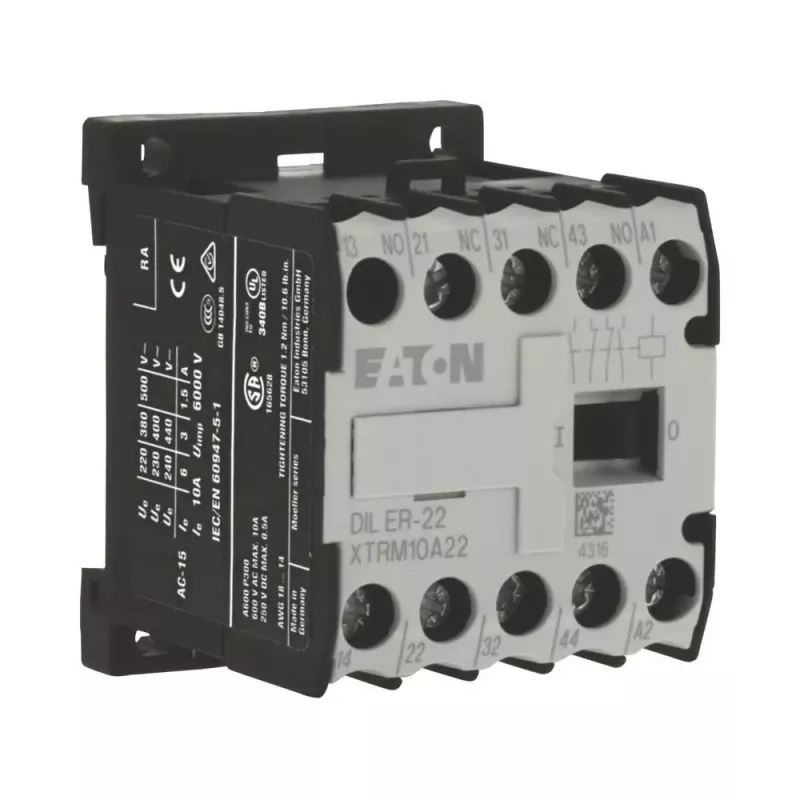

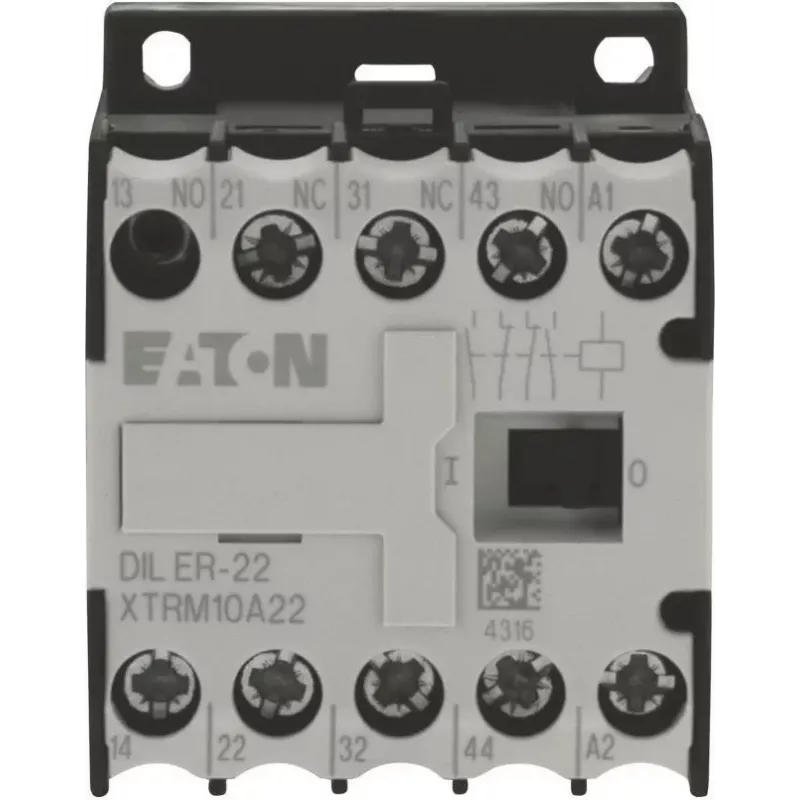

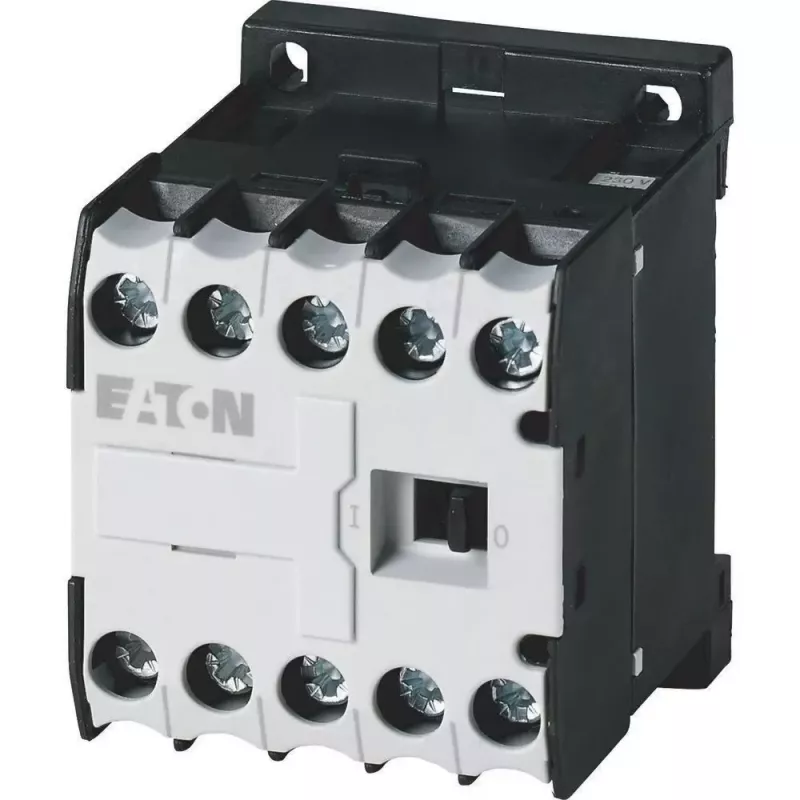

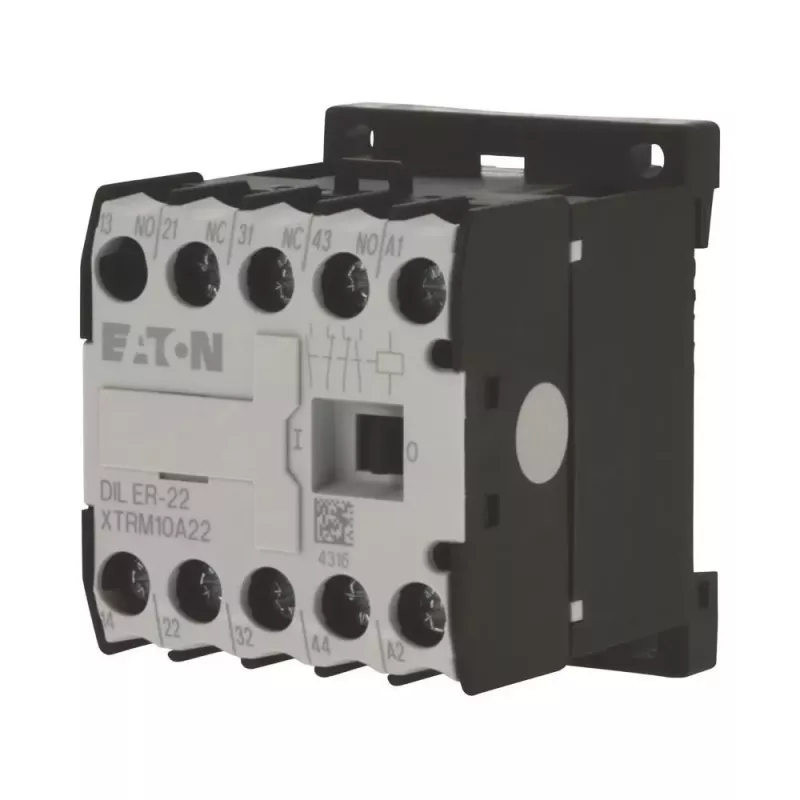

Eaton DILER-22-G(24VDC) minicontactor, 4 polos, 2NO+2NC, bobina 24V DC 010042

In industrial control panels, reliable switching of auxiliary circuits is critical. The Eaton DILER-22-G(24VDC) mini contactor solves this by providing a compact, four-pole solution with two normally open and two normally closed contacts, driven by a 24 V DC coil. It is ideal for control tasks, interlocking, and signal multiplication in machine building and panel construction.

Who is it for

This contactor is designed for electrical engineers, panel builders, and maintenance technicians who need a space-saving, dependable control relay for DC control circuits. It suits applications in automation, HVAC, and material handling where DIN rail mounting and screw terminals are standard.

Main features

• Integrated 4-pole contact configuration: 2 NO + 2 NC, eliminating the need for additional auxiliary contact blocks.
• 24 V DC coil with low power consumption (2.5 W pull-in and holding), reducing heat and energy use.
• Compact DILER series design, saving valuable panel space.
• Screw terminals for secure, maintenance-friendly wiring.
• High electrical life: 1.3 million operations at AC-15, 230 V, ensuring long service.
• Compliant with IEC/EN 60947, VDE 0660, UL, and CSA standards for global acceptance.

Specifications

• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (DC-13, 24 V): 1 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting: DIN rail or screw mounting
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Mechanical life: 10 million operations
• Short-circuit protection: fuse 10 A gG/gL

Tips

For optimal performance, ensure the control voltage is stable within the rated range. Use appropriate fusing for the contacts to protect against short circuits. When mounting on DIN rail, allow adequate spacing for heat dissipation and wiring access. This contactor can be used in combination with other DILER accessories for expanded functionality.
