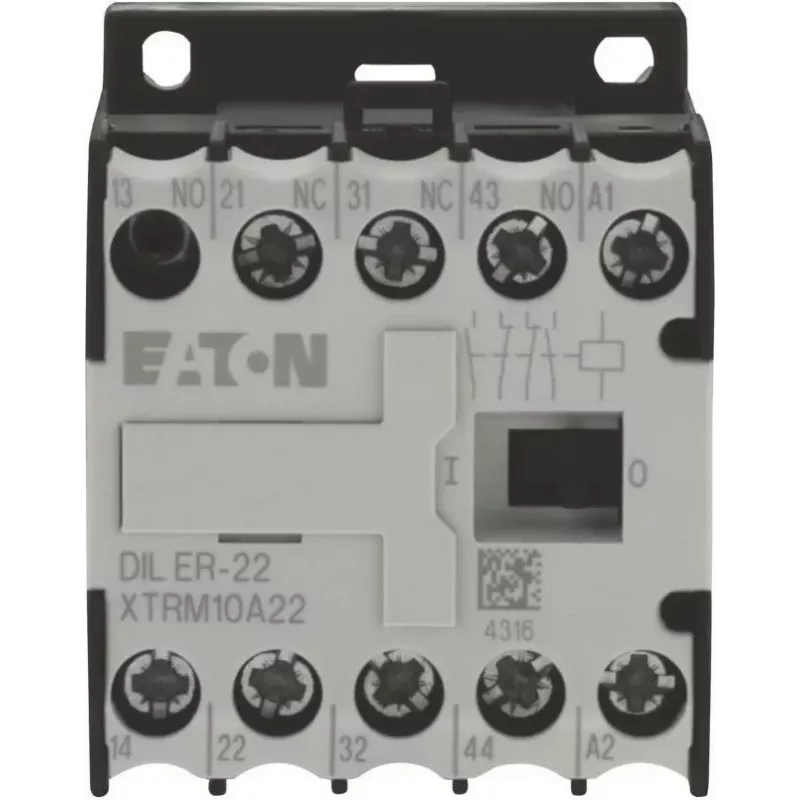

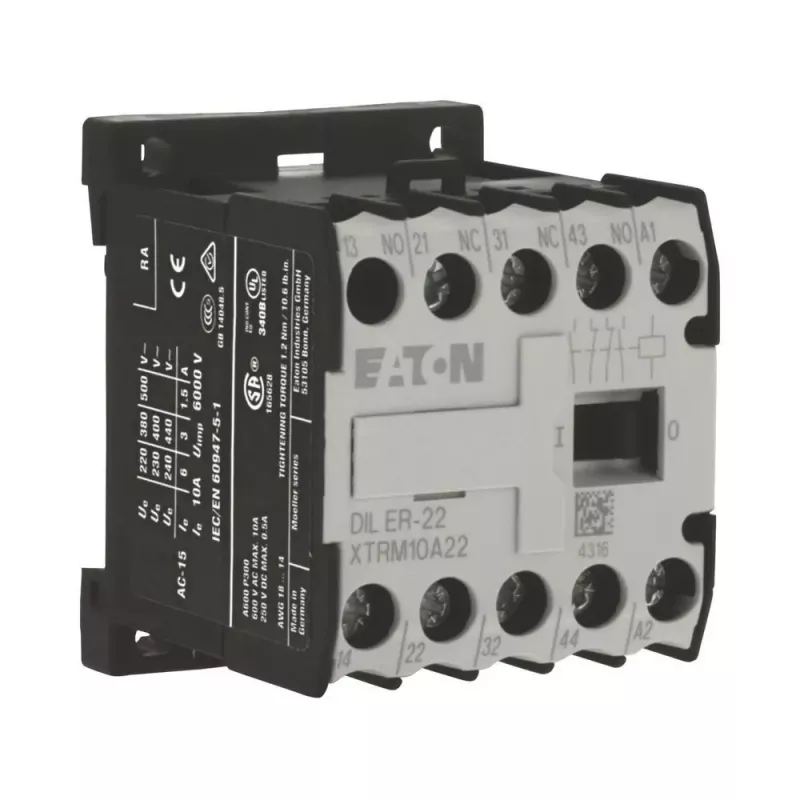

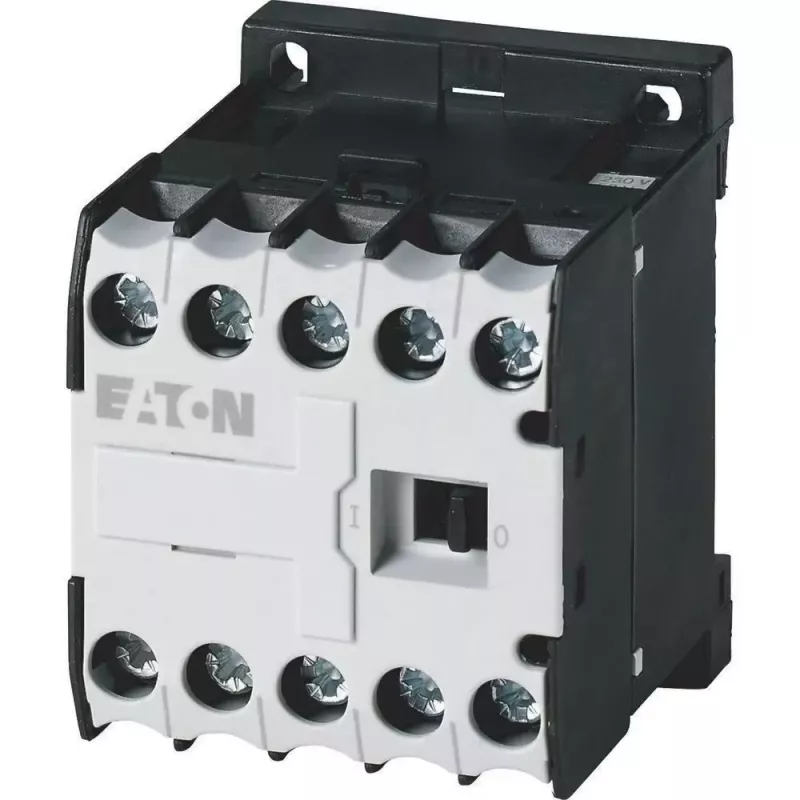

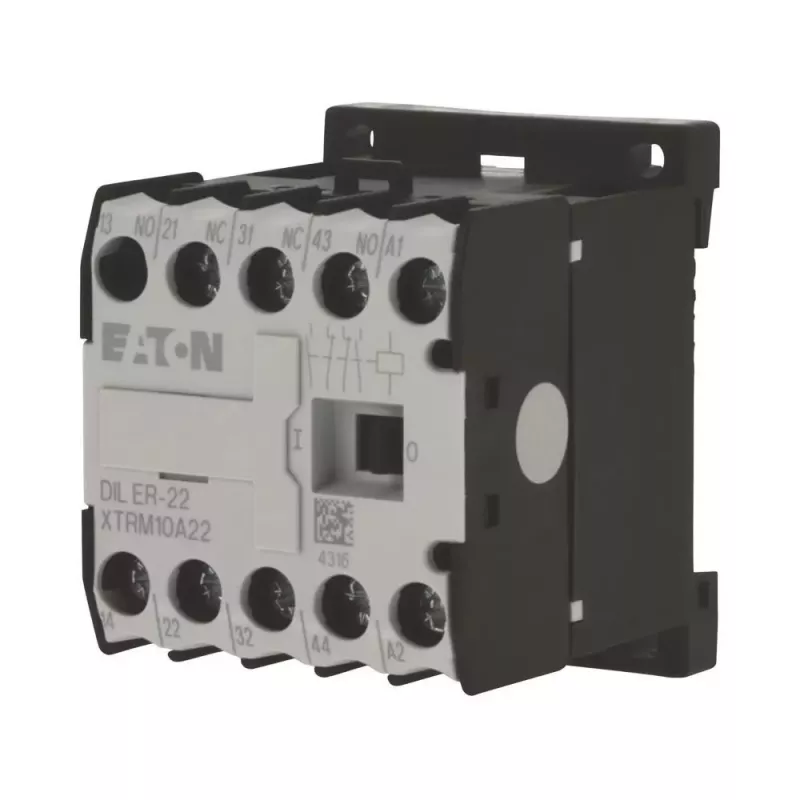

Eaton DILER-22 minicontactor, 4 polos, 2NO+2NC, bobina 24 V AC 010344

The Eaton DILER-22 is a 4-pole mini contactor with a 24 V AC coil, engineered for reliable switching of auxiliary and control circuits. Its compact design and 2 normally open plus 2 normally closed contacts make it ideal for space-restricted applications requiring versatile control logic.

Advantages

High mechanical and electrical endurance ensure long service life. The contactor mounts easily on DIN rail or with screws, and screw terminals provide secure wiring. Its coil operates at 50 Hz, matching standard industrial power networks.

Suitable for

• Control circuit switching in industrial machinery
• Auxiliary contact expansion for larger contactors
• Automation panels and motor control centers
• HVAC and pump control systems

Key specifications

• Coil voltage: 24 V AC, 50 Hz
• Contact configuration: 2 NO + 2 NC
• Rated operational current: 4 A at 230 V AC-15
• Rated insulation voltage: 690 V
• Mechanical durability: 10 million operations
• Electrical durability: 1.5 million operations

Recommendations

For reliable auxiliary switching in compact control systems, the DILER-22 offers proven Eaton quality with a versatile contact arrangement.
