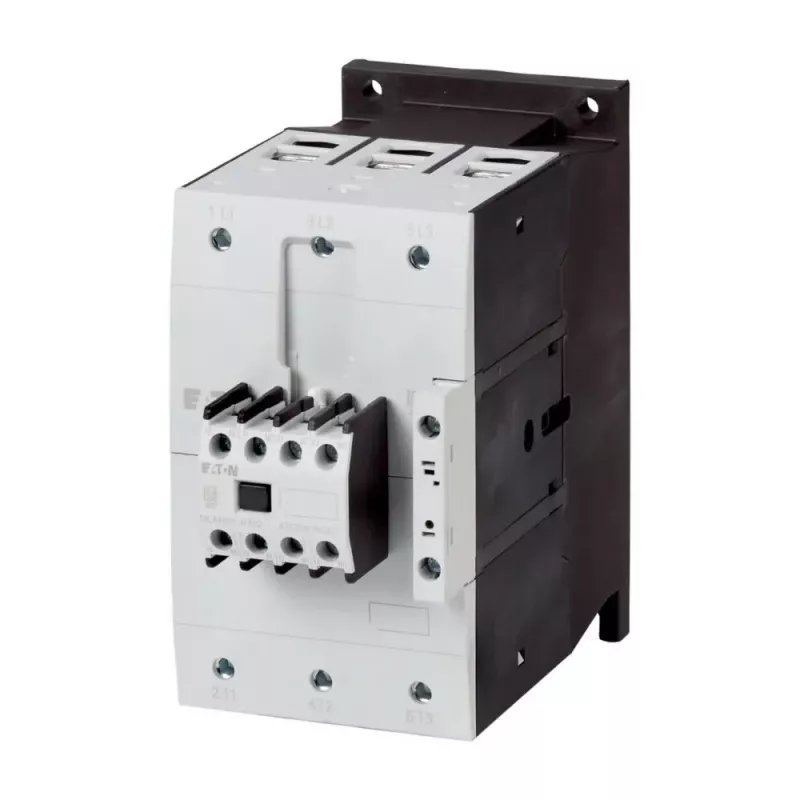

Eaton DILM115-22(RAC240) contactor de potencia, 3 polos, 115 A, bobina 240 V AC, 2NO+2NC, IP00 239578

Industrial control panels and motor control centers rely on the Eaton DILM115-22(RAC240) power contactor to switch three-phase loads up to 115 A at 400 V AC-3. This contactor is used by panel builders and maintenance engineers in manufacturing plants, HVAC systems, and pumping stations where reliable motor starting and stopping is critical.

Key specifications

• Contactor type: Power contactor, 3-pole
• Rated operational current AC-3, 400 V: 115 A
• Rated operational current AC-1, 690 V: 160 A
• Coil voltage: 240 V AC, 50/60 Hz
• Auxiliary contacts: 2 NO + 2 NC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 8 kV
• Degree of protection: IP00
• Mounting: DIN rail or screw mounting
• Terminal type: Screw terminals
• Ambient operating temperature: -25 to +60 °C
• Electrical life (AC-3): 1.5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations
• Standards: IEC/EN 60947, VDE 0660, UL, CSA
• Colour: Black / White

Why choose it

The DILM115-22(RAC240) combines high switching capacity with a compact footprint, making it suitable for demanding motor control applications. Its 2 NO and 2 NC auxiliary contacts provide flexibility for control and signalling circuits, while the screw terminals ensure secure wiring in industrial environments.

Ideal use cases

• Motor starting and stopping in conveyor systems
• HVAC compressor and fan control
• Pump control in water treatment facilities
• Heating and lighting load switching

Good to know

The contactor is designed for use in control panels with appropriate protection against direct contact, as it is rated IP00. It complies with international standards and can be mounted on standard DIN rail or screwed directly to a backplate.
