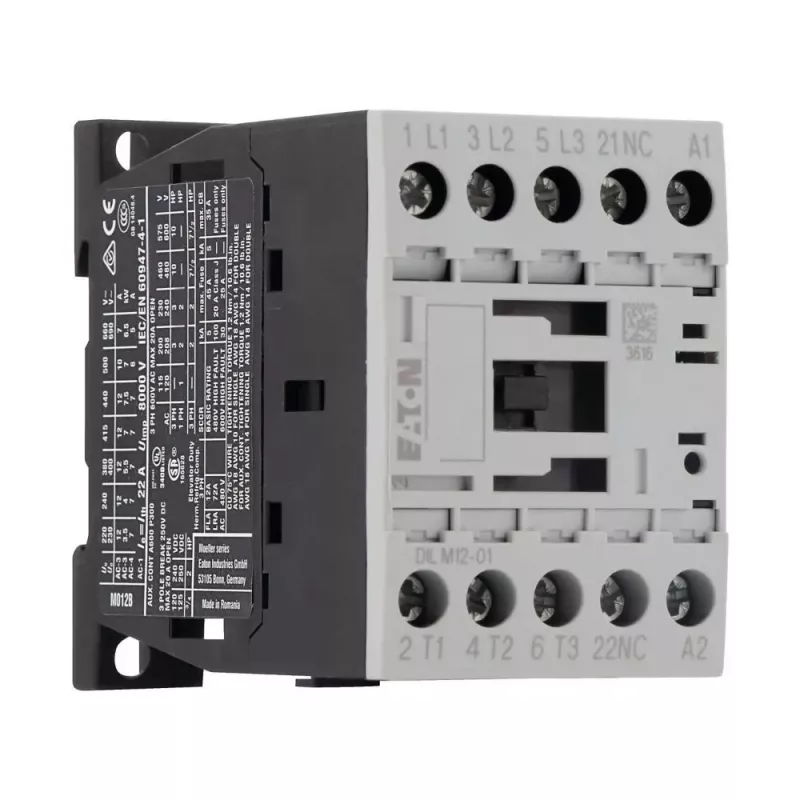

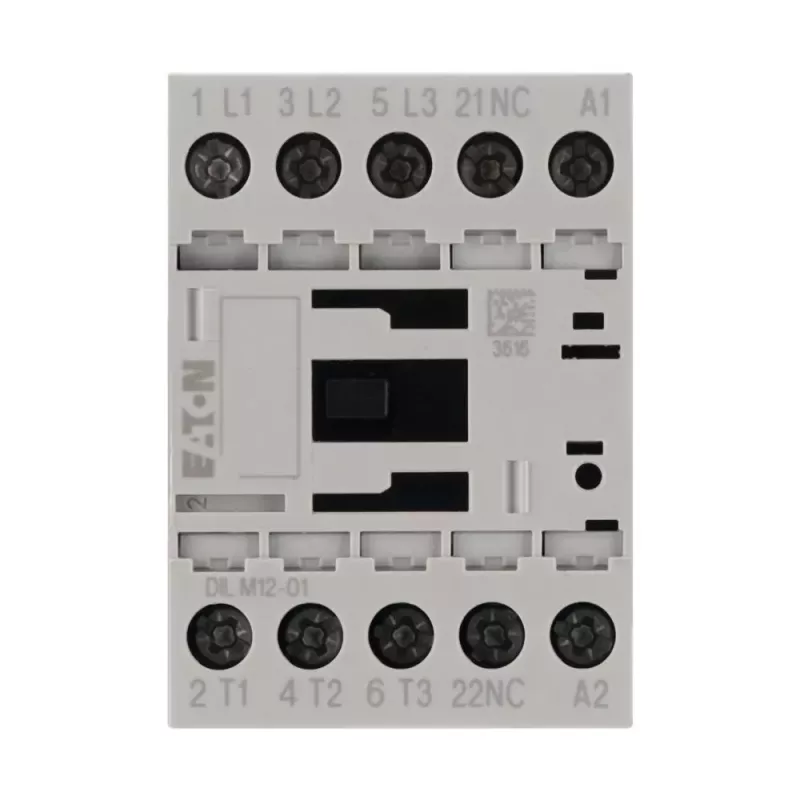

Eaton DILM12-01 contactor de motor de 3 polos, bobina 230 V AC / 240 V AC, 12 A, 1 contacto auxiliar NC 276865

Industrial motor control requires reliable switching under load, and the Eaton DILM12-01 contactor delivers exactly that. This 3-pole contactor is built to handle motor starting and stopping in demanding environments, with a 12 A AC-3 rating at 400 V and a coil that accepts 230 V AC at 50 Hz or 240 V AC at 60 Hz.

Who is it for

Panel builders, maintenance engineers, and machine OEMs who need a compact, DIN-rail mountable contactor for motors up to 5.5 kW. It suits conveyors, pumps, fans, and other industrial loads requiring frequent switching.

Main features

• 3 main poles, normally open (NO)
• 1 built-in auxiliary contact, normally closed (NC)
• Coil voltage: 230 V AC (50 Hz) / 240 V AC (60 Hz)
• Rated operational current: 12 A (AC-3, 400 V)
• Rated operational power: 5.5 kW (AC-3, 400 V)
• Rated insulation voltage: 690 V
• Screw terminals for secure wiring
• Mounts on 35 mm DIN rail or with screws

Specifications

• Number of poles: 3
• Auxiliary contacts: 1 NC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational voltage (Ue): 690 V
• Degree of protection: IP20
• Electrical durability (AC-3): 1.5 × 10⁶ operations
• Mechanical durability: 10 × 10⁶ operations
• Ambient operating temperature: -25 to +60 °C
• Standards: IEC/EN 60947, VDE 0660, UL, CSA

Tips

Check coil voltage compatibility before installation. For frequent switching, consider the electrical durability rating. Always follow local wiring regulations and use appropriate short-circuit protection.
